(H) Clock

  1. Remove screws, push clock frontward.
  2. Push pawl of cluster lid C lower from back of instrument panelwith clip clamp remover, and remove cluster lid C lower.
  3. Remove clock. Refer to "CLOCK ".

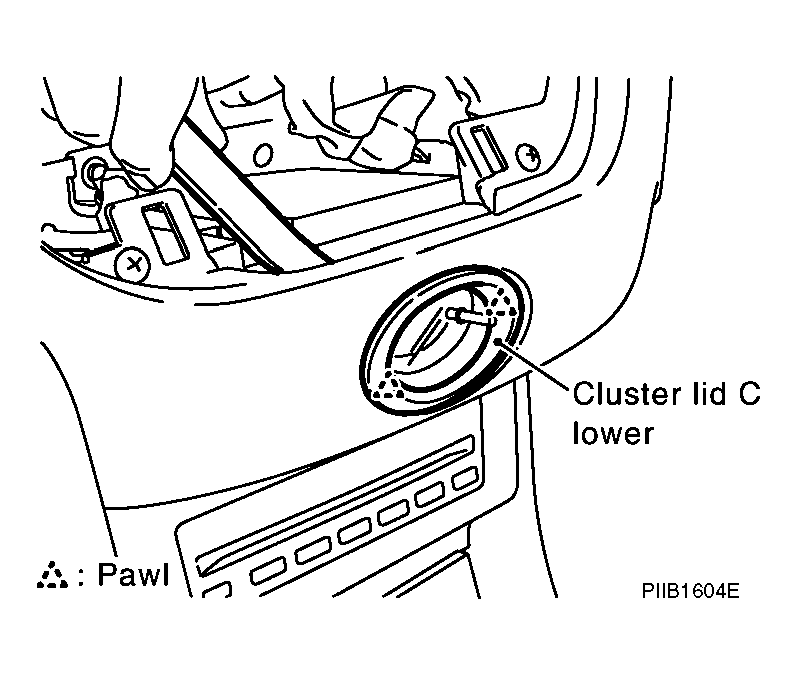

    Fig 1: Removing Cluster Lid C Lower
    G04130064Courtesy of NISSAN MOTOR CO., U.S.A.
