Removal and Installation of Glove Box Assembly: Removal

• When removing glove box assembly, take steps in Fig 1 shown by the number below.

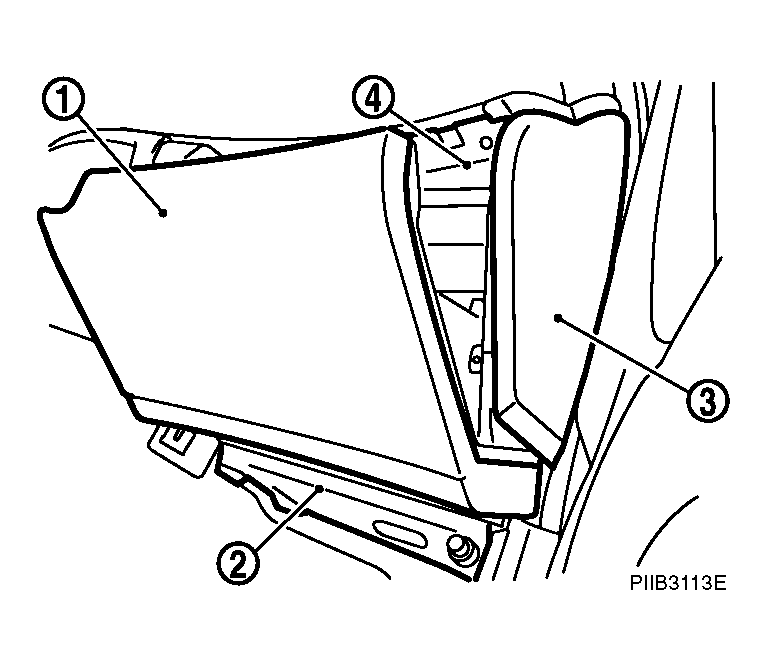

Fig 1: Identifying Steps For Removing Glove Box Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove glove box.
   • Remove damper pin to left side.
   Fig 2: Identifying Glove Box

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove instrument passenger lower cover.
   • Disconnect harness connector.
3. Remove instrument side finisher.
   • Insert a remover into lower space.
4. Remove glove box cover with power tool.
