Removal and Installation of Cluster Lid C: Removal

Remove cup holder.
- Backside pull up.
Fig 1: Identifying Cup Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove switch finisher.
- Disconnect harness connector.
Remove A/T console finisher.
- Place the selector lever in "D" position.
- Remove selector lever knob. Refer to "CONTROL DEVICE REMOVAL AND INSTALLATION ".
- Lift up backside and pull back.
- Disconnect harness connector.

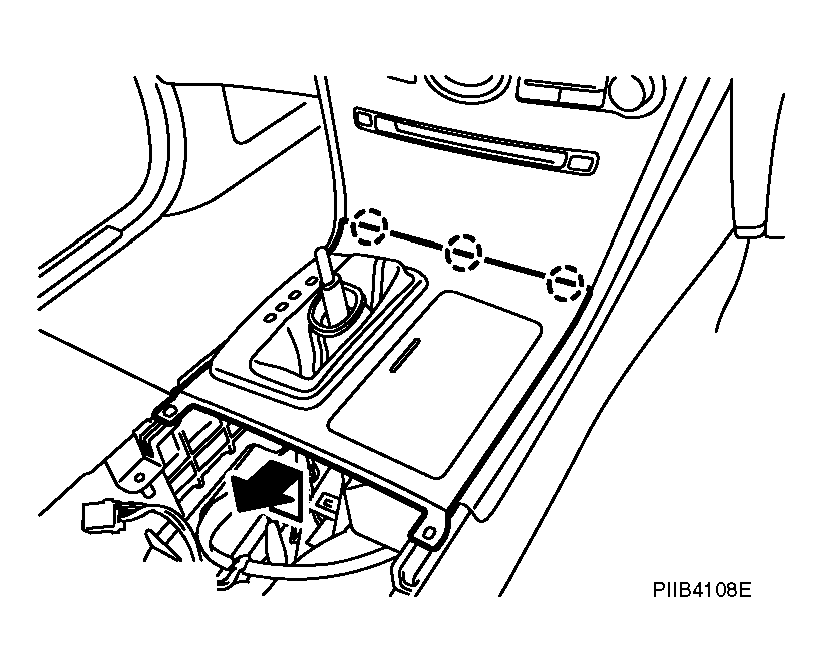

Fig 2: Identifying A/T Console Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove cluster lid C.
- Pull back.
- Disconnect harness connector.

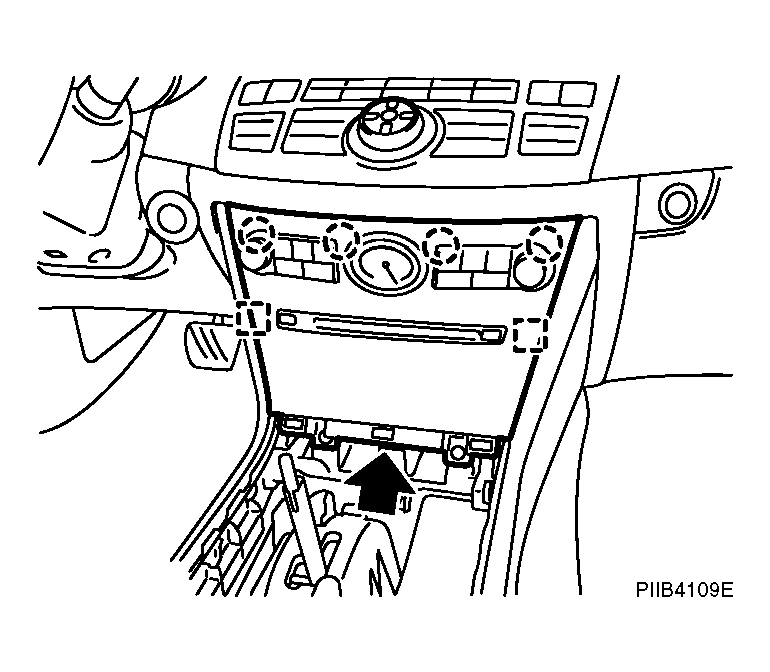

Fig 3: Identifying Cluster Lid C
Courtesy of NISSAN MOTOR CO., U.S.A.
