Removal and Installation of Cluster Lid C: Notes

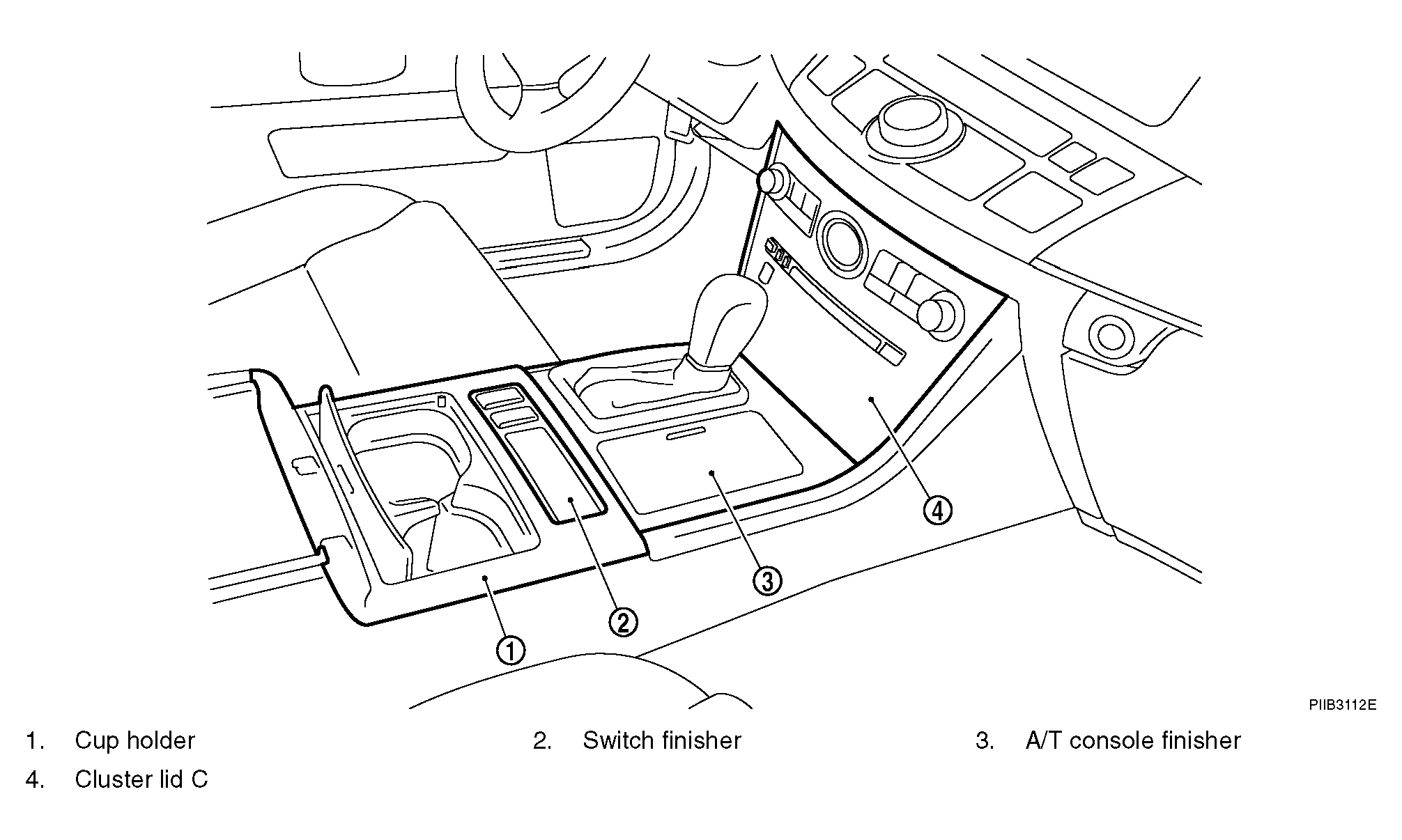

Fig 1: Identifying Cluster Lid C

Courtesy of NISSAN MOTOR CO., U.S.A.

• When removing cluster lid C assembly, take steps in Fig 1 shown by the number below.
• CIRCLE: Pawl
• TRIANGLE: Clip
• SQUARE: Metal clip
