Removal and Installation of Cluster Lid A: Removal

1. Remove instrument side finisher.
   • Insert a remover into lower space.

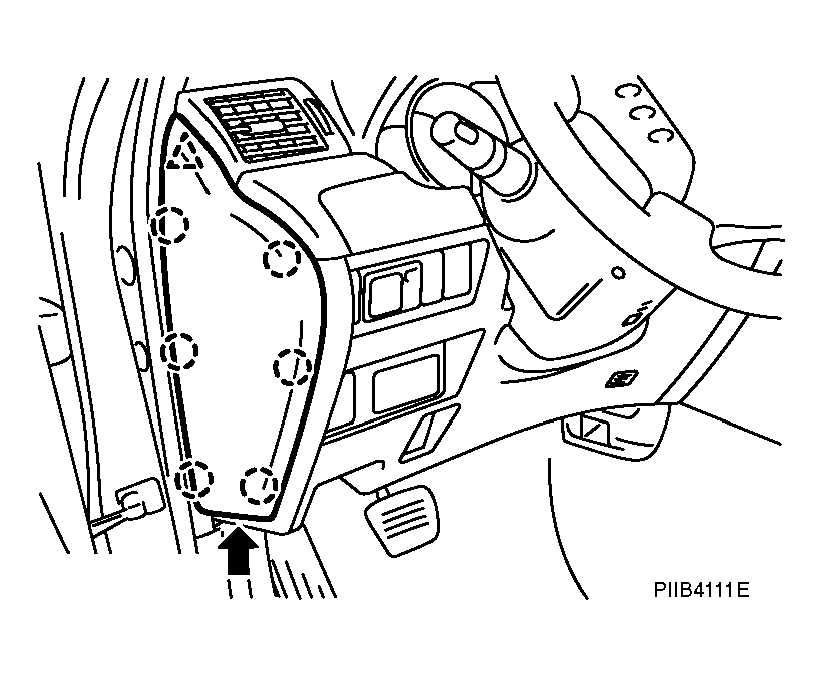

   Fig 1: Identifying Instrument Side Finisher

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove instrument driver lower panel.
   • Remove hood opener mounting bolt. Refer to "REMOVAL AND INSTALLATION OF HOOD LOCK CONTROL ".
   • Pull back.
   • Disconnect harness connector.

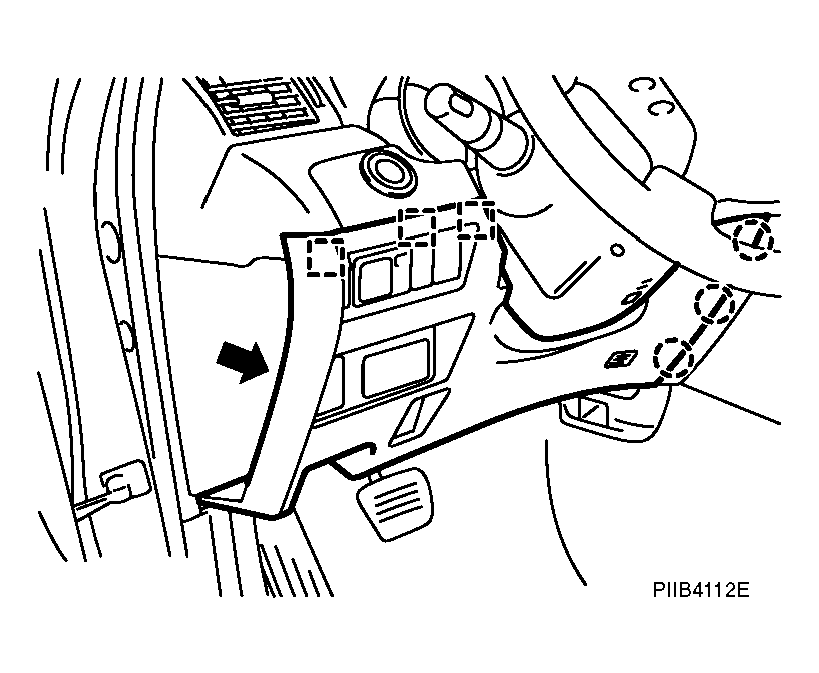

   Fig 2: Identifying Instrument Driver Lower Panel

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove instrument finisher A.
   • Insert a remover into upper space.

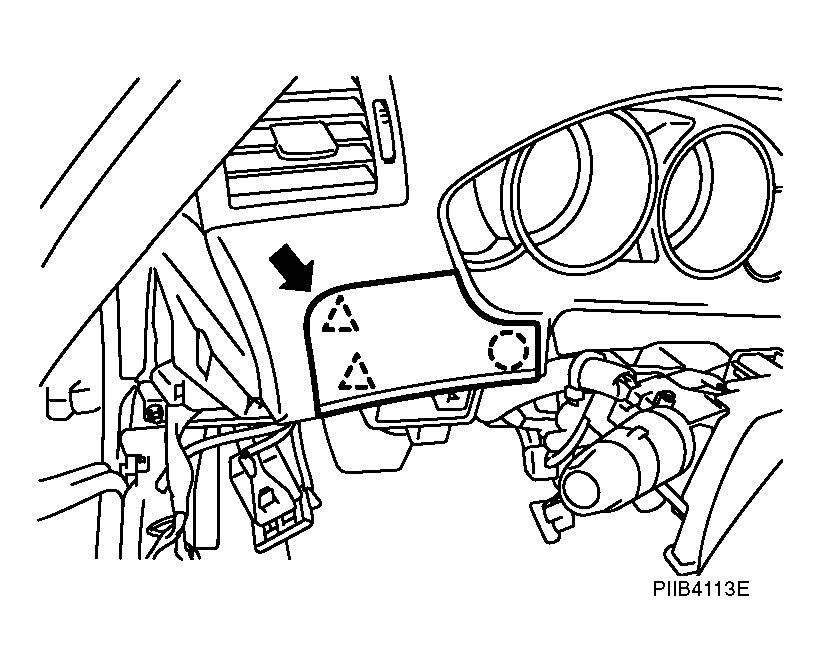

   Fig 3: Identifying Instrument Finisher A

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove instrument finisher C.
   • Insert a remover into upper space.

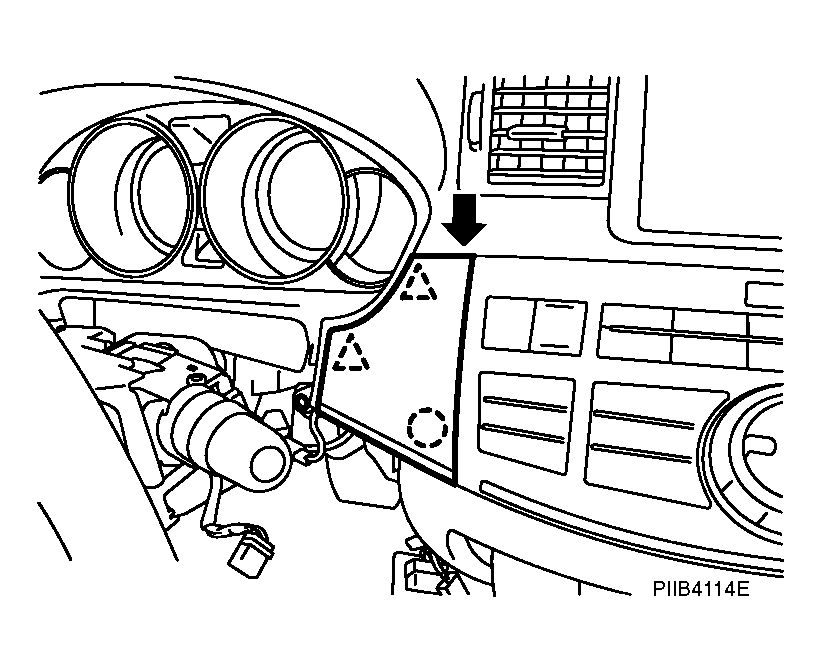

   Fig 4: Identifying Instrument Finisher C

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove cluster lid A.

• Pull back.

Fig 5: Identifying Cluster Lid A

Courtesy of NISSAN MOTOR CO., U.S.A.
