Removal and Installation of Cluster Lid A: Notes

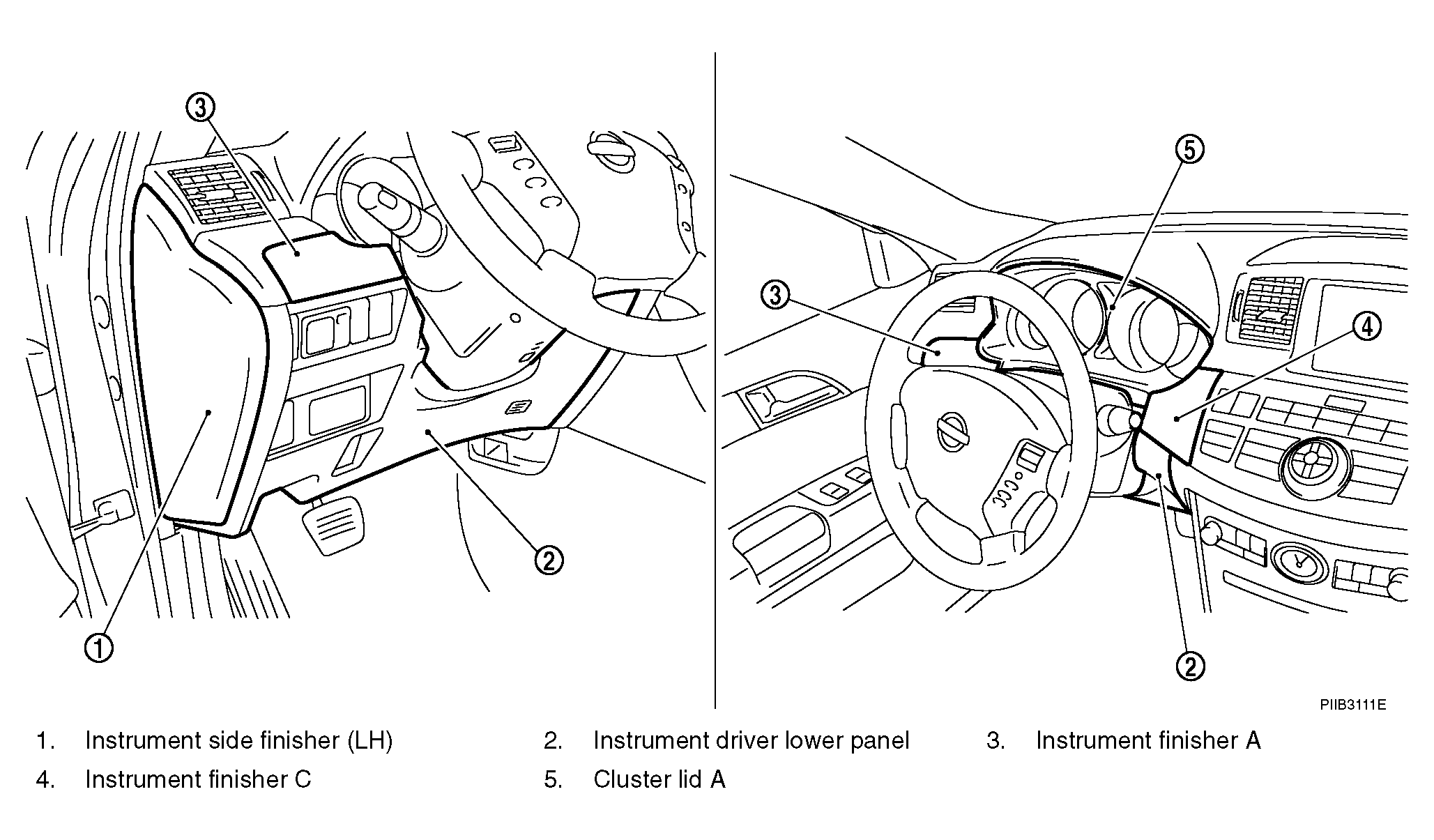

Fig 1: Identifying Cluster Lid A

Courtesy of NISSAN MOTOR CO., U.S.A.

• When removing cluster lid A assembly, take steps in Fig 1 shown by the number below.
• CIRCLE: Pawl
• TRIANGLE: Clip
• SQUARE: Metal clip
