BCM - Operation Table of Combination Switches

BCM reads operation status of combination switch using combinations shown in table below.

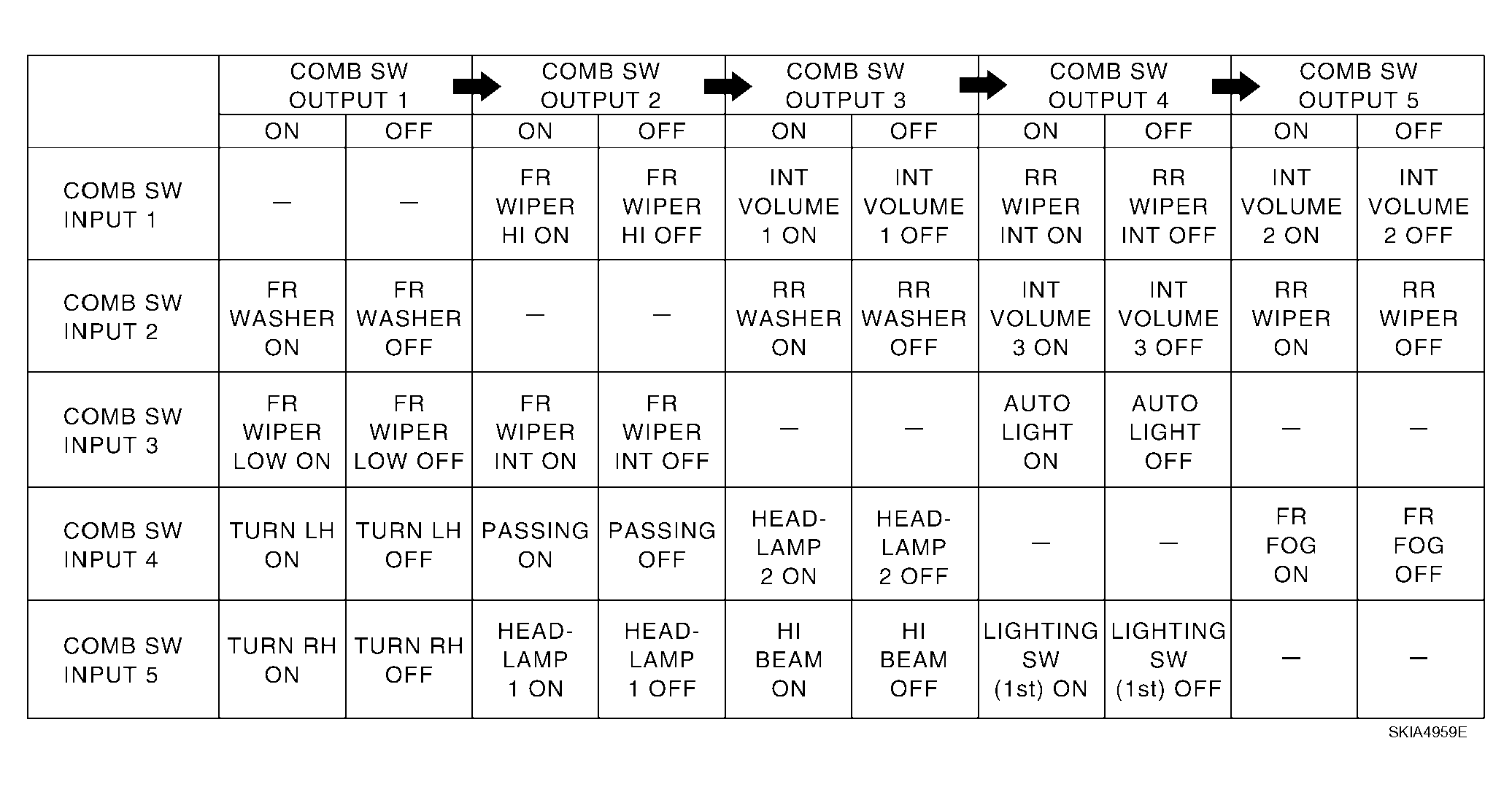

Fig 1: BCM - Operation Chart Of Combination Switches
G04078660Courtesy of NISSAN MOTOR CO., U.S.A.
