Identification Stamp Of Replacement Frequency Of Front Oil Seal

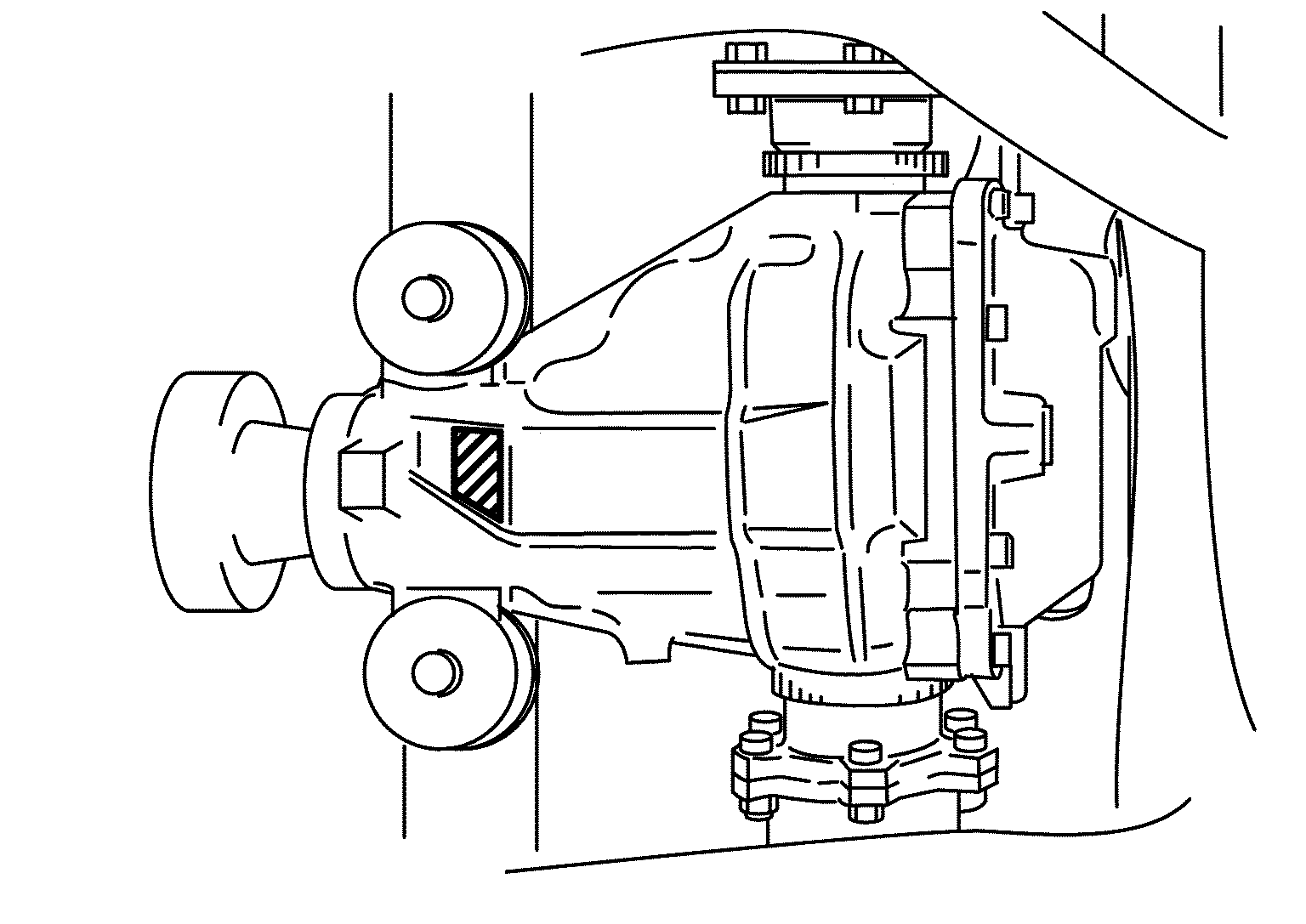

- The diagonally shaded area in the figure shows stamping point for replacement frequency of front oil seal.
- The following table shows if collapsible spacer replacement is needed before replacing front oil seal.
When collapsible spacer replacement is required, disassemble final drive assembly to replace collapsible spacer and front oil seal. Refer to "DISASSEMBLY AND ASSEMBLY ".
STAMP REFERENCEStamp collapsible spacer replacement No stamp Not required "0" or "0" on the far right of stamp Required "01" or "1" on the far right of stamp Not required Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Be sure to make a stamping after replacing front oil seal. - After replacing front oil seal, make a stamping on the stamping point in accordance with the table below in order to identify replacement frequency.
CAUTION:
Stamping shall be made from left to right.
STAMPING SHALL
| Stamp before stamping | Stamping on the far right | Stamping |
|---|---|---|
| No stamp | 0 | 0 |
| "0" (Front oil seal was replaced once.) |
1 | 01 |
| "01" (Collapsible spacer and front oil seal were replaced last time.) |
0 | 010 |
| "0" is on the far right. (Only front oil seal was replaced last time.) |
1 | ...01 |
| "1" is on the far right. (Collapsible spacer and front oil seal were replaced last time.) |
0 | ...010 |
