Parking Brake Shoe: Components

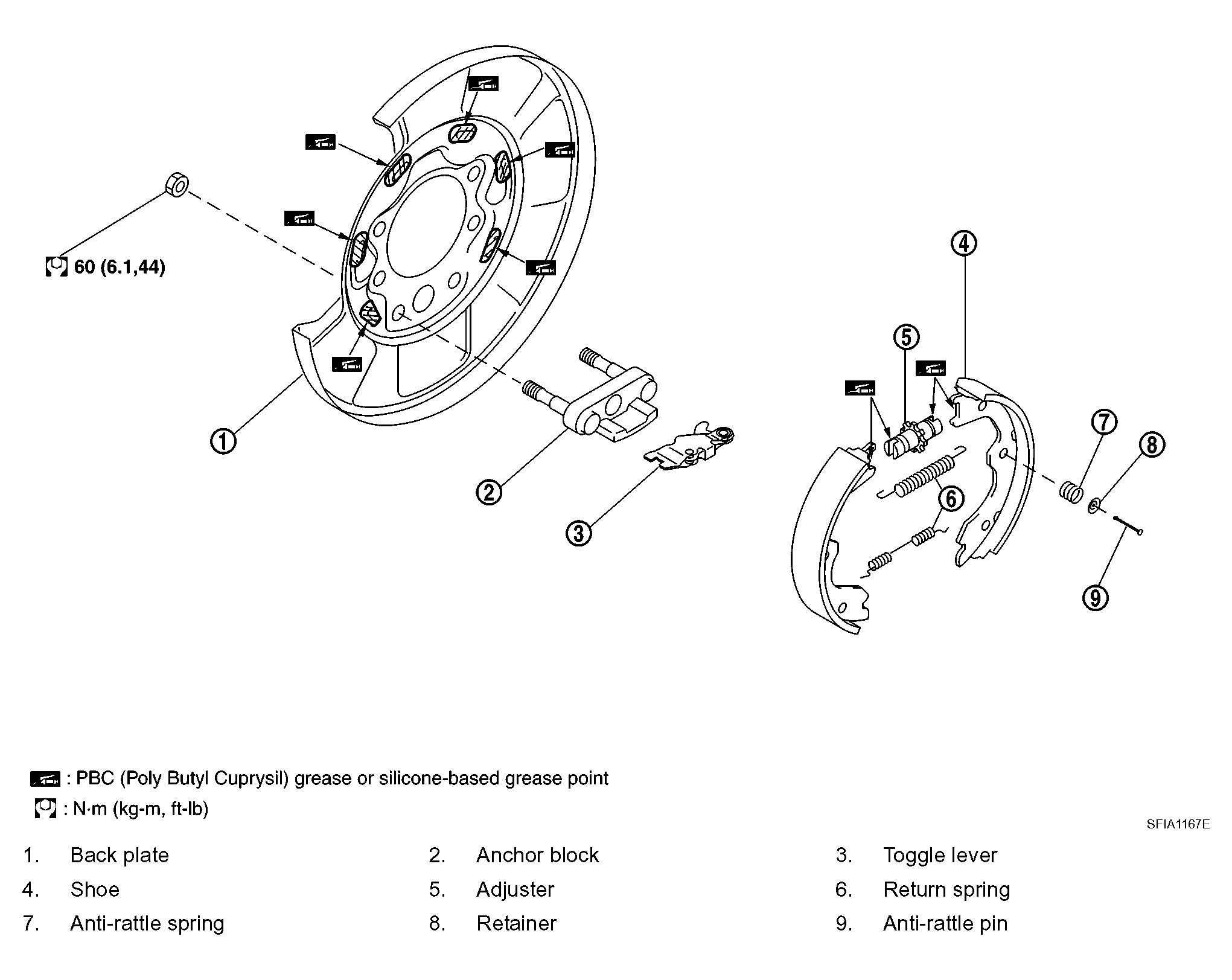

Fig 1: Exploded View Of Parking Brake Shoe Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
