Wiring Diagram - P/SCKT -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

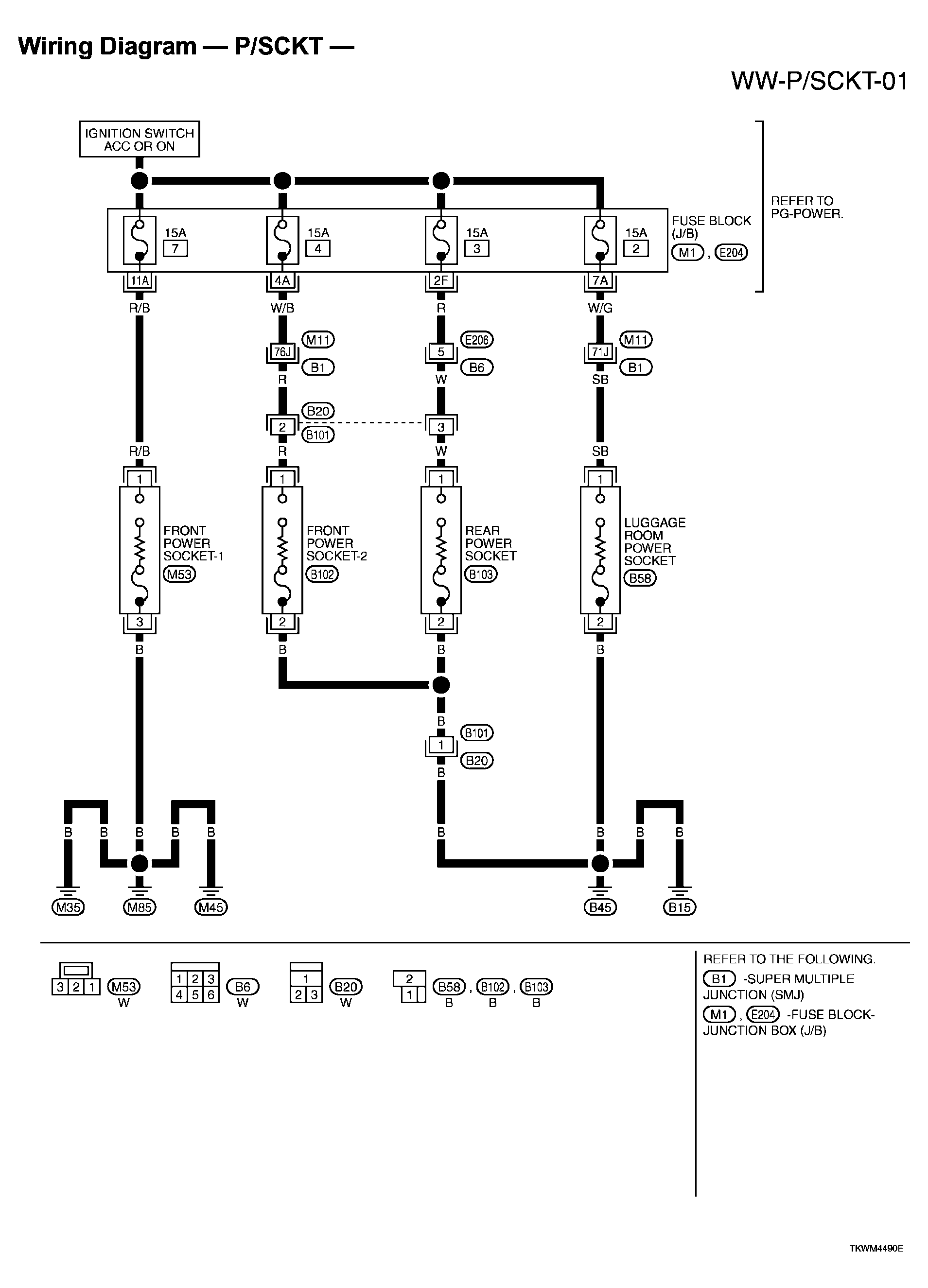

Fig 1: WW-P/SCKT-01 - Wiring Diagram

G04078755

Courtesy of NISSAN MOTOR CO., U.S.A.
