Removal and Installation of Front Power Socket - 1: Removal

  1. Remove A/T console finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove instrument clock finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Disconnect power socket connector.
  4. Remove inner socket from the ring. While pressing the hook on the ring out from square hole.
  5. Remove ring from ashtray while pressing pawls.

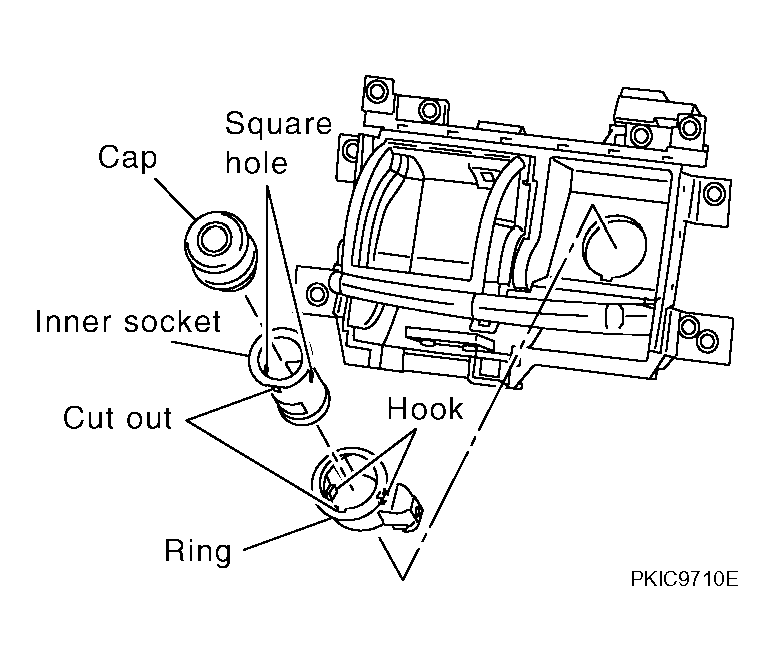

    Fig 1: Identifying Front Power Socket 1
    G04078756Courtesy of NISSAN MOTOR CO., U.S.A.
