Removal and Installation of Washer Tank: Removal

  1. Remove bolt and pull out washer tank inlet.

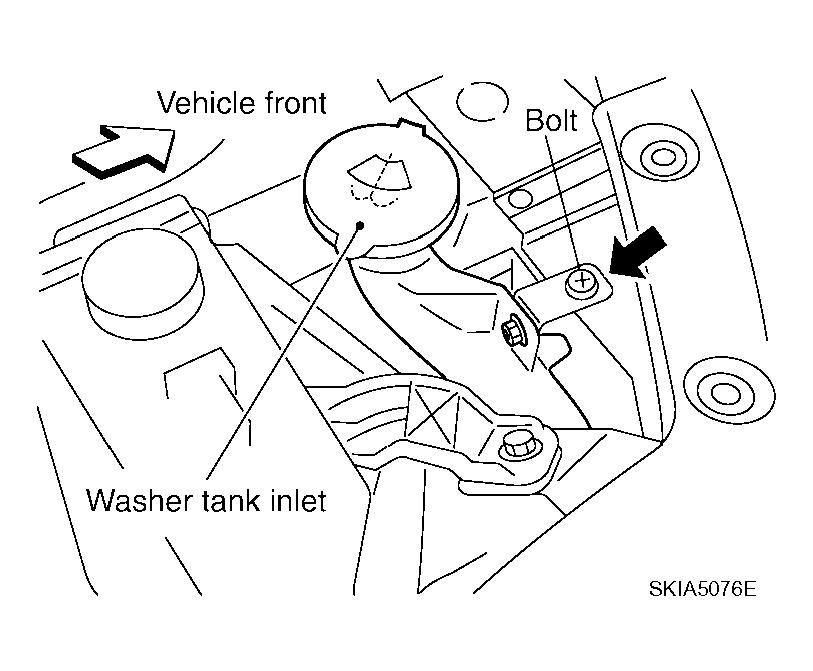

    Fig 1: Identifying Bolt And Pulling Out Washer Tank Inlet
    G04078717Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove fillet molding (RH). Refer to "FRONT BUMPER ".
  3. Remove fender protector (RH). Refer to "FENDER PROTECTOR ".
  4. Remove bumper fascia assembly. Refer to "FRONT BUMPER ".
  5. Disconnect washer pump connector and wash fluid level sensor connector.
  6. Remove washer tank mounting bolt and nuts.

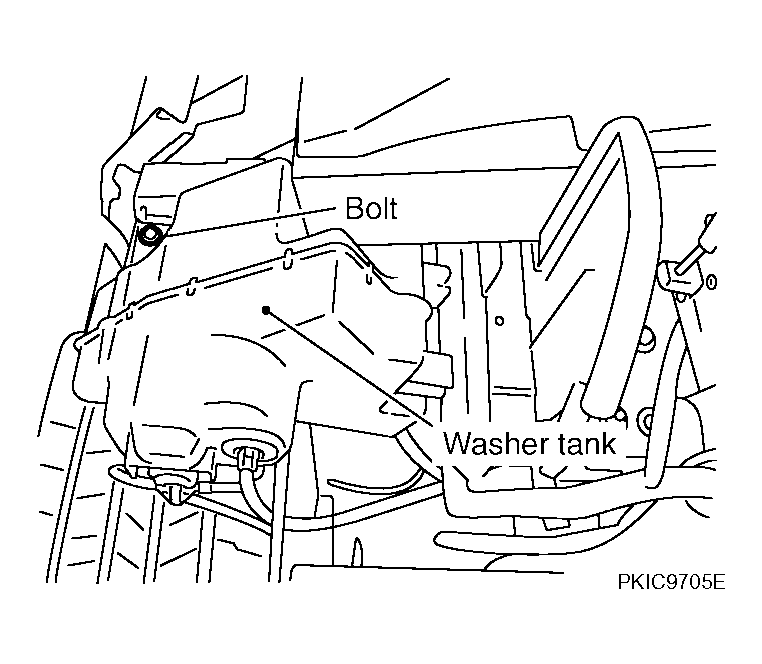

    Fig 2: Identifying Washer Tank Mounting Bolt And Nuts
    G04078718Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove washer tube, and remove washer tank from the vehicle.

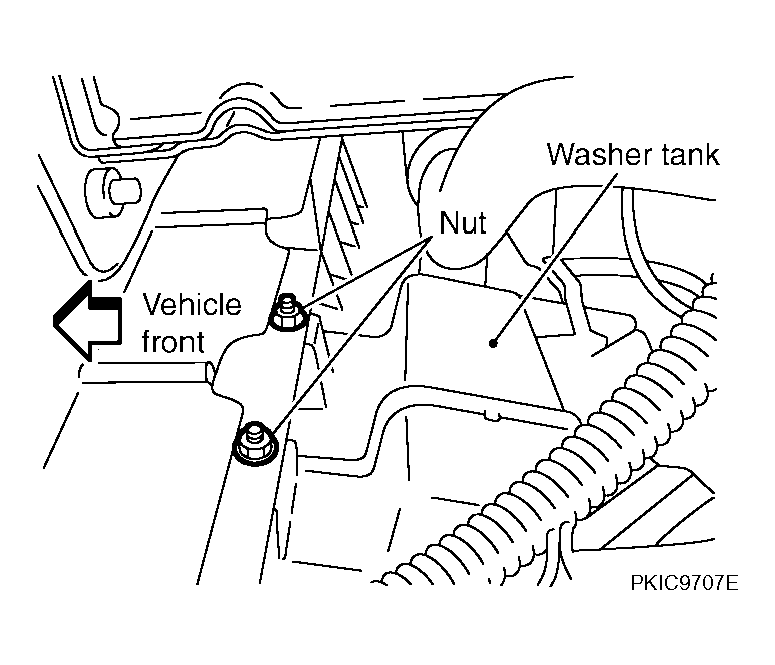

    Fig 3: Identifying Washer Tube And Washer Tank From Vehicle
    G04078719Courtesy of NISSAN MOTOR CO., U.S.A.
