Removal and Installation of Washer Pump: Removal

  1. Remove fillet molding (RH). Refer to "FRONT BUMPER ".
  2. Remove fender protector (RH). Refer to "FENDER PROTECTOR ".
  3. Remove bumper fascia assembly. Refer to "FRONT BUMPER ".
  4. Disconnect washer pump connector and tube.
  5. Pull out washer pump in direction shown by the arrow in the figure. Remove washer pump from washer tank.

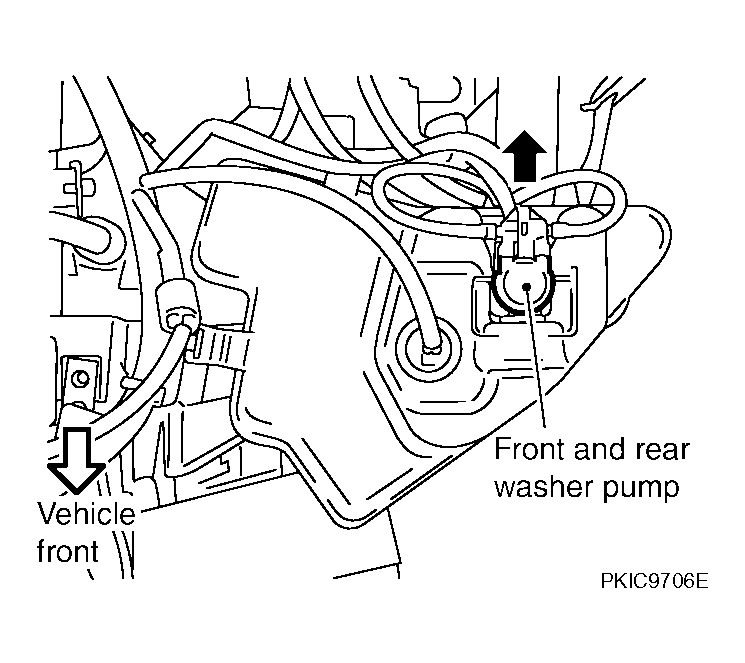

    Fig 1: Identifying Washer Pump From Washer Tank
    G04078720Courtesy of NISSAN MOTOR CO., U.S.A.
