Disassembly and Assembly of Front Wiper Drive Assembly: Notes

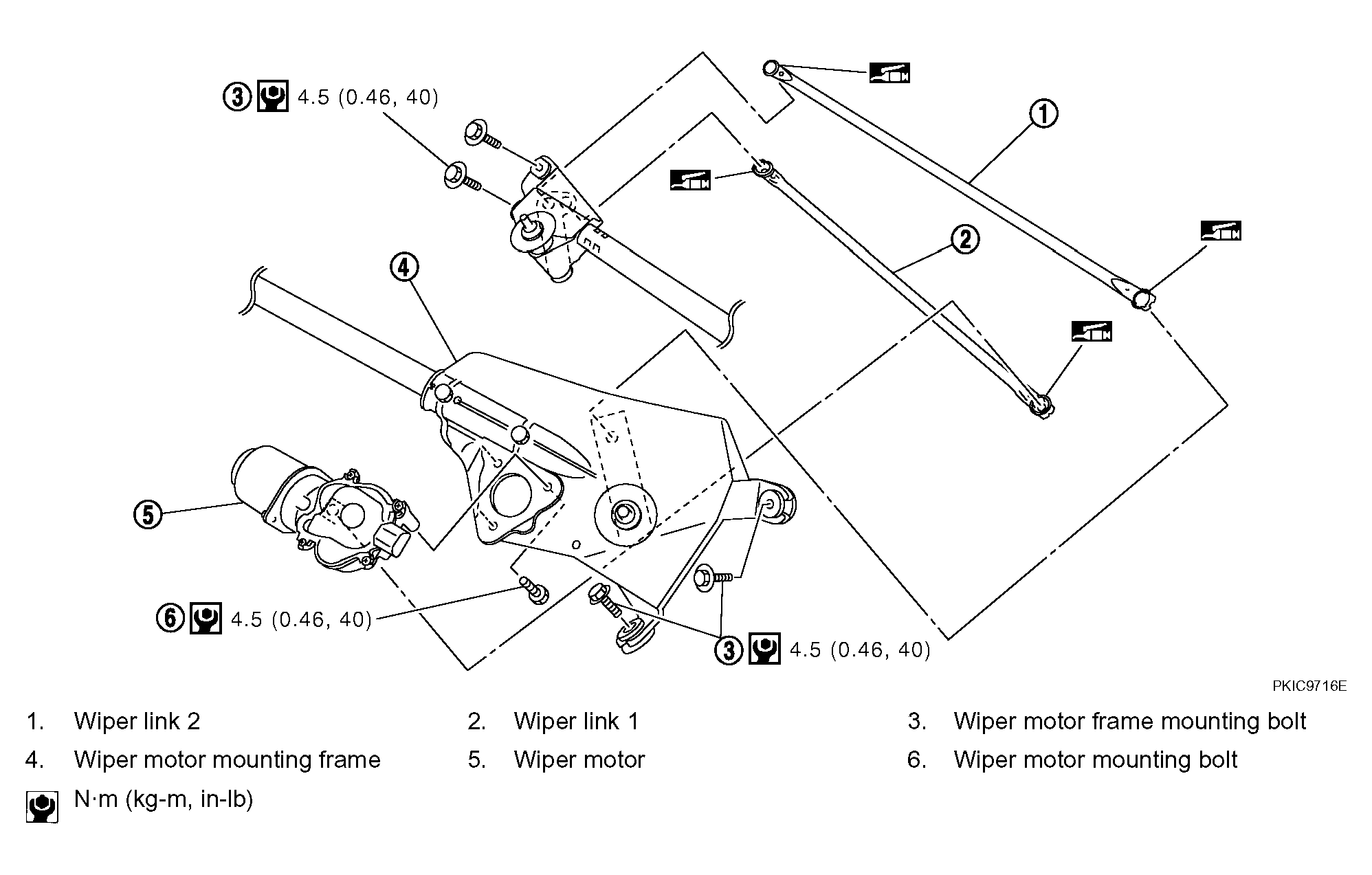

Fig 1: Front Wiper Drive Assembly Replacement Components With Torque Specifications

G04078711

Courtesy of NISSAN MOTOR CO., U.S.A.

N.m (kg-m, in-lb)
