Wiring Diagram - WARN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

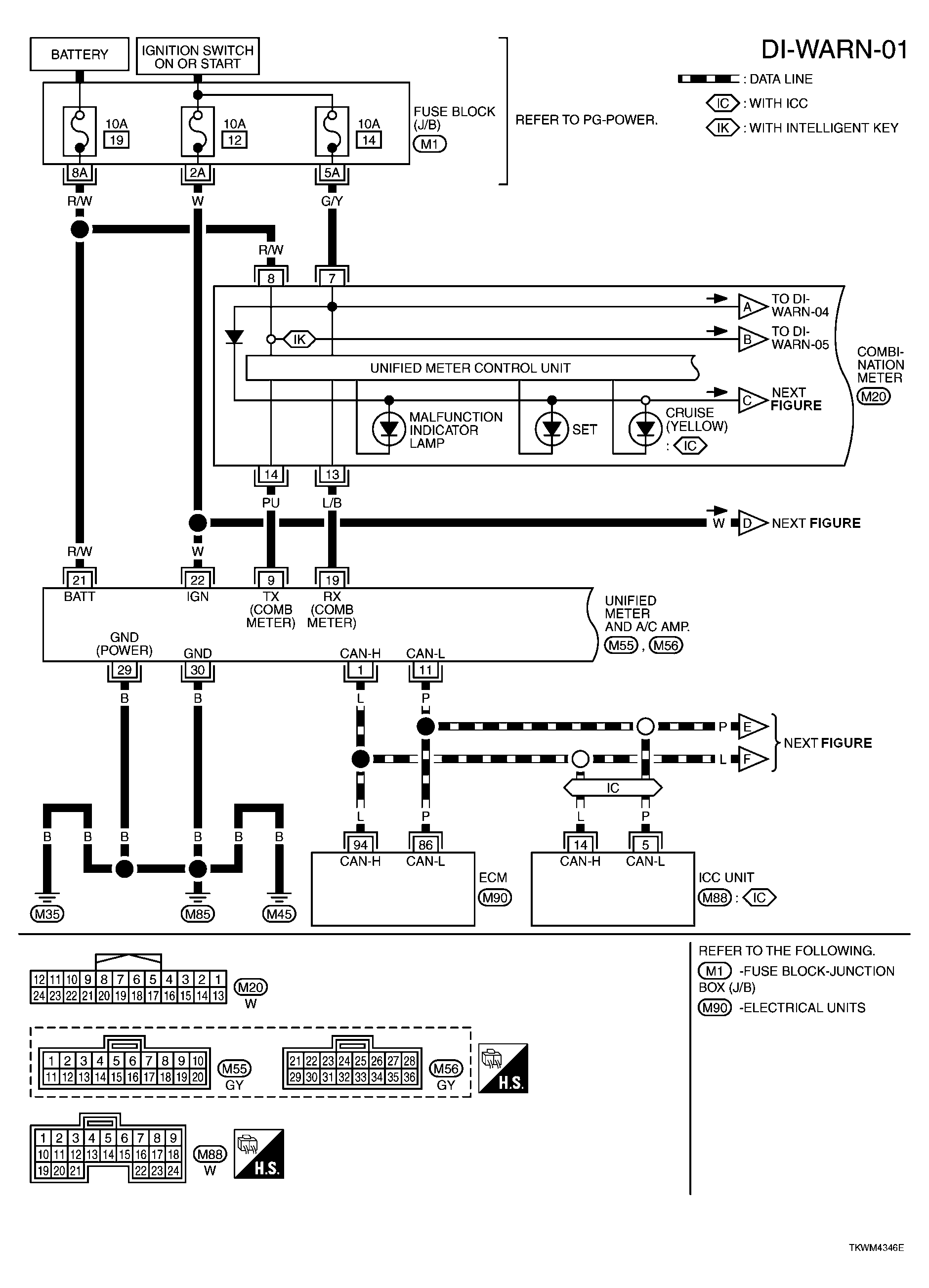

Fig 1: DI-WARN-01 - Wiring Diagram

G04078488

Courtesy of NISSAN MOTOR CO., U.S.A.

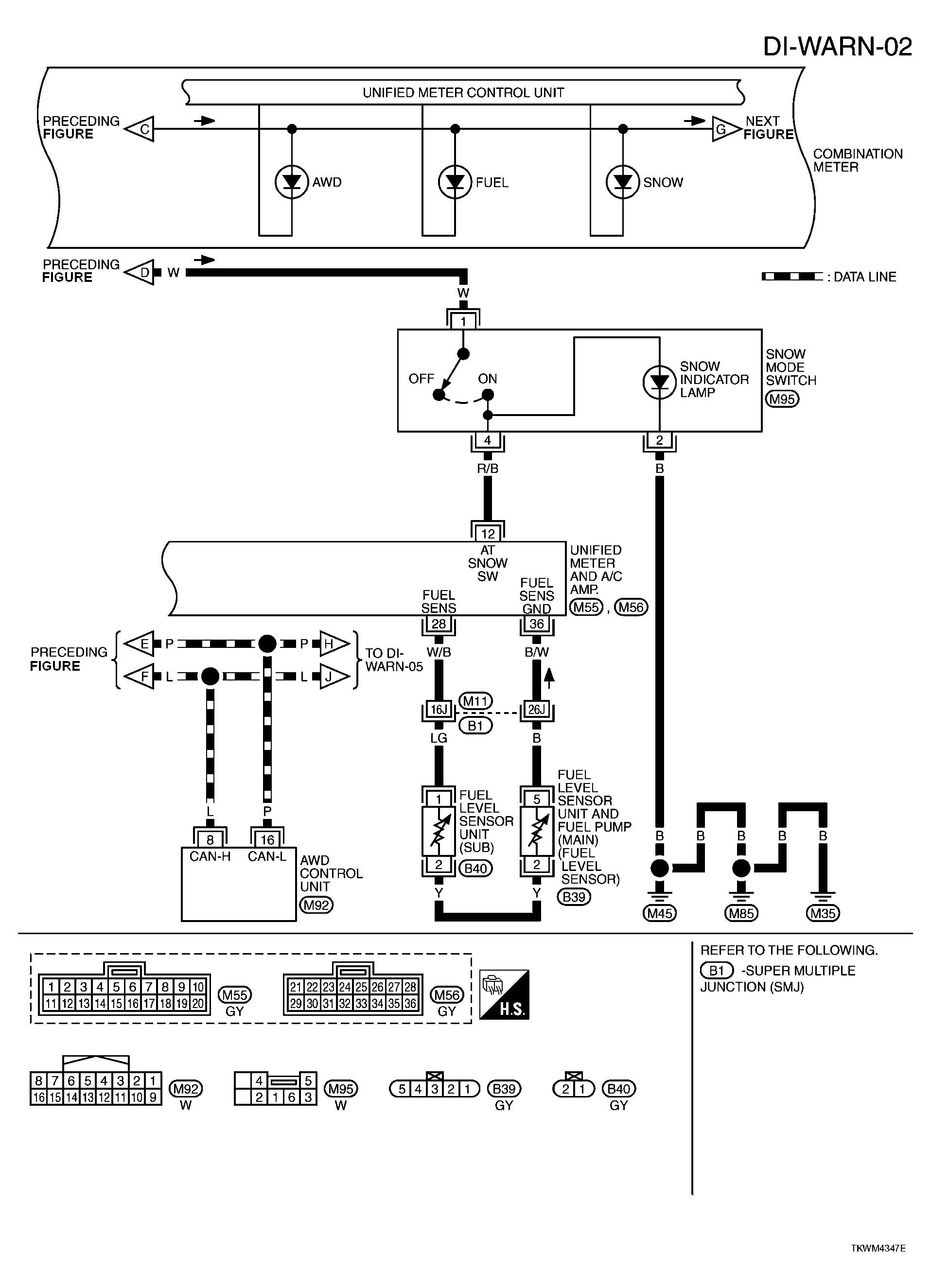

Fig 2: DI-WARN-02 - Wiring Diagram

G04078489

Courtesy of NISSAN MOTOR CO., U.S.A.

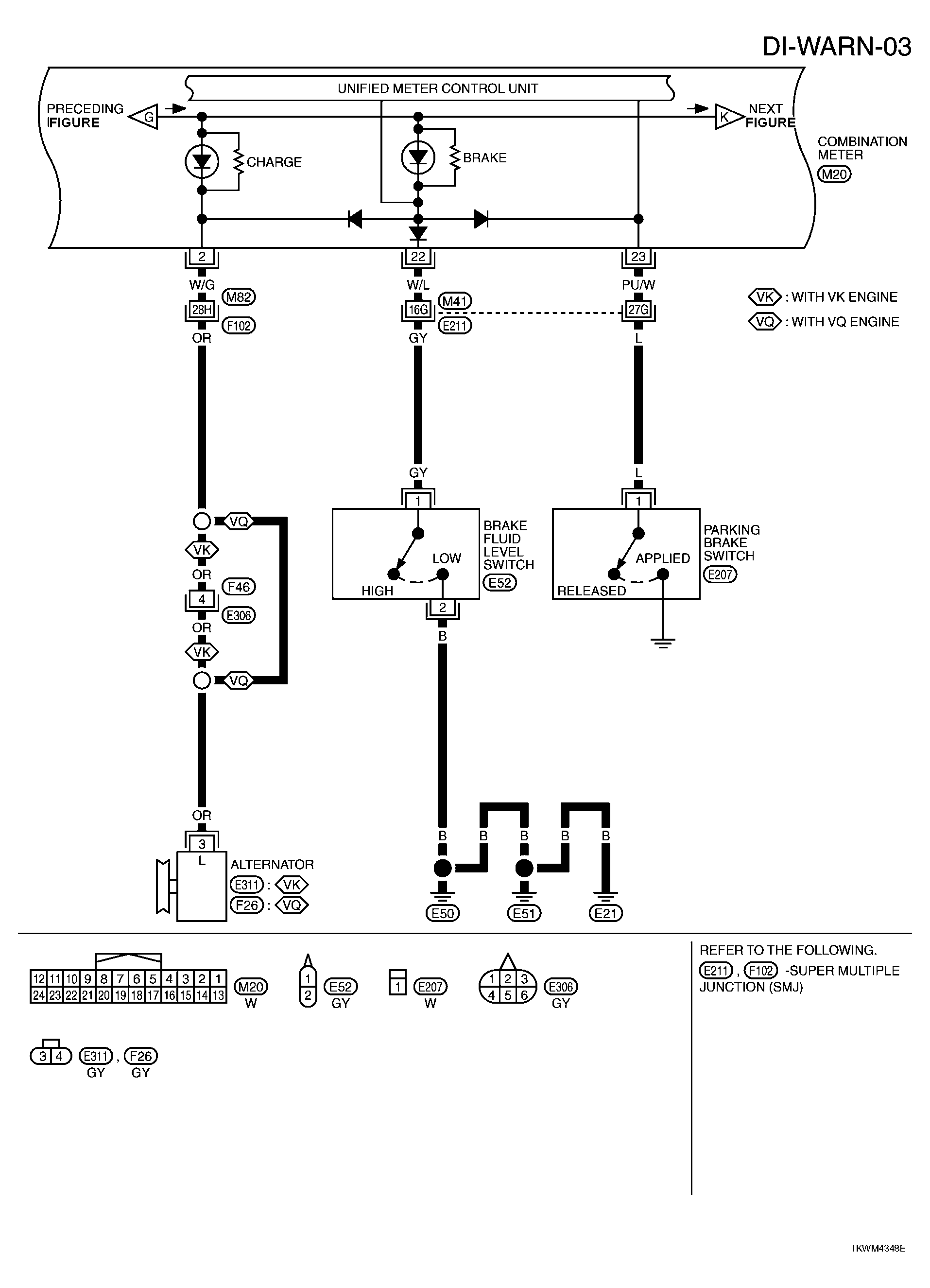

Fig 3: DI-WARN-03 - Wiring Diagram

G04078490

Courtesy of NISSAN MOTOR CO., U.S.A.

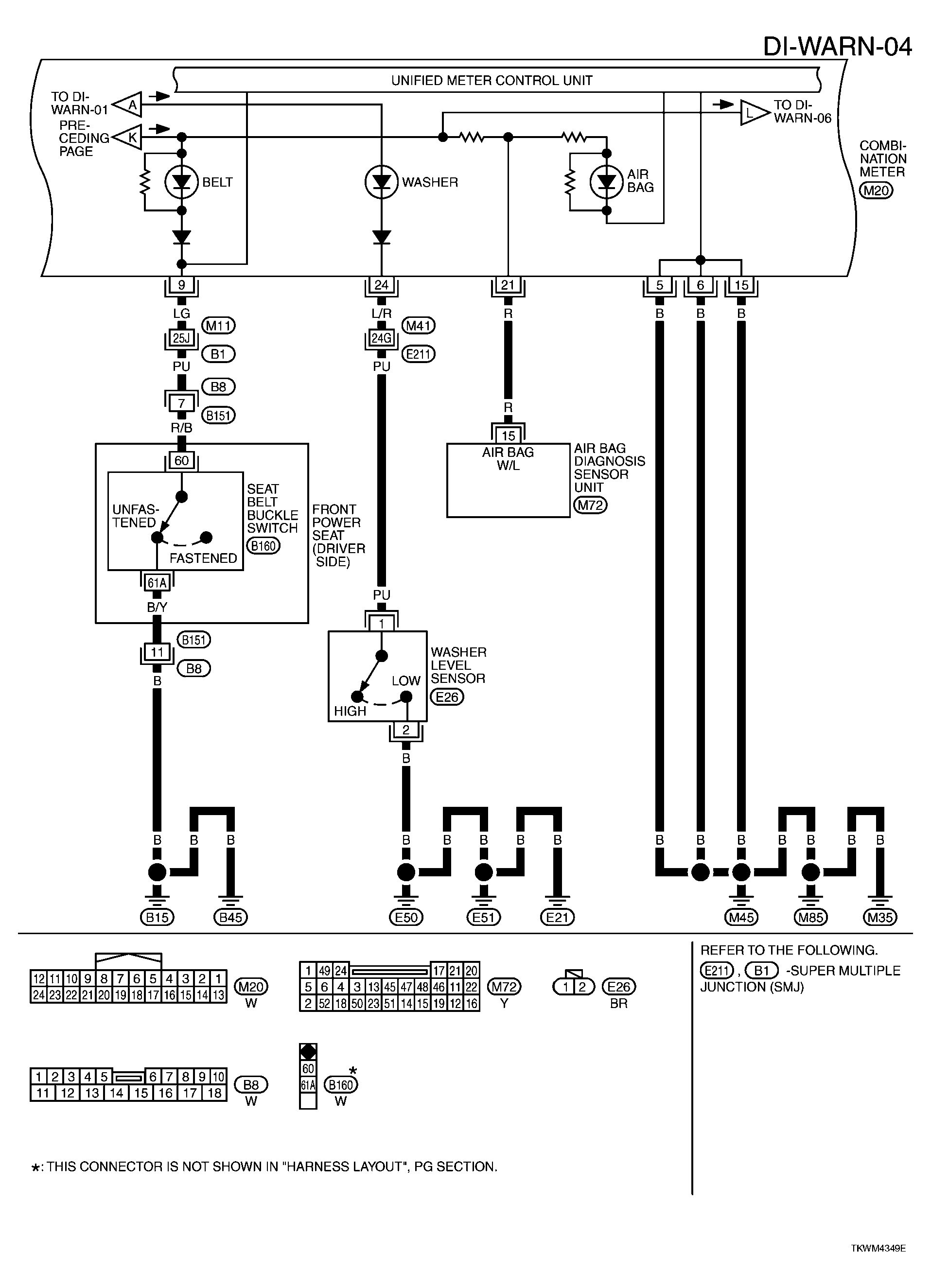

Fig 4: DI-WARN-04 - Wiring Diagram

G04078491

Courtesy of NISSAN MOTOR CO., U.S.A.

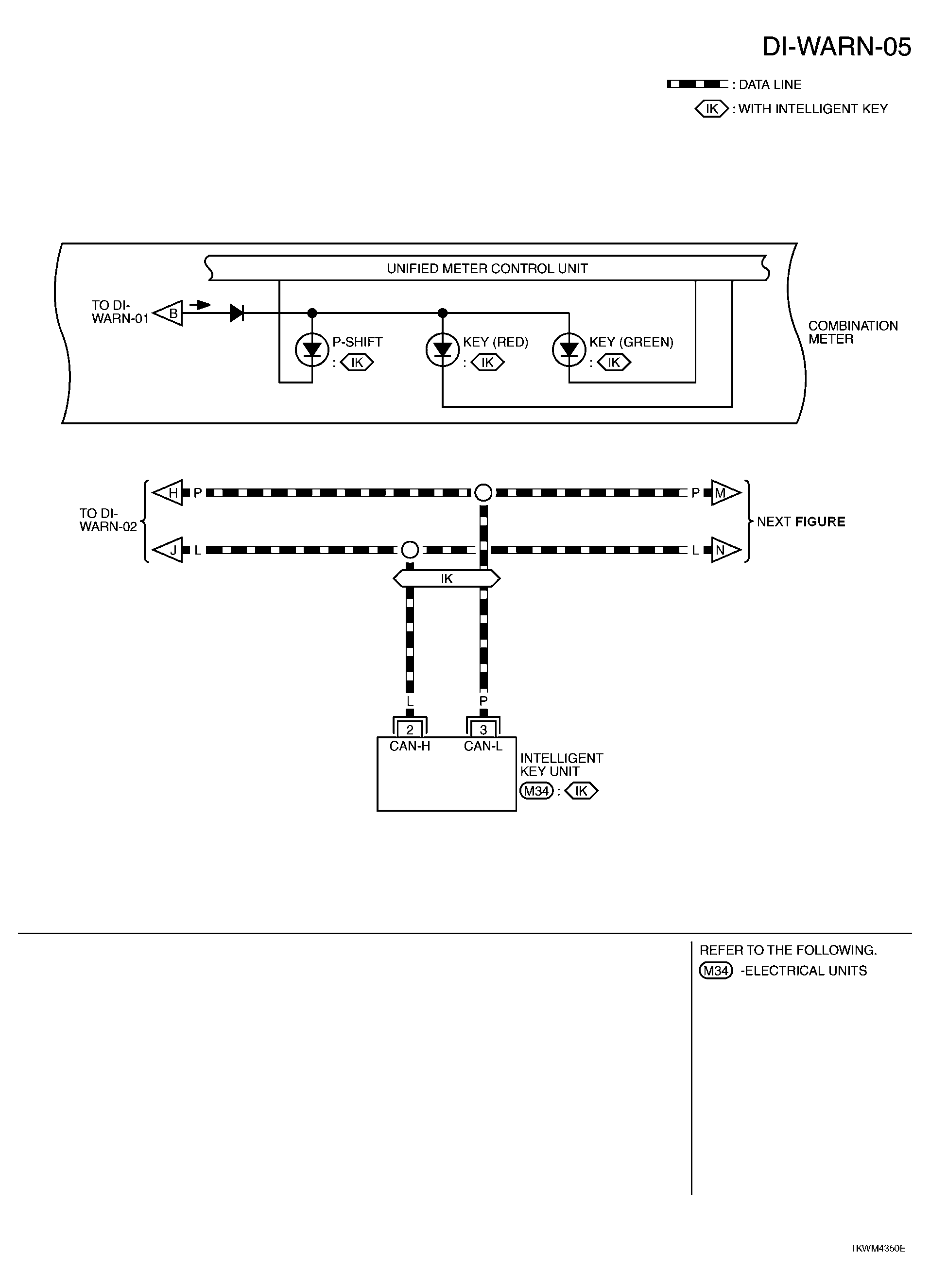

Fig 5: DI-WARN-05 - Wiring Diagram

G04078492

Courtesy of NISSAN MOTOR CO., U.S.A.

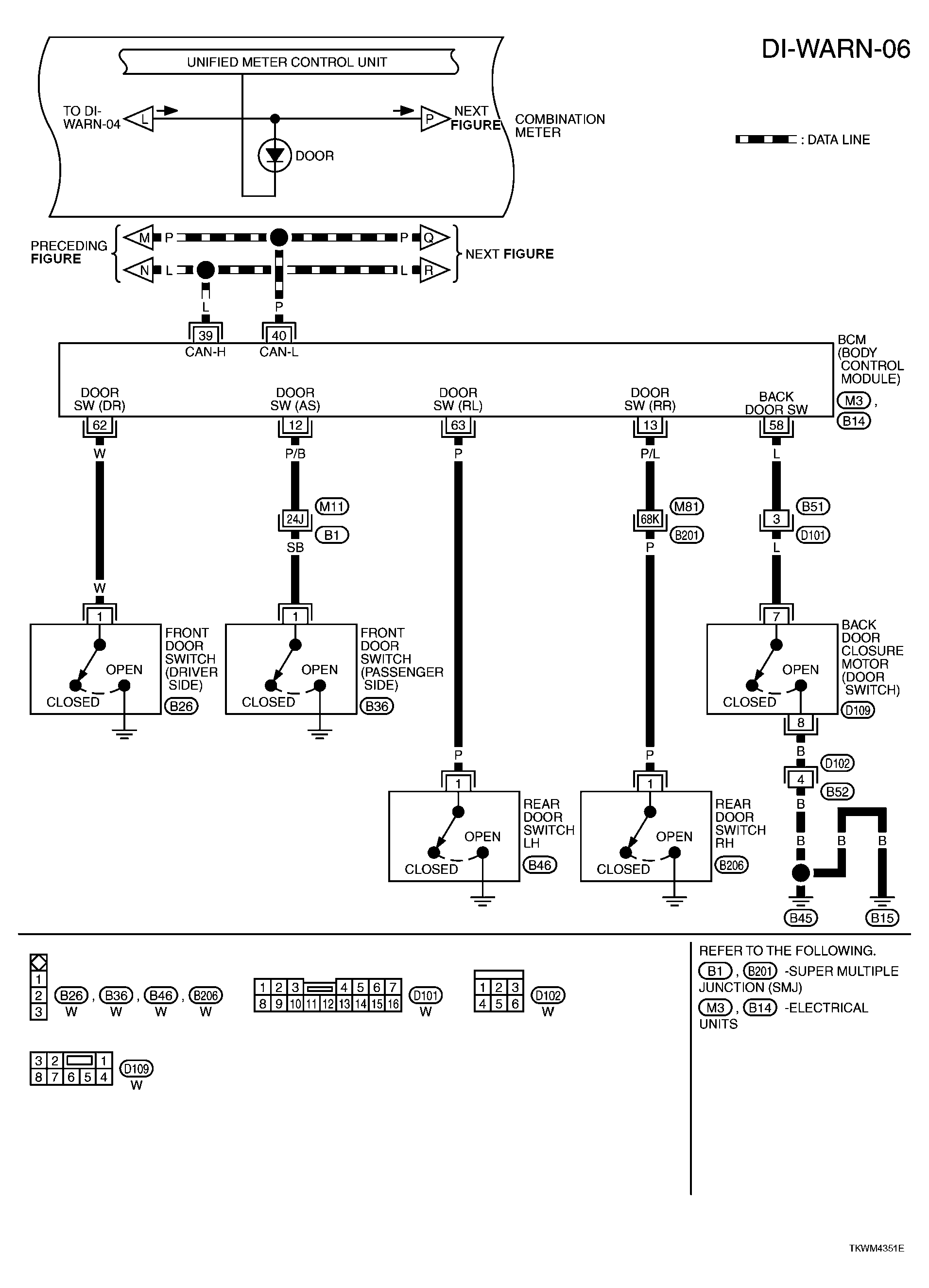

Fig 6: DI-WARN-06 - Wiring Diagram

G04078493

Courtesy of NISSAN MOTOR CO., U.S.A.

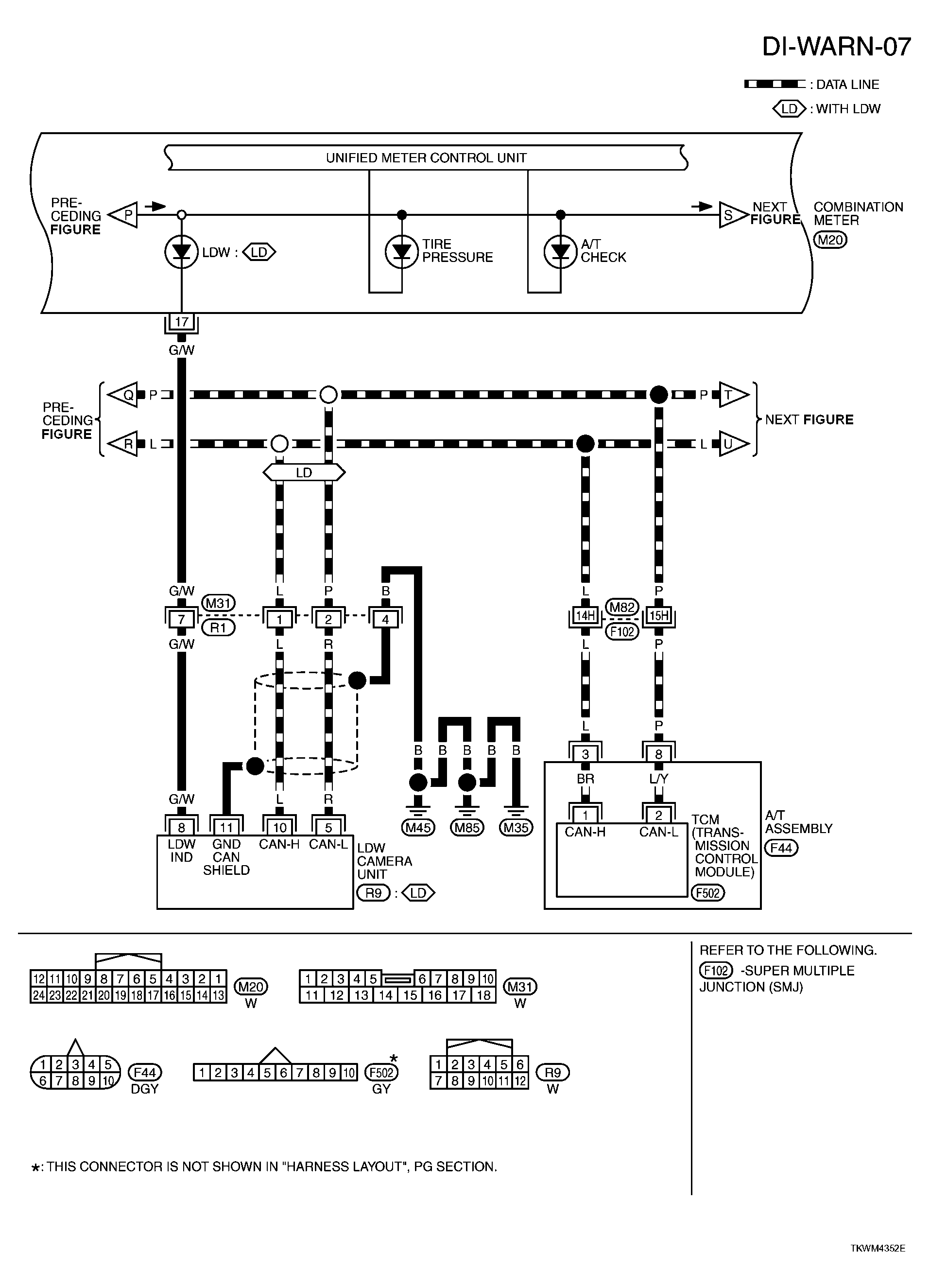

Fig 7: DI-WARN-07 - Wiring Diagram

G04078494

Courtesy of NISSAN MOTOR CO., U.S.A.

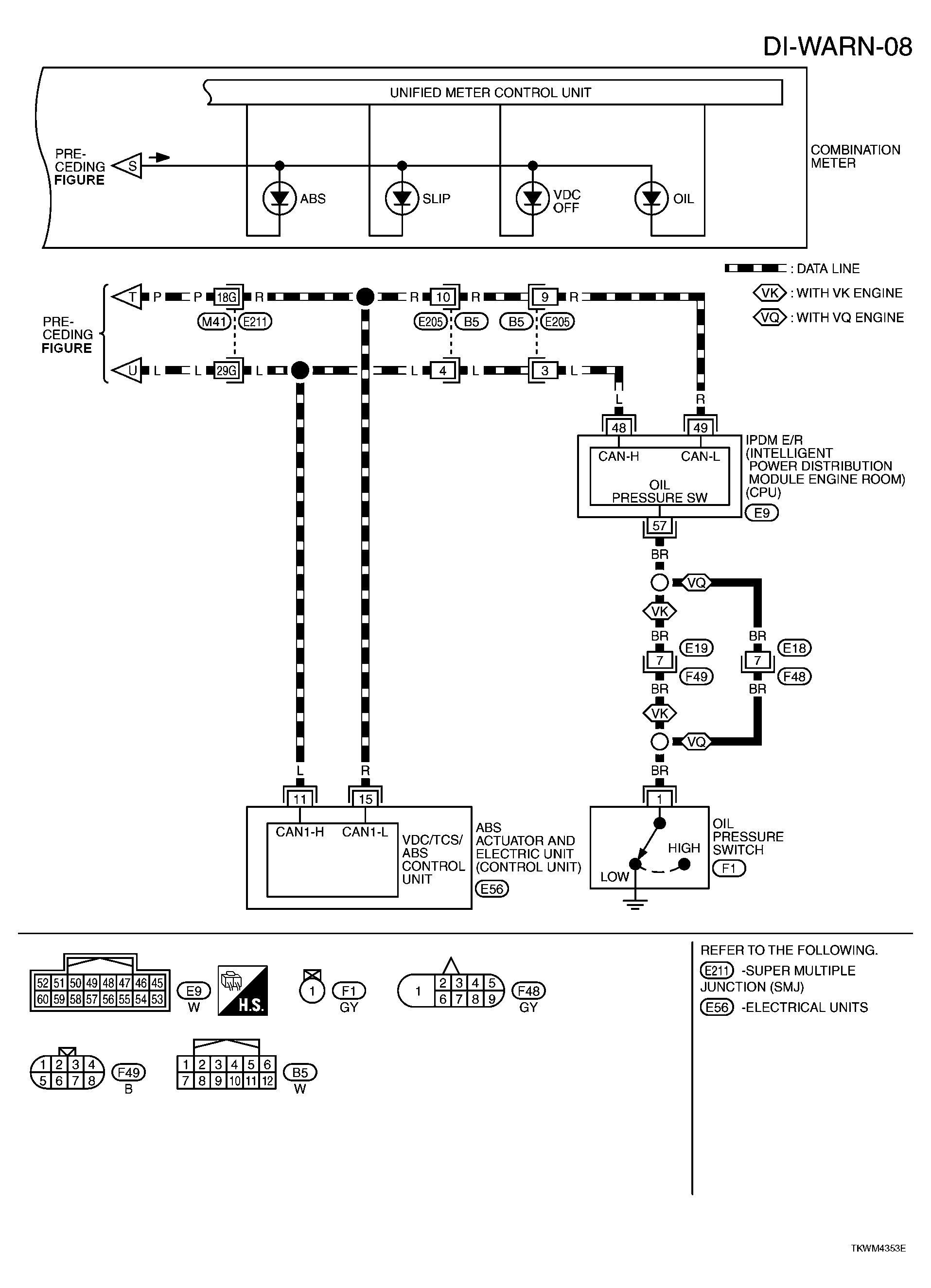

Fig 8: DI-WARN-08 - Wiring Diagram

G04078495

Courtesy of NISSAN MOTOR CO., U.S.A.
