Removal and Installation of Rear Wiper Motor: Removal

  1. Remove wiper arm. Refer to "REMOVAL ".
  2. Remove pivot cap, and remove nut and nozzle or tube from vehicle.
  3. Remove back door finisher. Refer to "BACK DOOR TRIM ".
  4. Disconnect rear wiper motor connector.
  5. Remove rear wiper motor mounting bolts and remove rear wiper motor.
    CAUTION: Never remove cushion rubber.

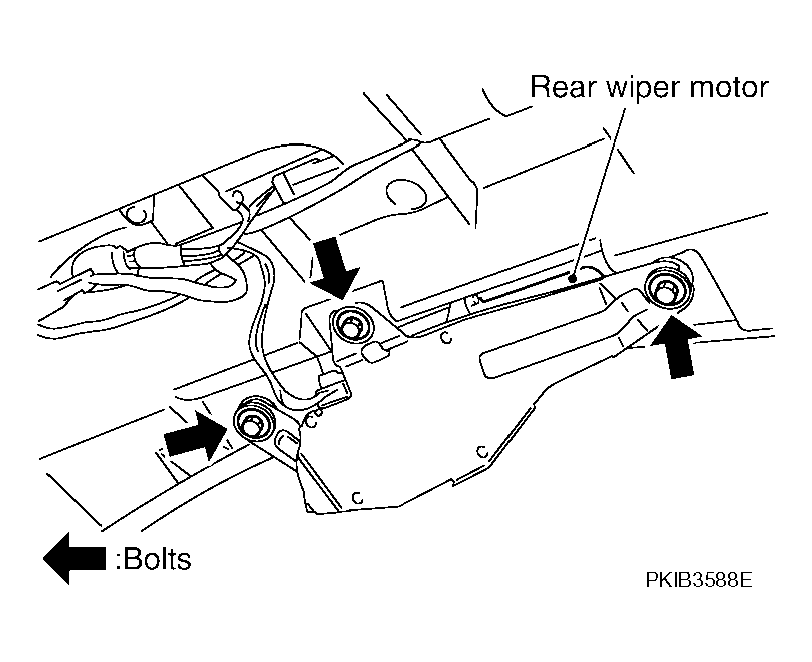

    Fig 1: Identifying Rear Wiper Motor Mounting Bolts
    G04078747Courtesy of NISSAN MOTOR CO., U.S.A.
