Removal and Installation of Rear Wiper Motor: Notes

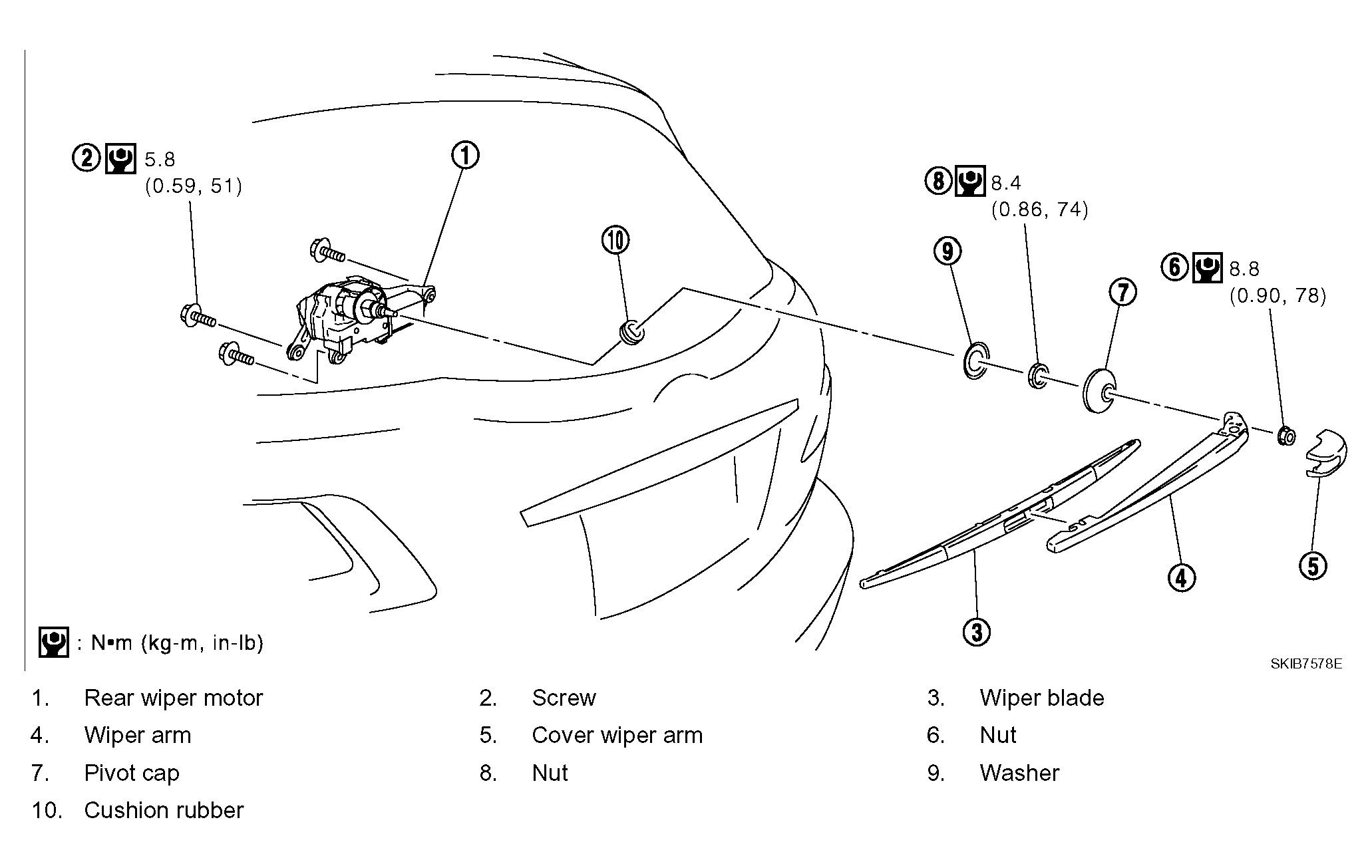

Fig 1: Rear Wiper Motor Replacement Components With Torque Specifications

G04078746

Courtesy of NISSAN MOTOR CO., U.S.A.
