Removal and Installation: Removal

  1. Remove front grille. Refer to "FRONT GRILLE ".
  2. Disconnect all horn connectors.
  3. Remove horn mounting bolt and remove horn from vehicle.

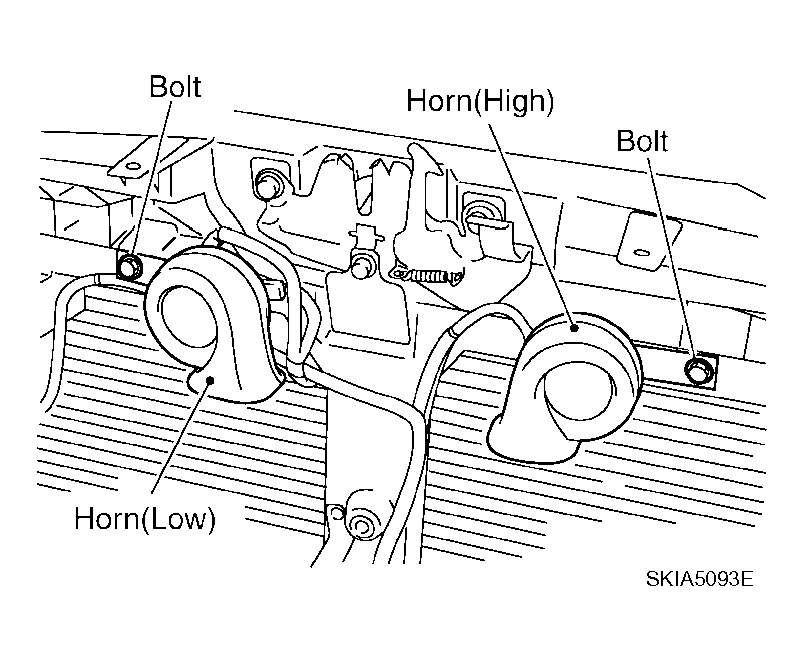

    Fig 1: Identifying Horn Mounting Bolt And Horn
    G04078761Courtesy of NISSAN MOTOR CO., U.S.A.
