Infiniti
>>
2006
>>
FX35 RWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Power Supply, Ground & Circuit Elements
>>
SMJ (Super Multiple Junction)
>>
Terminal Arrangement
Terminal Arrangement

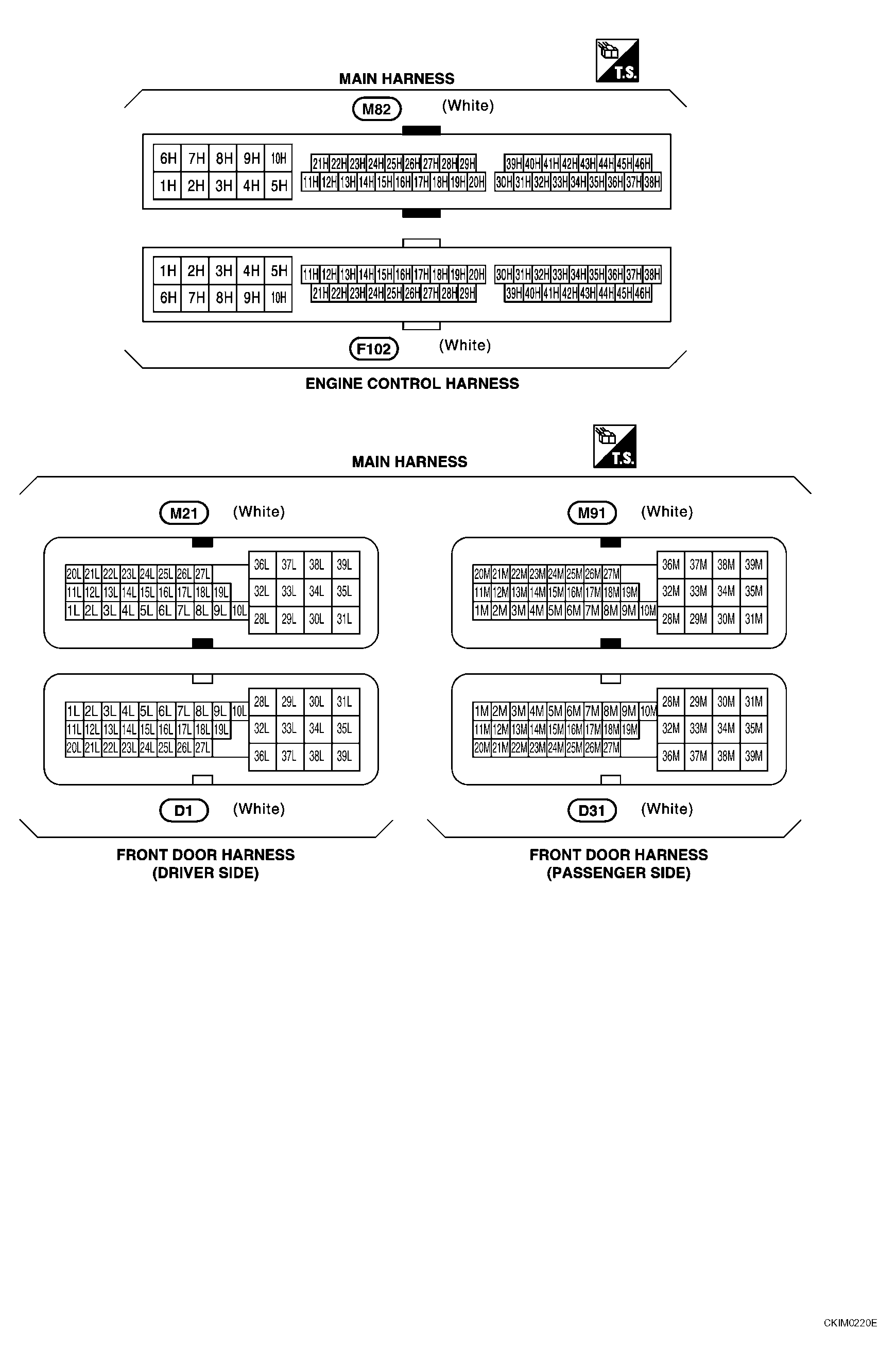

Fig 1: Identifying SMJ (Super Multiple Junction) Terminal Arrangement (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

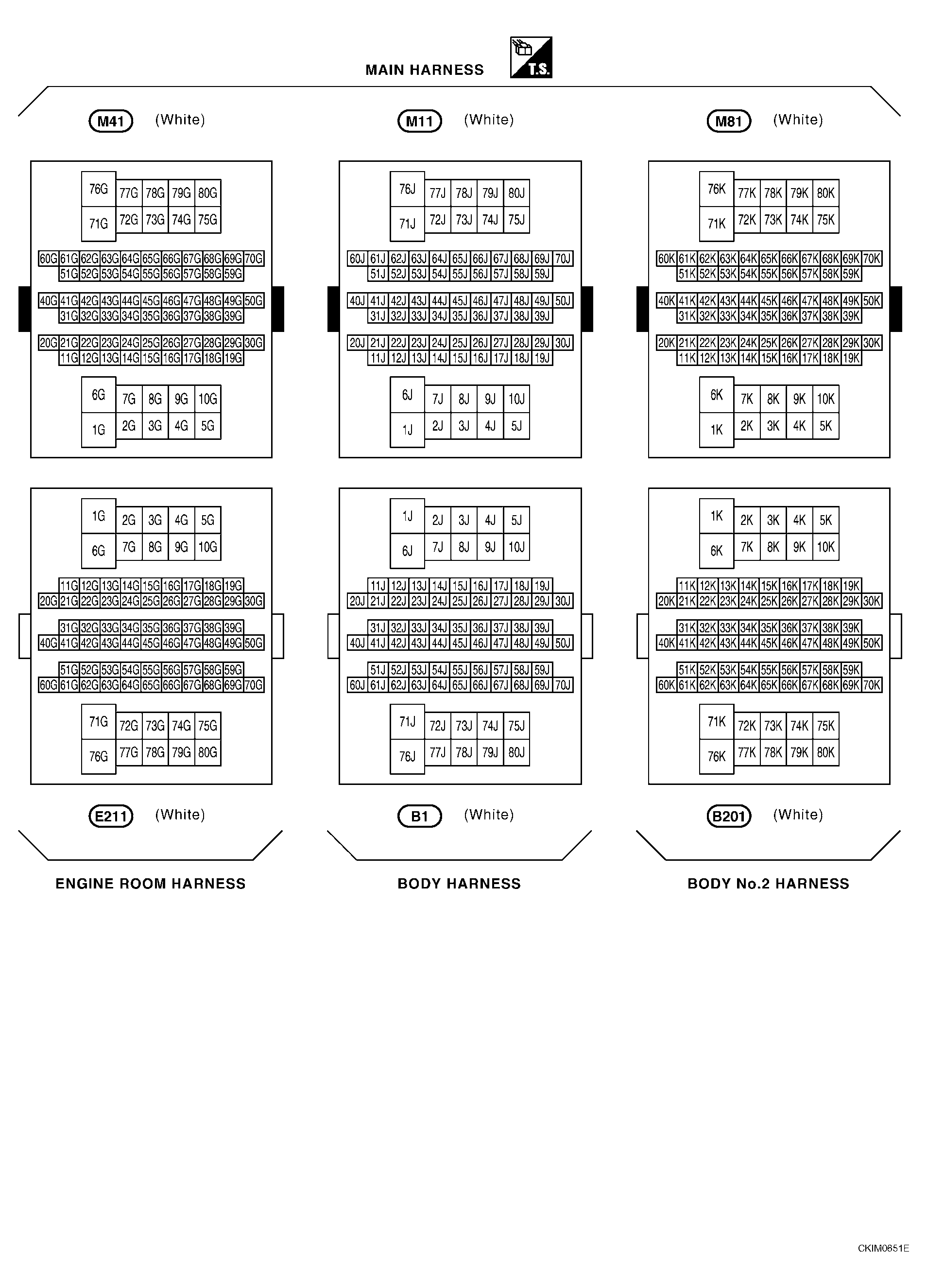

Fig 2: Identifying SMJ (Super Multiple Junction) Terminal Arrangement (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
