Ignition Power Supply - Ignition SW. In "On" And/Or "Start"

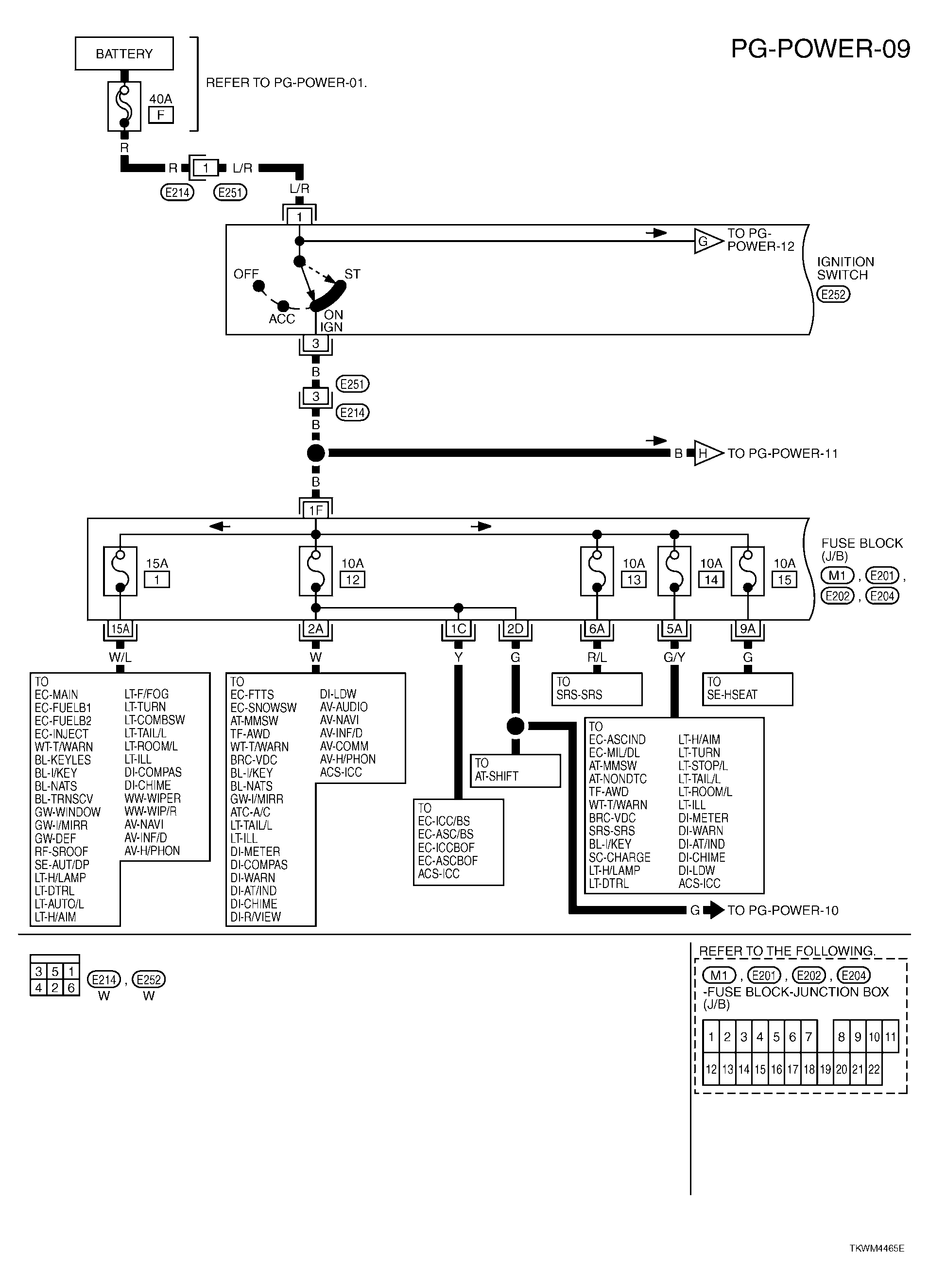

Fig 1: PG-POWER-09 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

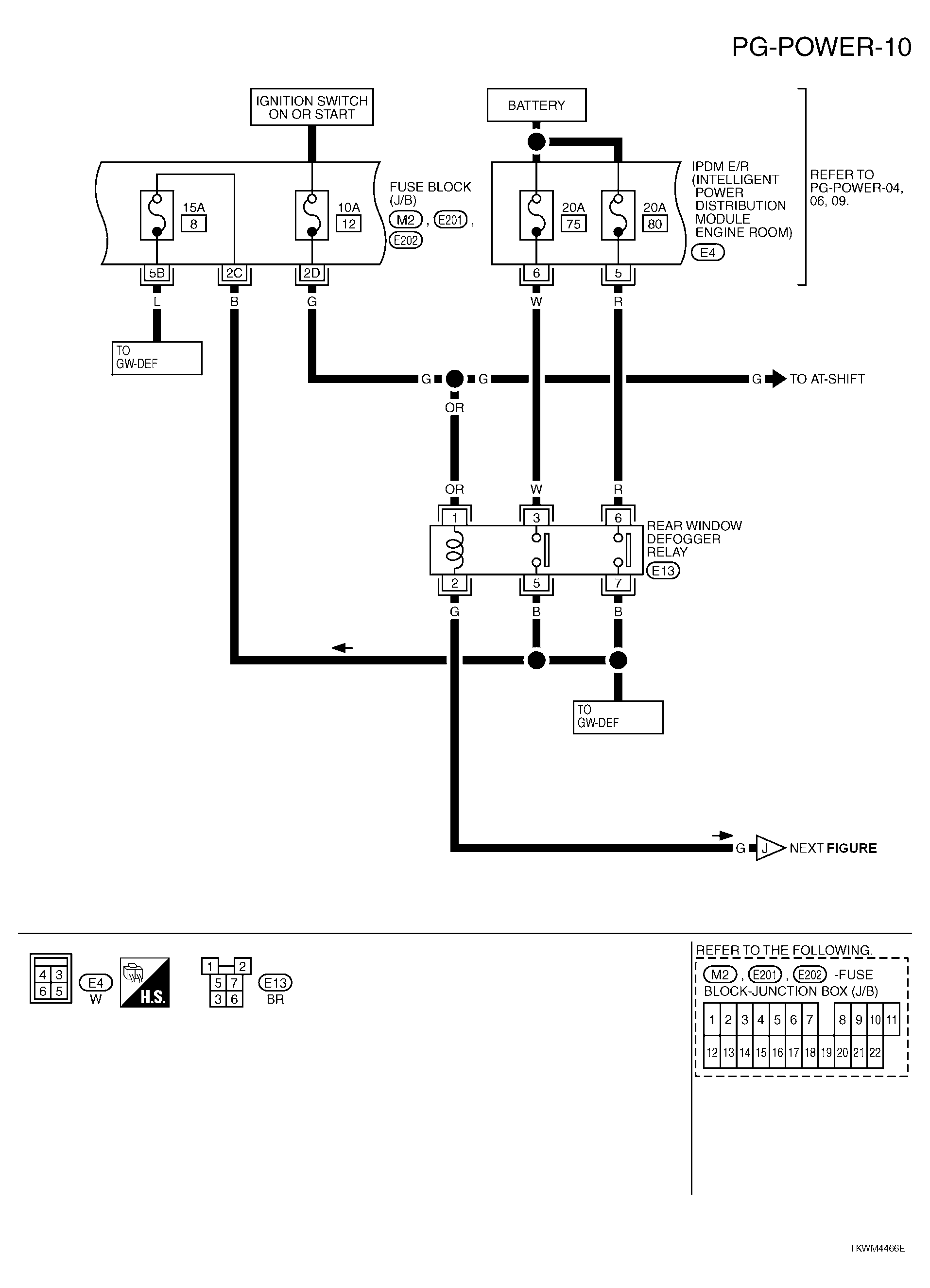

Fig 2: PG-POWER-10 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

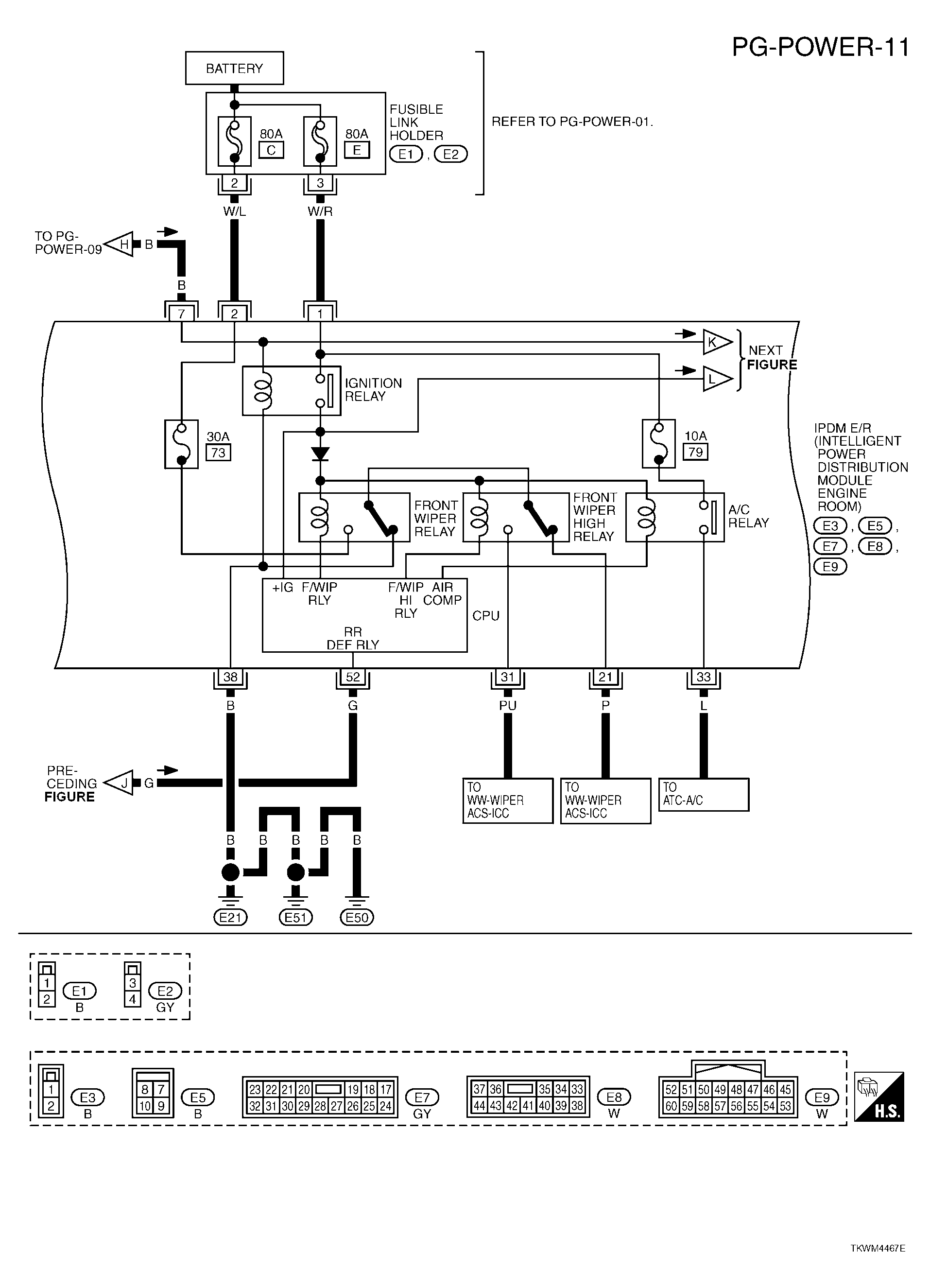

Fig 3: PG-POWER-11 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

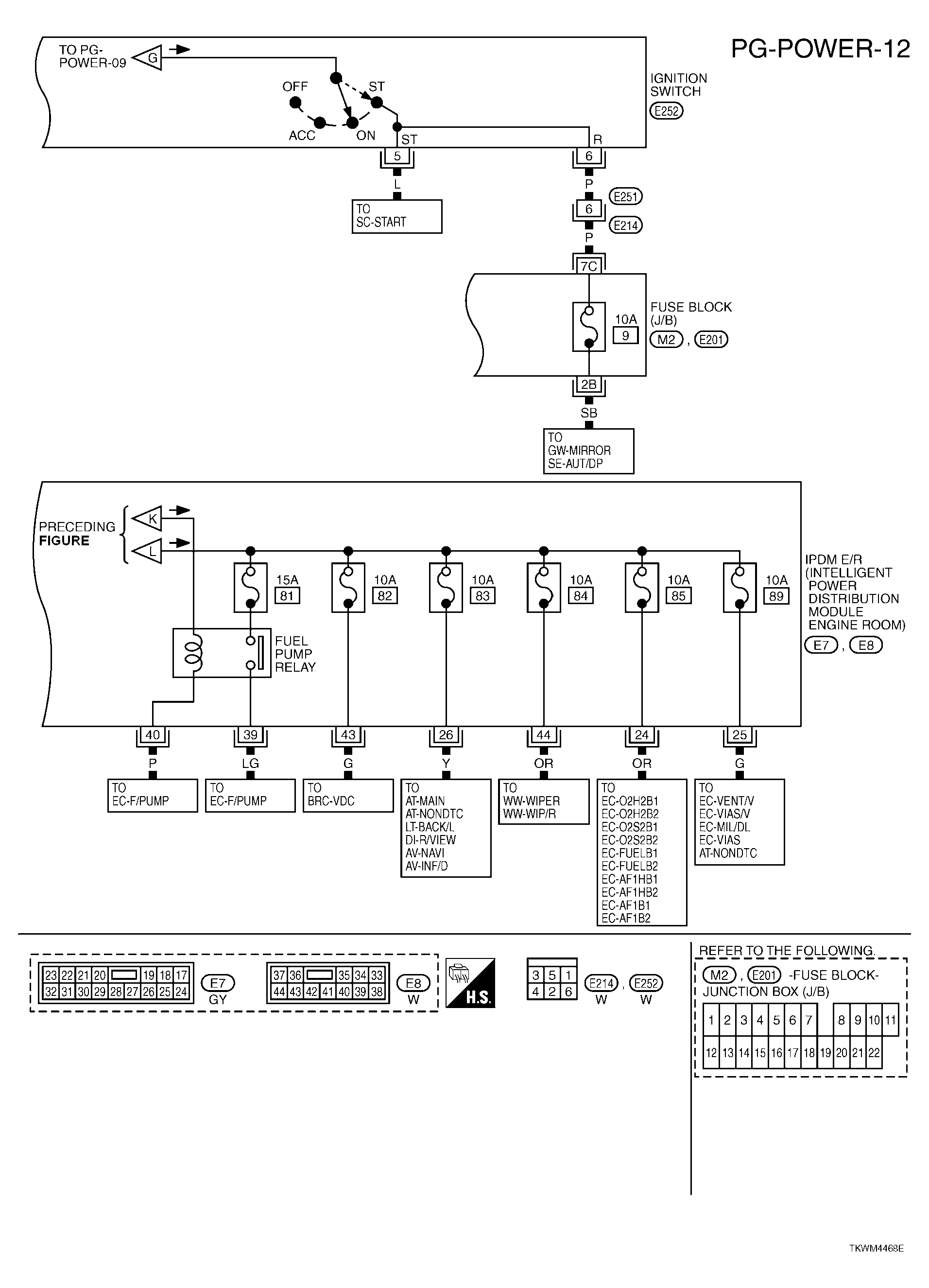

Fig 4: PG-POWER-12 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
