Battery Power Supply - Ignition SW. In Any Position

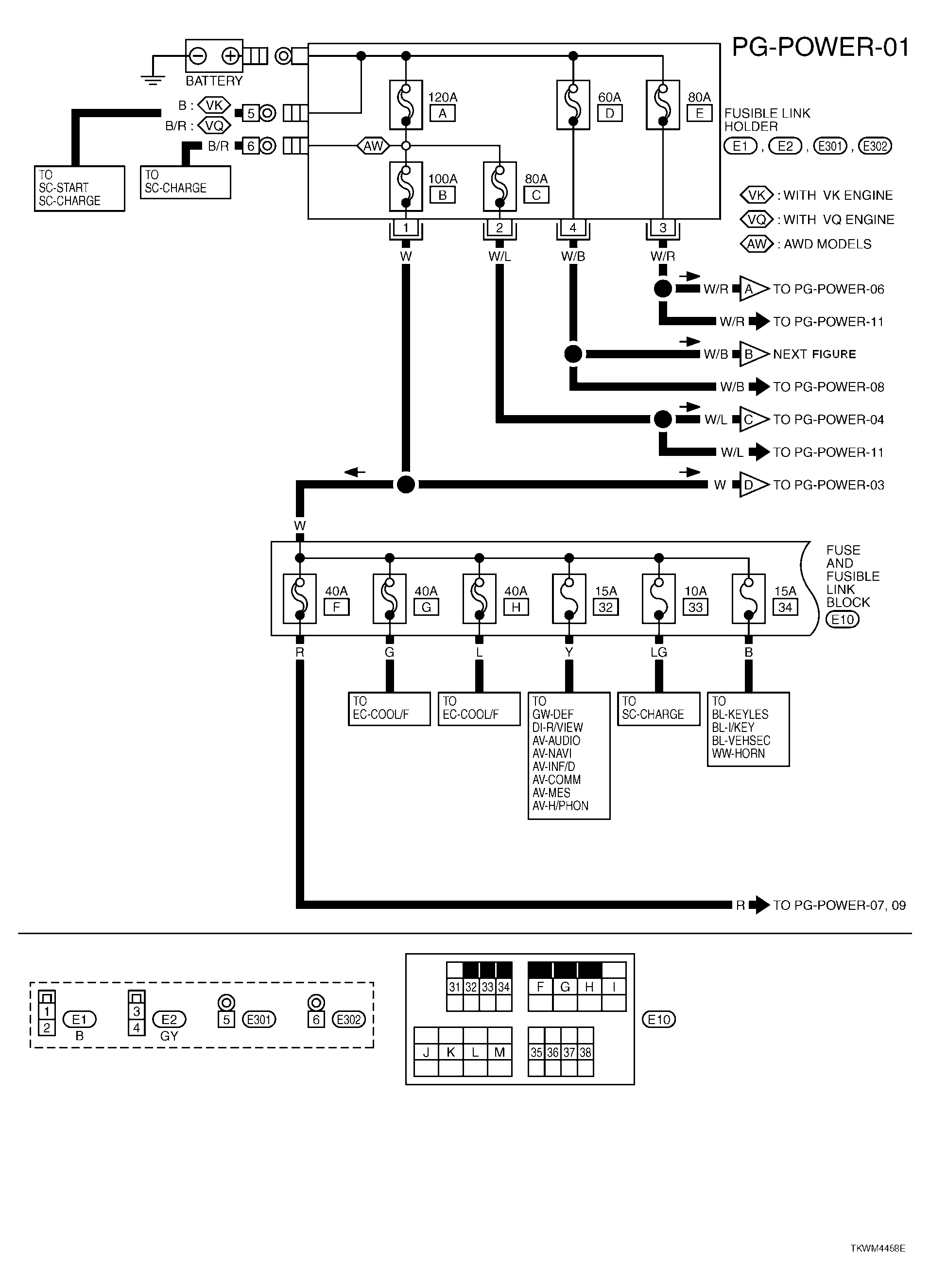

Fig 1: PG-POWER-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

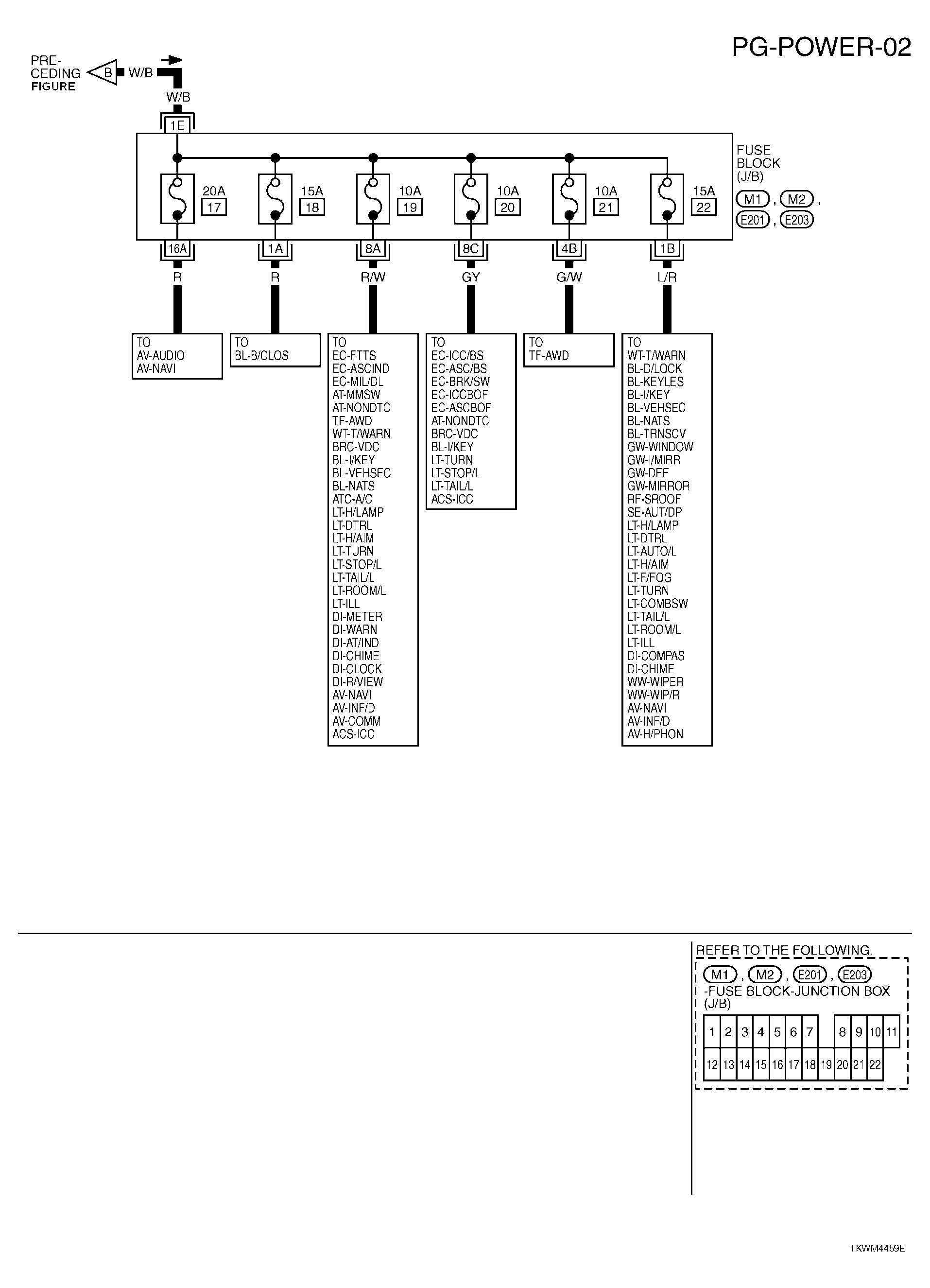

Fig 2: PG-POWER-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

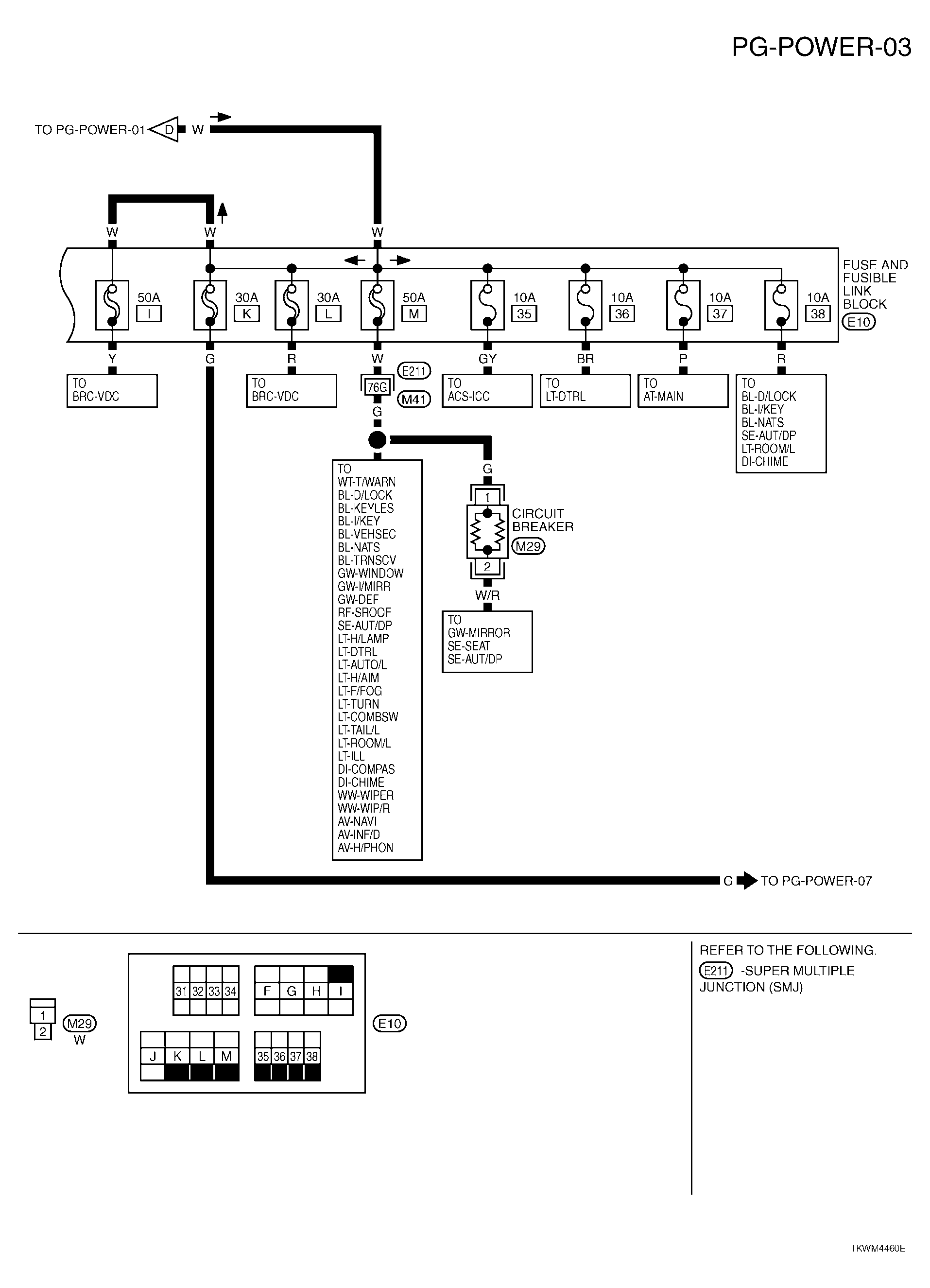

Fig 3: PG-POWER-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

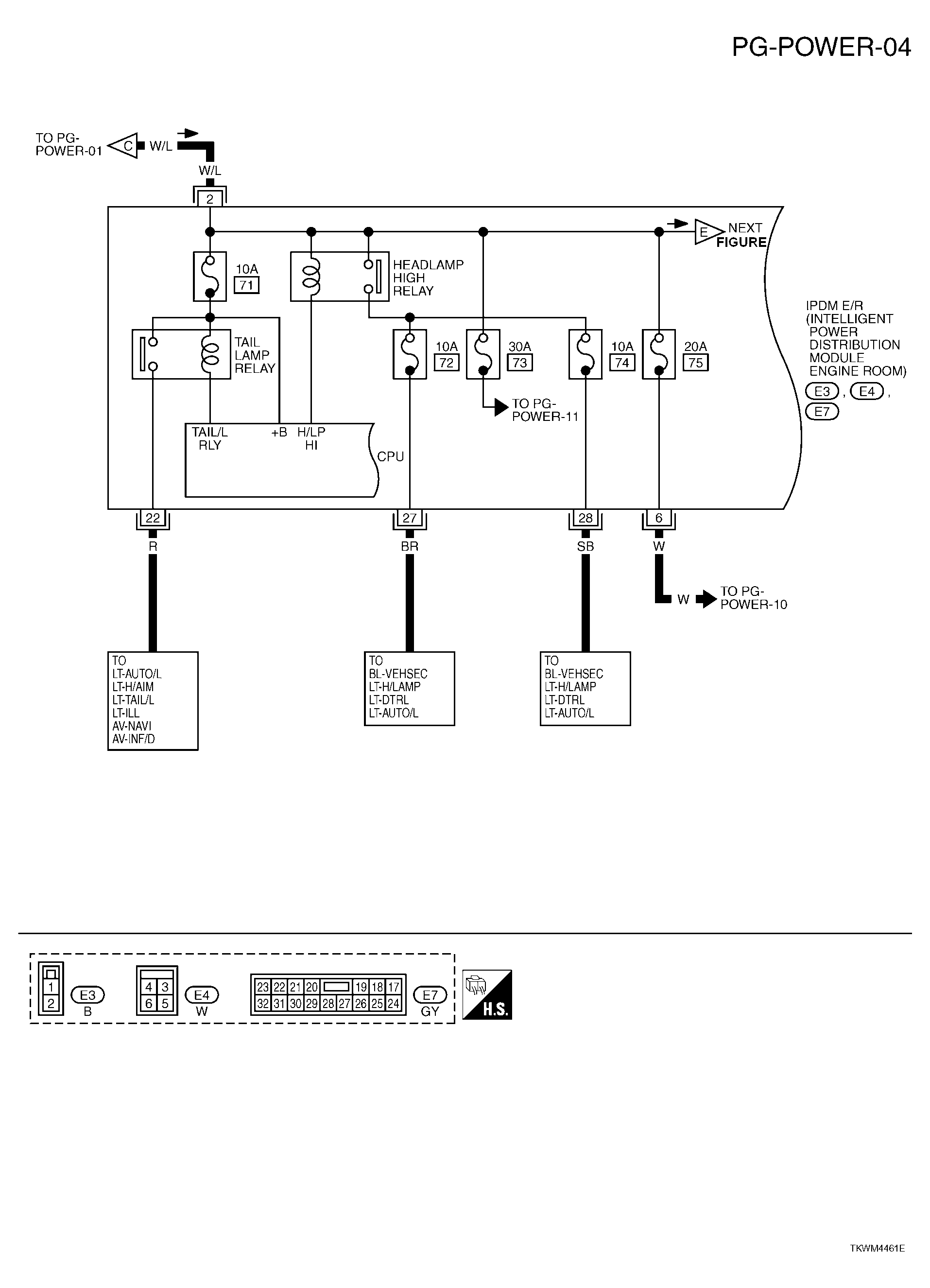

Fig 4: PG-POWER-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

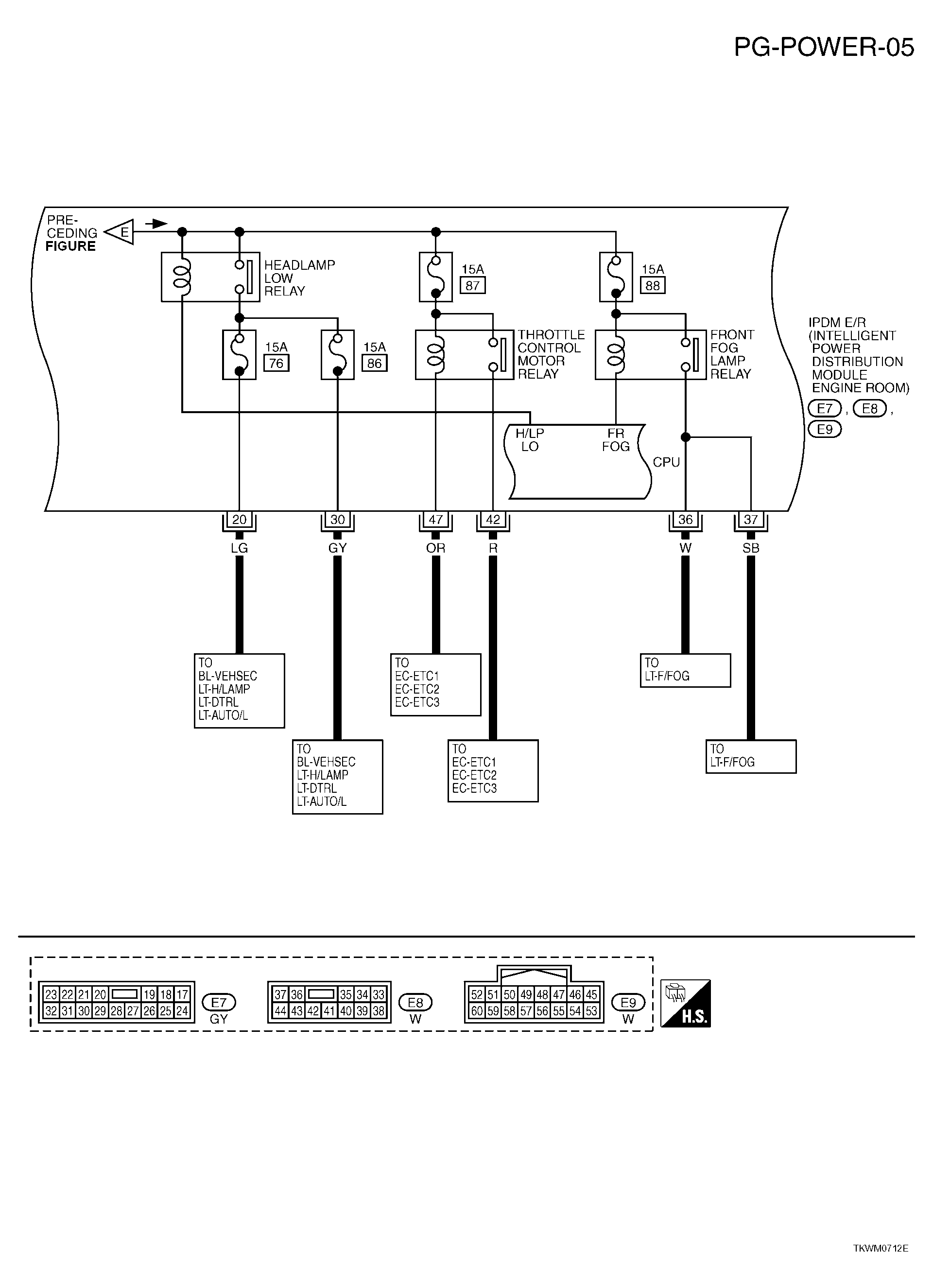

Fig 5: PG-POWER-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

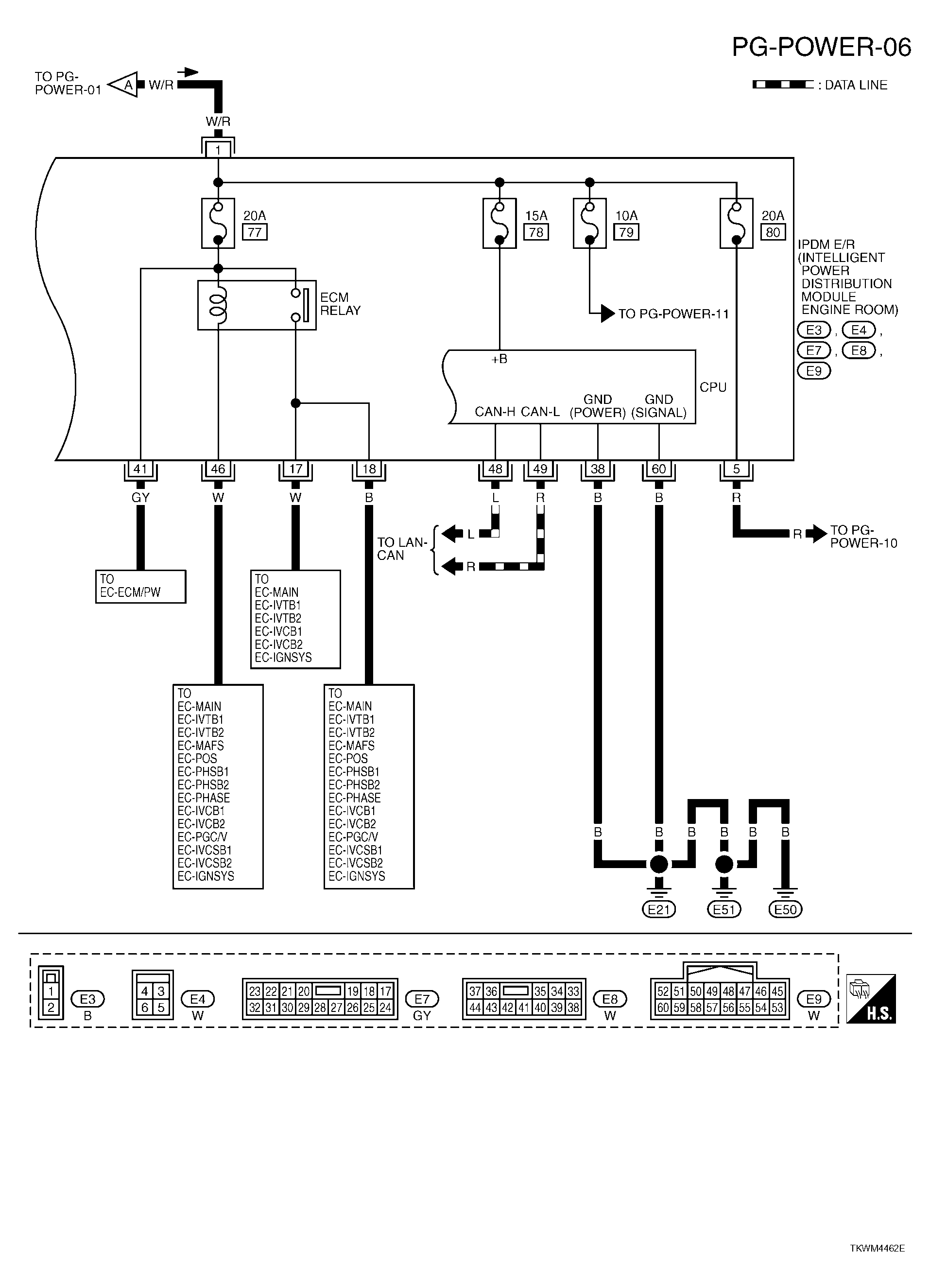

Fig 6: PG-POWER-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
