Accessory Power Supply - Ignition SW. In "Acc" Or "On"

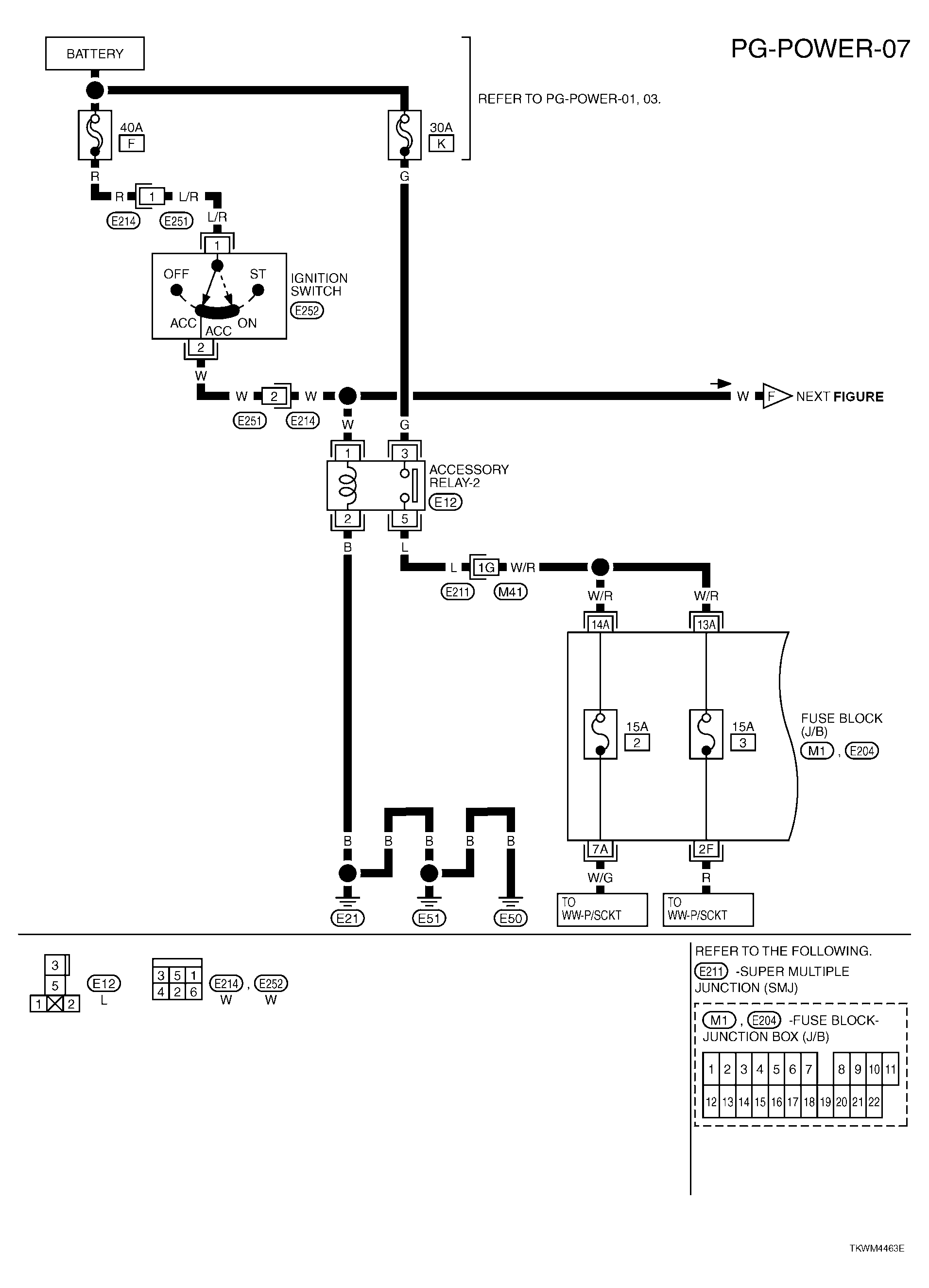

Fig 1: PG-POWER-07 - Wiring Diagram

G04079539

Courtesy of NISSAN MOTOR CO., U.S.A.

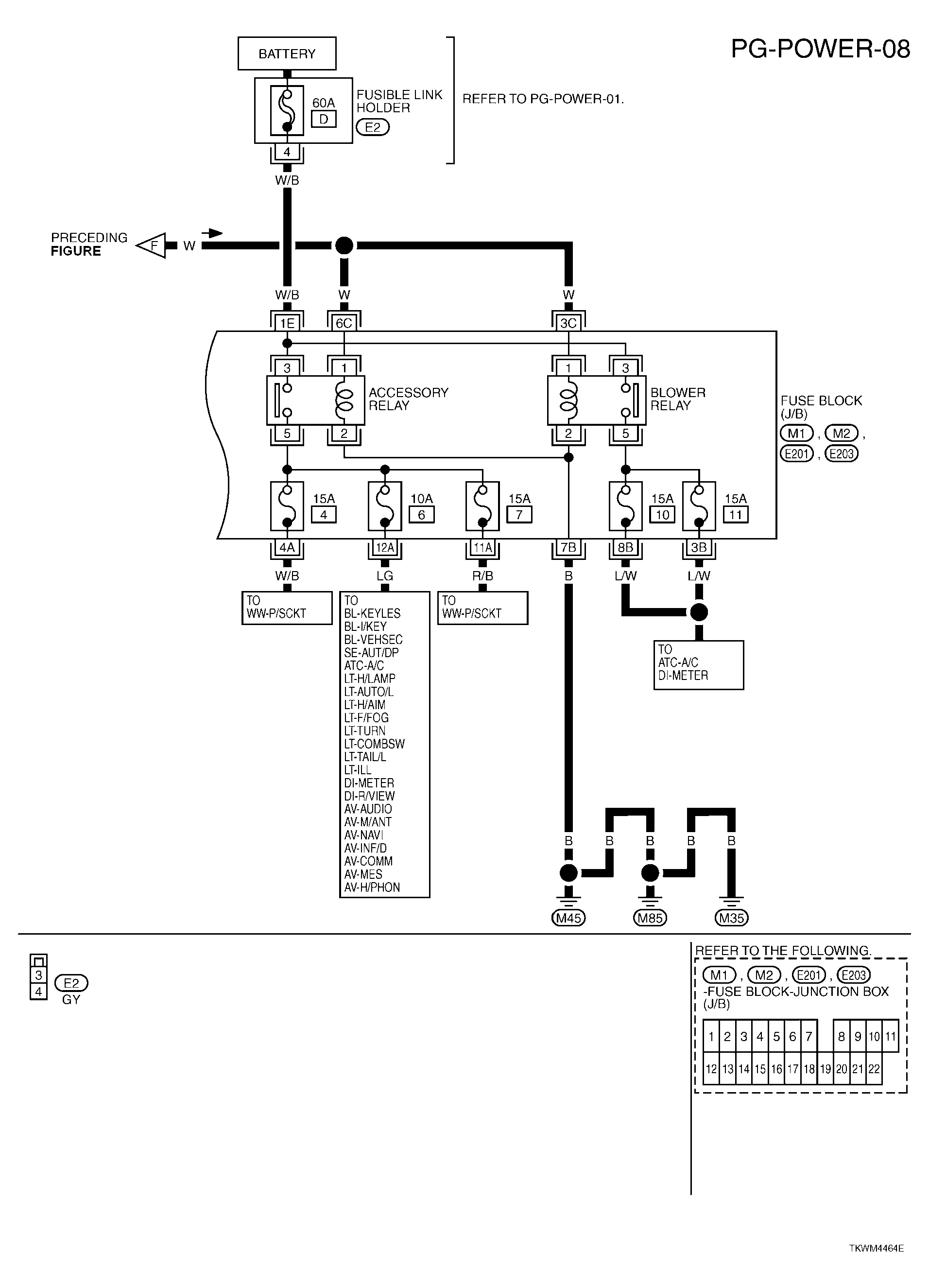

Fig 2: PG-POWER-08 - Wiring Diagram

G04079540

Courtesy of NISSAN MOTOR CO., U.S.A.
