Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Power Supply, Ground & Circuit Elements
>>
Harness
>>
Harness Layout
>>
Main Harness
Main Harness

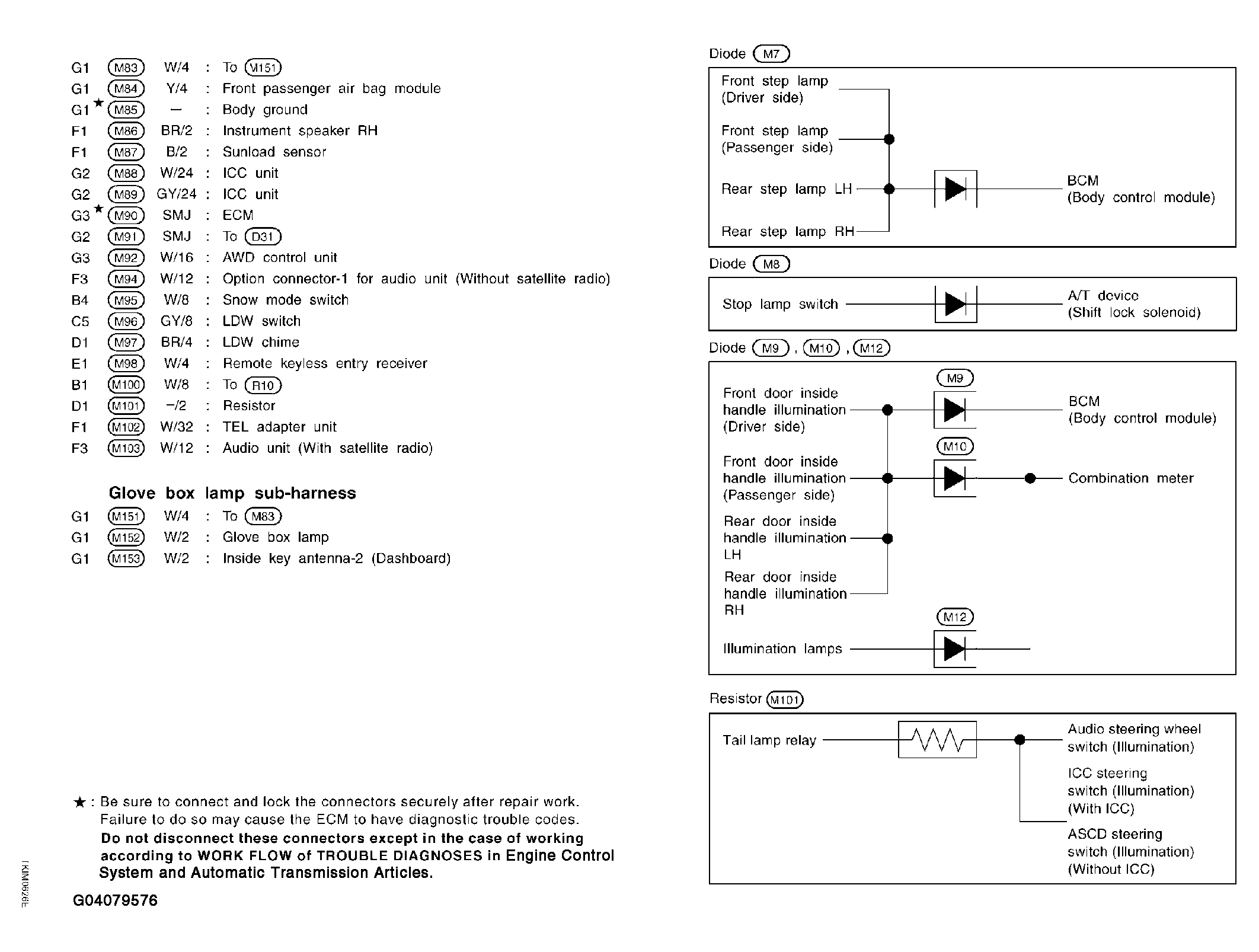

Fig 1: Identifying Main Harness And Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

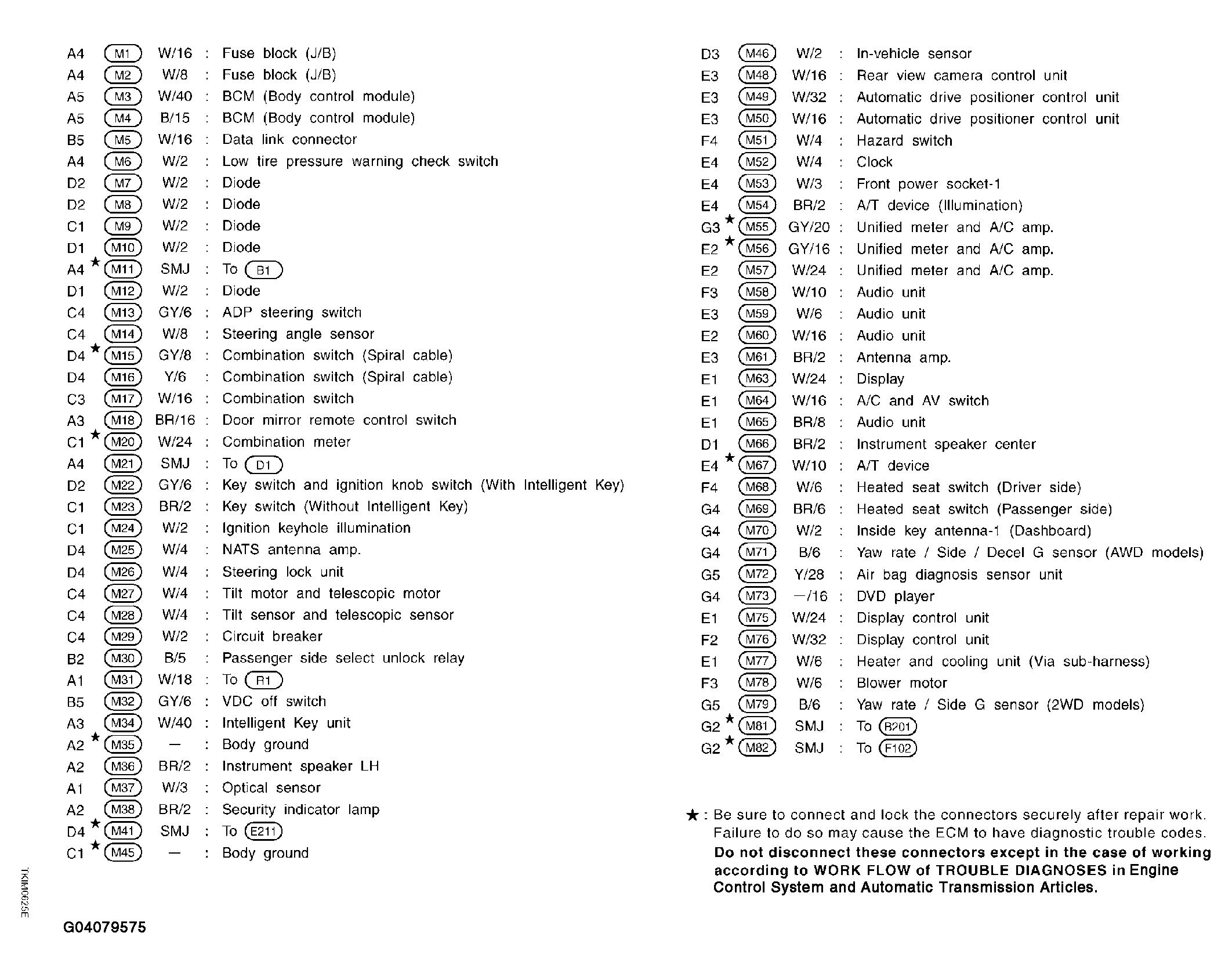

Fig 2: Identifying Main Harness And Connector (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

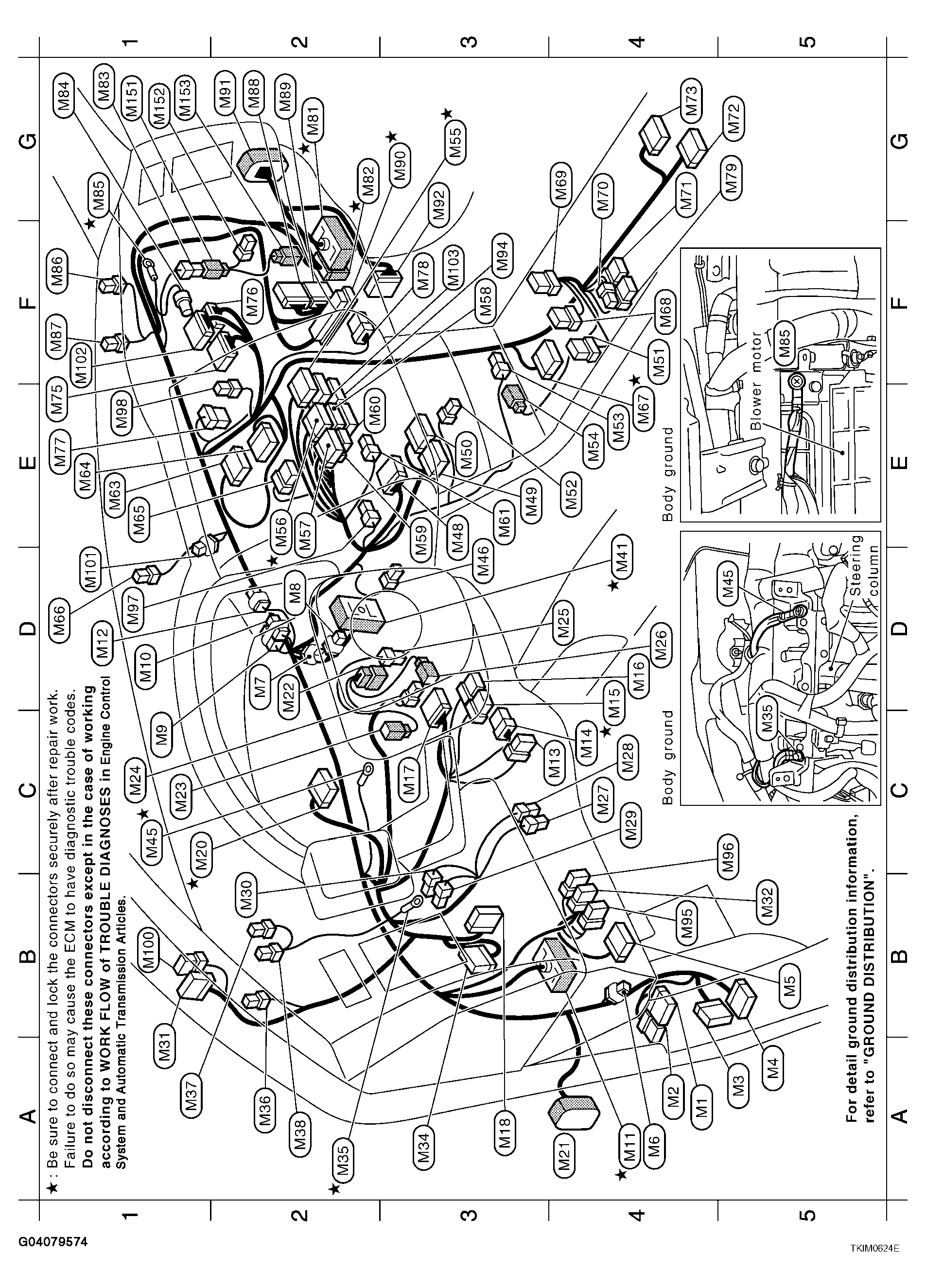

Fig 3: Identifying Main Harness And Connector (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
