Front Door Harness
>>
RH Side
RH Side

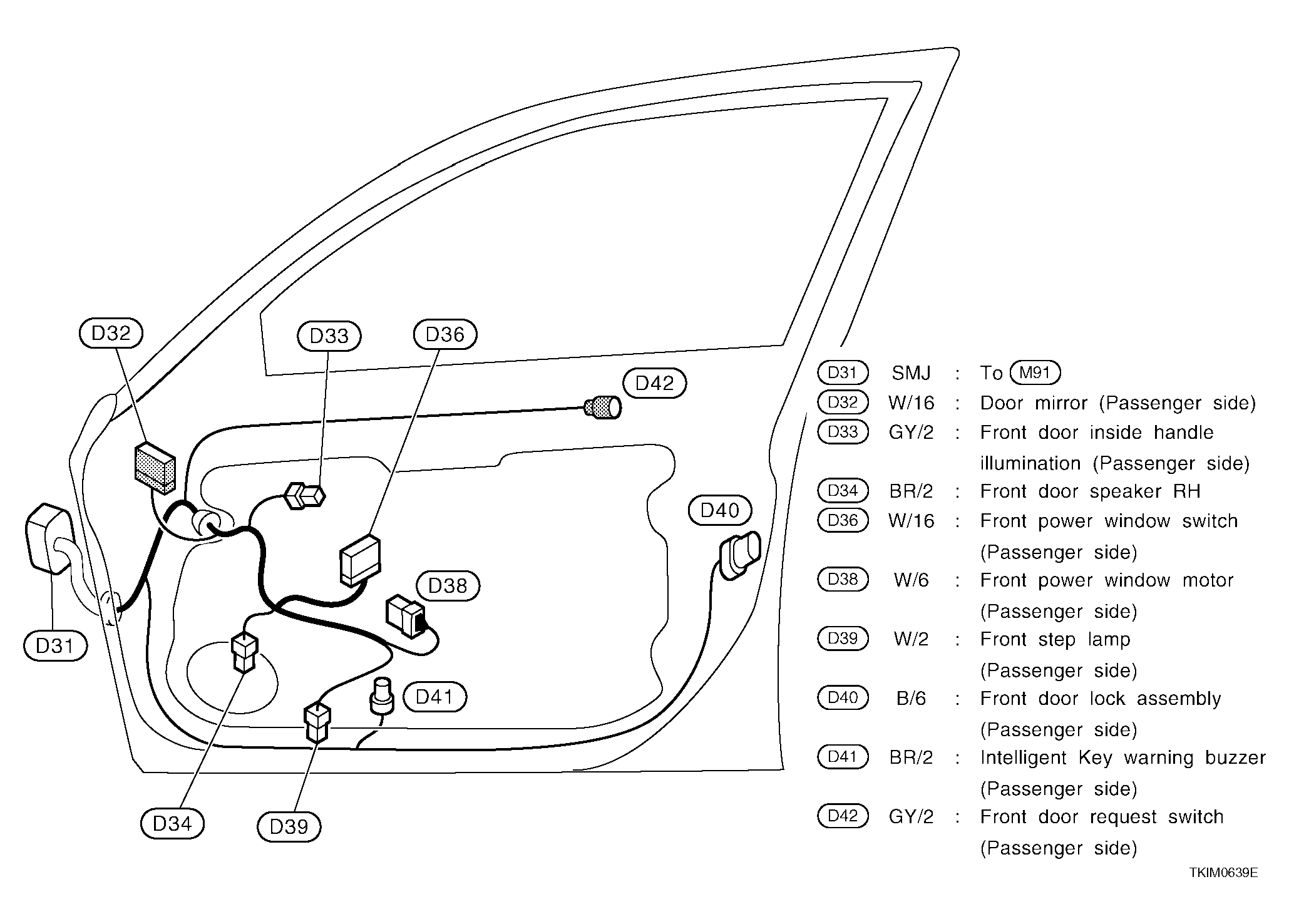

Fig 1: Identifying Front Door Harness And Connector - RH Side
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
