Infiniti
>>
2006
>>
FX35 RWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Power Supply, Ground & Circuit Elements
>>
Harness
>>
Harness Layout
>>
Engine Room Harness
>>
Engine Compartment
Engine Compartment

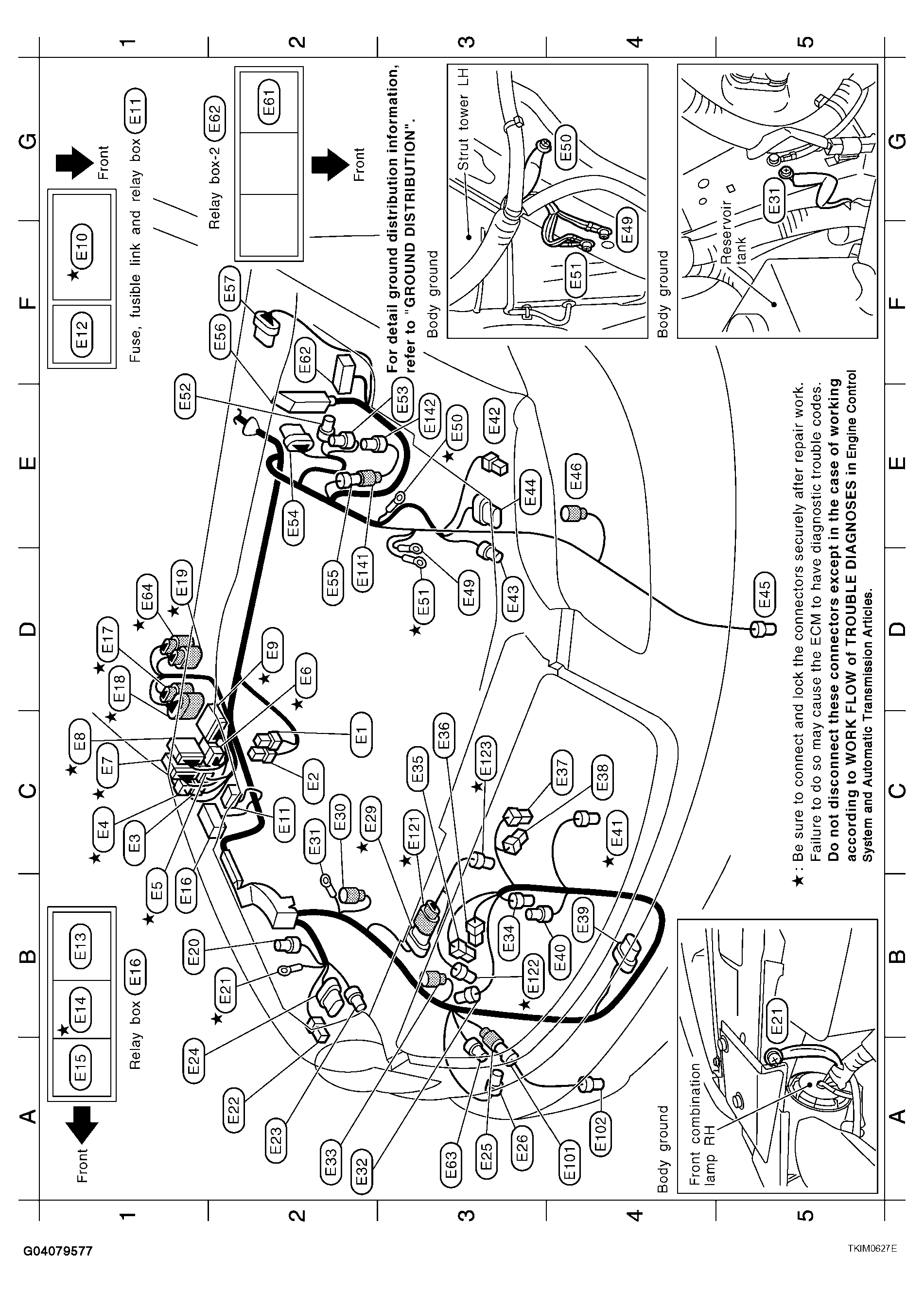

Fig 1: Identifying Engine Room Harness And Connector - Engine Compartment (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

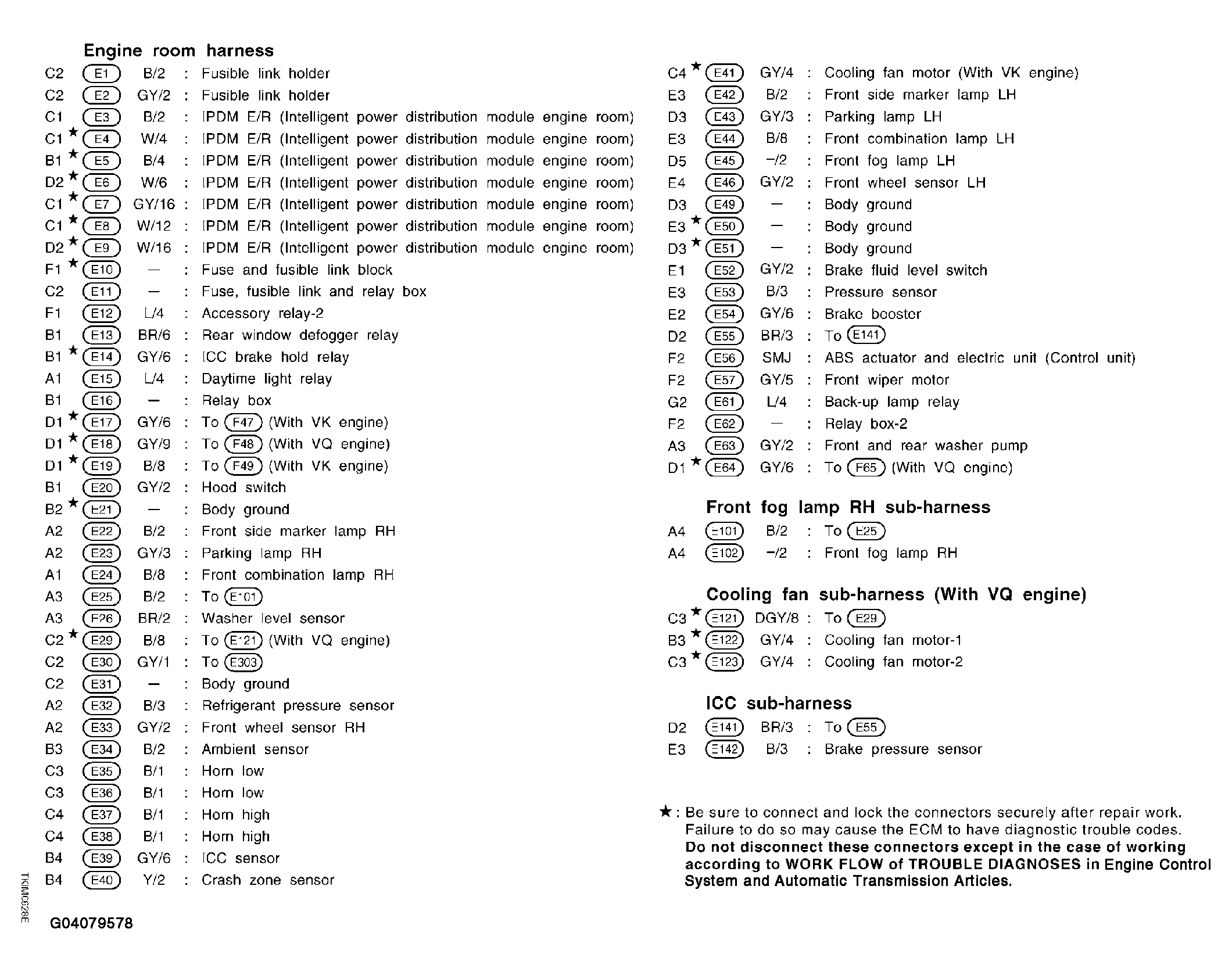

Fig 2: Identifying Engine Room Harness And Connector - Engine Compartment (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
