Back Door Harness
Back Door Harness

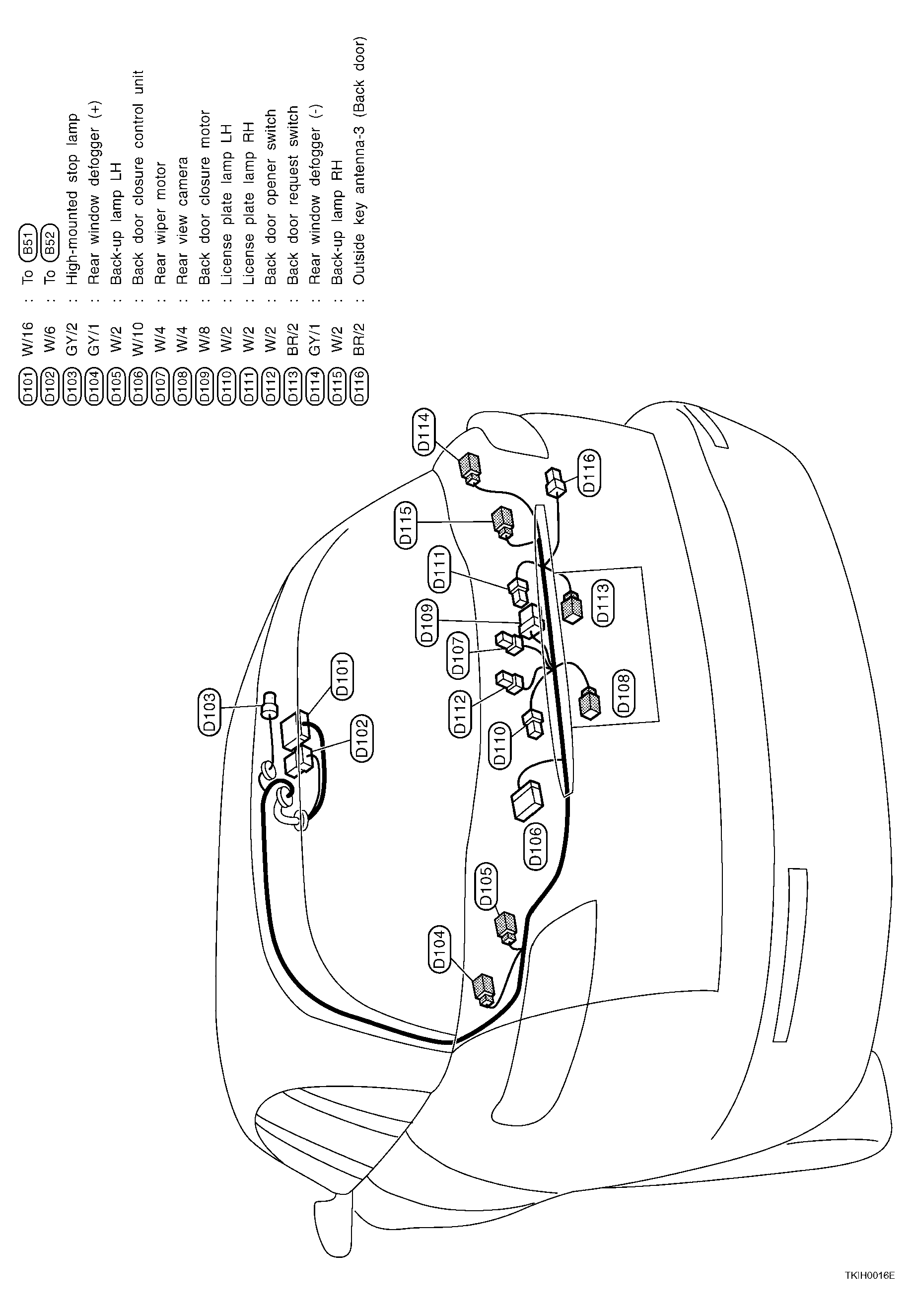

Fig 1: Identifying Back Door Harness And Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
