Removal and Installation: Inspection

Inspect propeller shaft runout at measuring points. If runout exceeds specifications, replace propeller shaft assembly. For measuring point, refer to "PROPELLER SHAFT RUNOUT MEASURING POINT ".

Fig 1: Inspecting Propeller Shaft Runout At Measuring Points
Courtesy of NISSAN MOTOR CO., U.S.A.

Propeller shaft runout limit : 0.8 mm (0.031 in)
As shown in the figure, while fixing yoke on one side, check axial play of joint. If outside the standard, replace relevant propeller shaft.

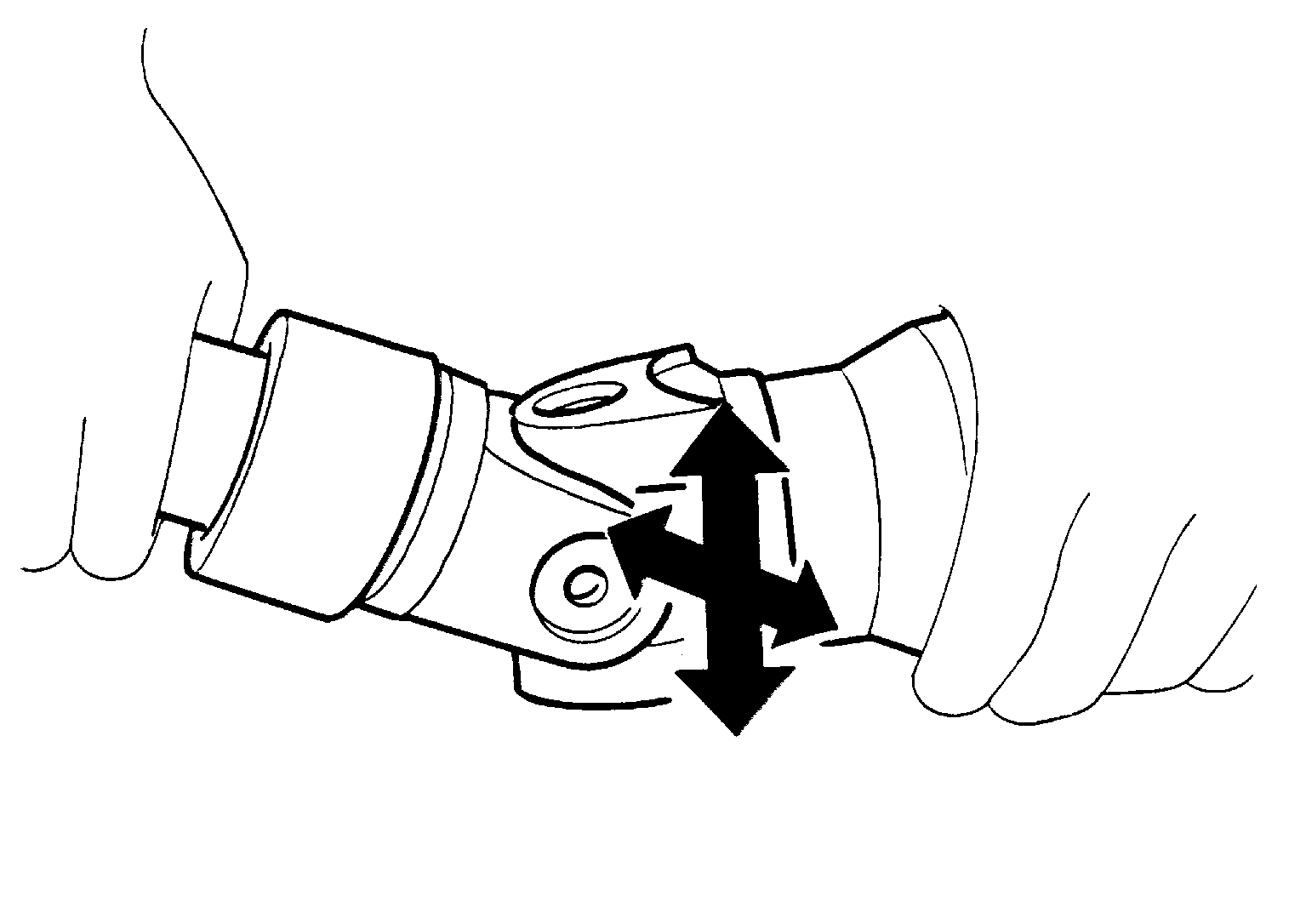

Fig 2: Checking Axial Play Of Joint
Courtesy of NISSAN MOTOR CO., U.S.A.

Journal axial play : 0 mm (0 in)
Check propeller shaft for bend and damage. If damage is detected, replace relevant propeller shaft.
CAUTION: Do not disassemble joints.
Check center bearing for noise and damage. If noise or damage is detected, replace center bearing. Refer to "DISASSEMBLY AND ASSEMBLY OF CENTER BEARING ".
