Removal and Installation: Removal

Remove center muffler with a power tool. Refer to "EXHAUST SYSTEM ".
Remove rear wheel sensor. Refer to "WHEEL SENSORS ".
Remove drive shaft from final drive. Then suspend it by wire etc. Refer to "REAR DRIVE SHAFT ".
Install attachment to side flange, and then pull out the side flange with the sliding hammer.

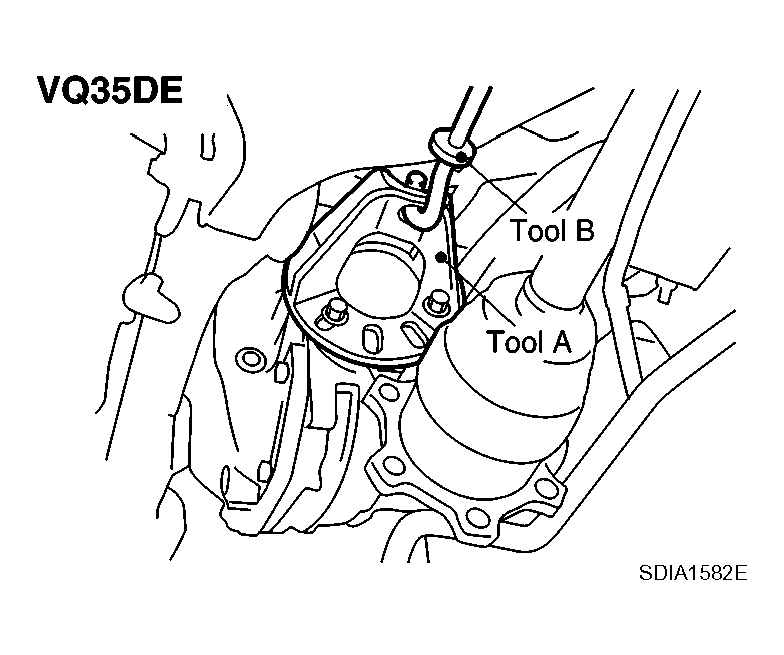

Fig 1: Pulling Out Side Flange (VQ35DE MODELS)
Courtesy of NISSAN MOTOR CO., U.S.A.
- For VQ35DE models
  Tool number A: KV40104100 ( - )

  B: ST36230000 (J-25840-A)

  NOTE: Circular clip installation position: Final drive side
- For VK45DE models
  Tool number A: KV40101000 ( - )

  B: ST36230000 (J-25840-A)

  NOTE: Circular clip installation position: Final drive side

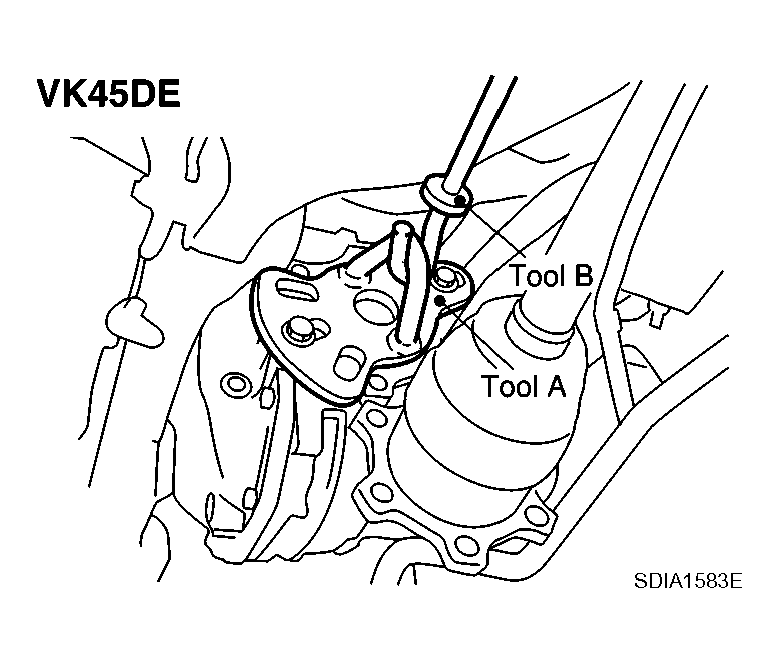

  Fig 2: Pulling Out Side Flange (VK45DE MODELS)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side oil seal, using a flat-bladed screwdriver.

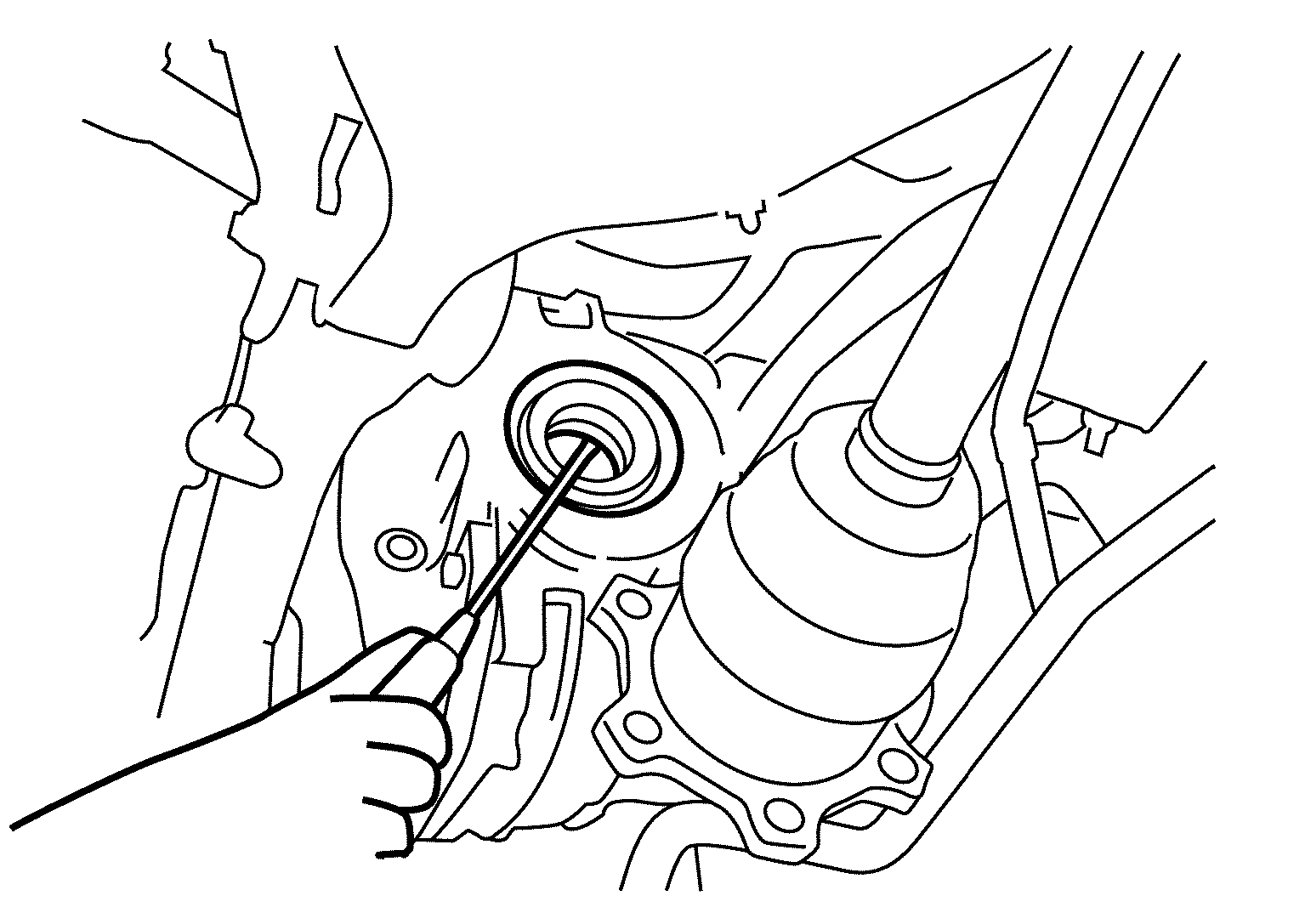

Fig 3: Removing Side Oil Seal, Using Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage gear carrier.
