Removal and Installation: Removal

Right Side:

1. Remove the front drive shaft. Refer to "REMOVAL AND INSTALLATION (RIGHT SIDE) ".
2. Remove the side oil seal using a flat-bladed screwdriver.
   CAUTION: Be careful not to damage gear carrier.

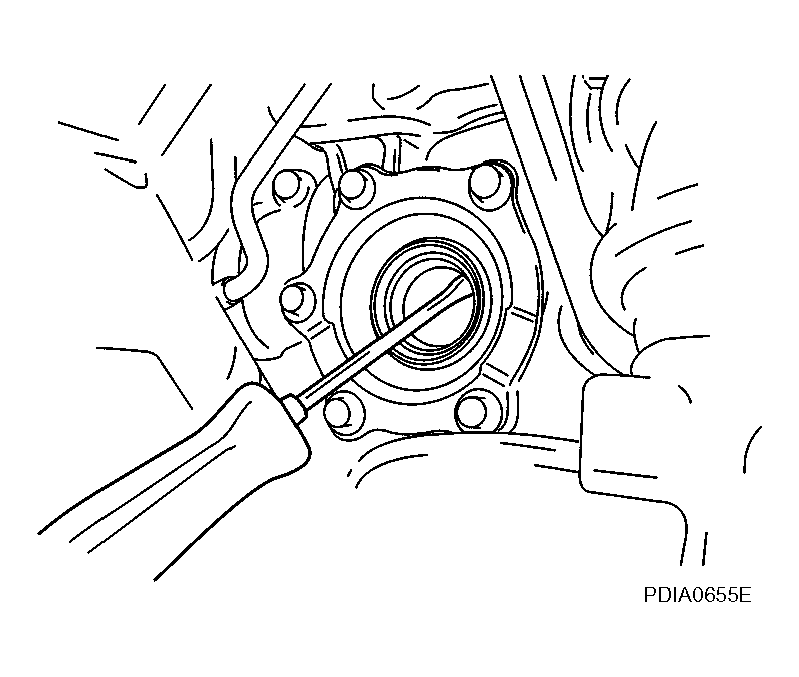

   Fig 1: Removing Side Oil Seal Using Flat-Bladed Screwdriver

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Left Side:

1. Remove the front final drive assembly from vehicle. Refer to "REMOVAL AND INSTALLATION (VQ35DE MODELS) " or "REMOVAL AND INSTALLATION (VK45DE MODELS) ".
2. Remove the side oil seal using a flat-bladed screwdriver.
   CAUTION: Be careful not to damage gear carrier.
