Changing Differential Gear Oil: Draining

  1. Stop engine.
  2. Remove drain plug (1) and drain gear oil.
  3. Set a gasket on drain plug (1) and install it to final drive assembly and tighten to the specified torque. Refer to "COMPONENTS (VQ35DE MODELS) ", "COMPONENTS (VK45DE MODELS) ".
    CAUTION: Do not reuse gasket.

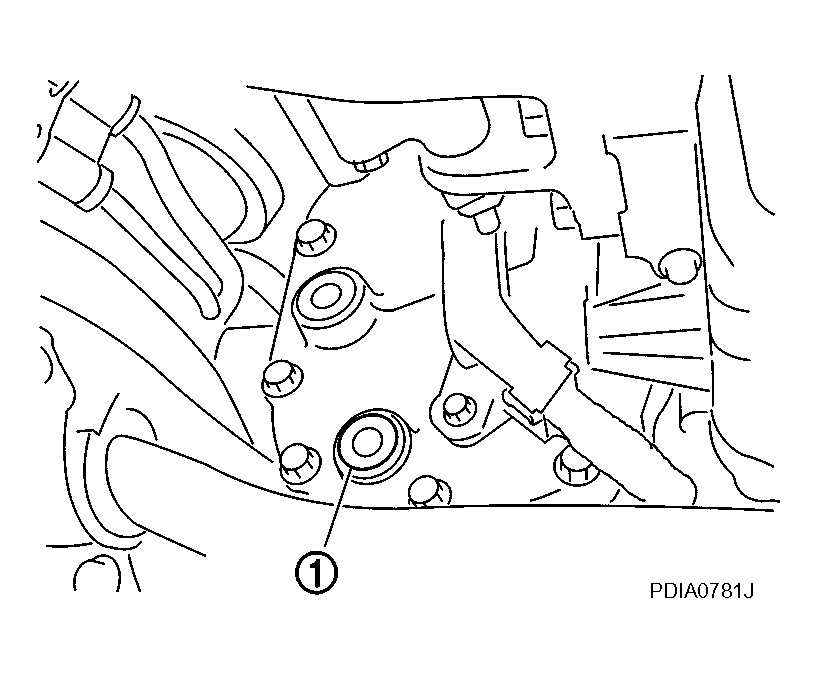

    Fig 1: Identifying Drain Plug
    G04076182Courtesy of NISSAN MOTOR CO., U.S.A.
