Pad Wear Inspection

Check the thickness from check hole on cylinder body. Use a scale for inspection if necessary.

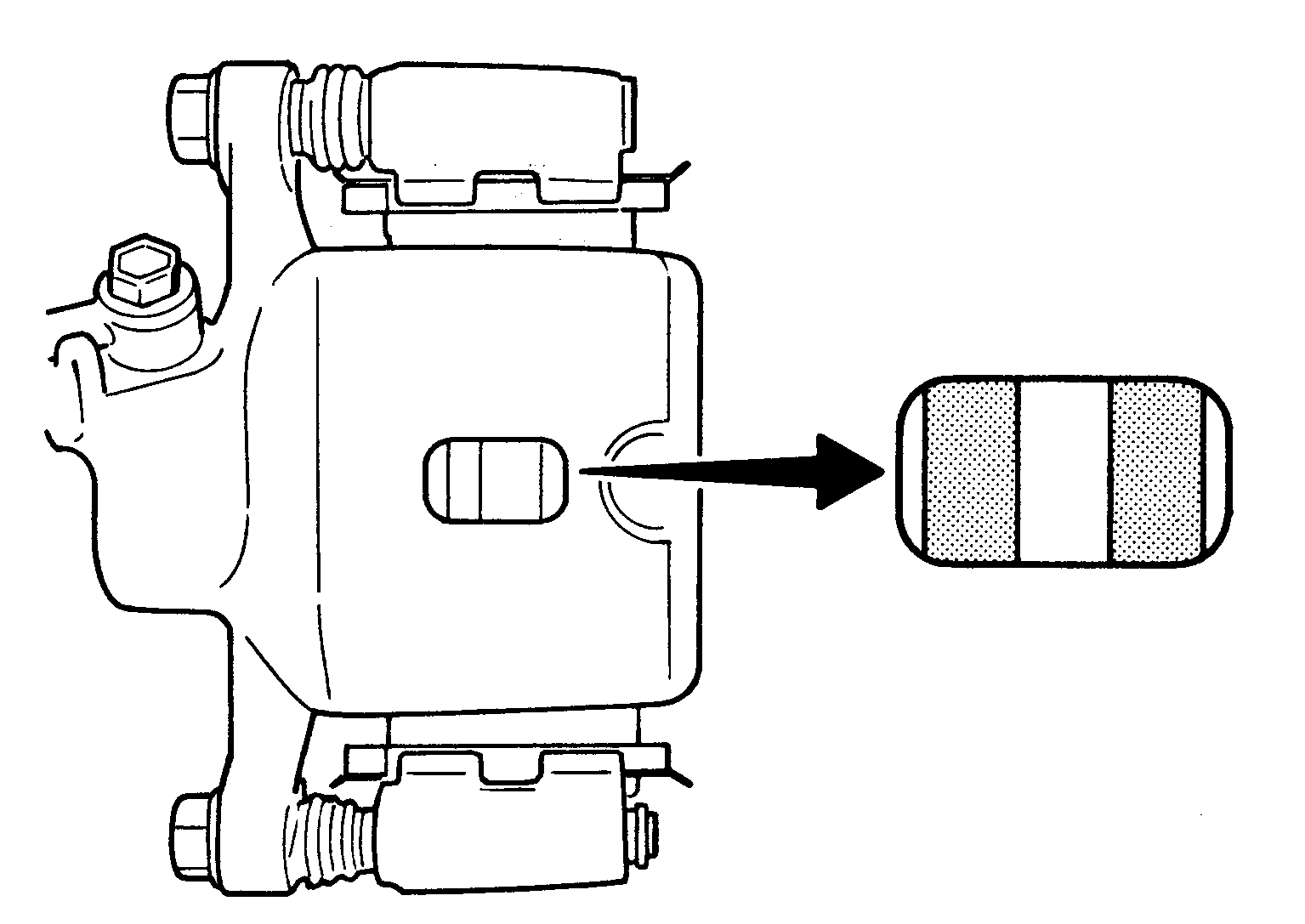

Fig 1: Inspecting Pad Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard thickness : 8.5 mm (0.335 in)

Repair limit thickness : 2.0 mm (0.079 in)
