Removal and Installation of Brake Caliper Assembly: Removal

  1. Remove tires from vehicle with power tool.
  2. Fasten disc rotor using wheel nut.
  3. Drain brake fluid. Refer to "DRAIN AND REFILL ".
  4. Remove union bolts and torque member bolts, and remove brake caliper assembly from the vehicle.
  5. Remove disc rotor.

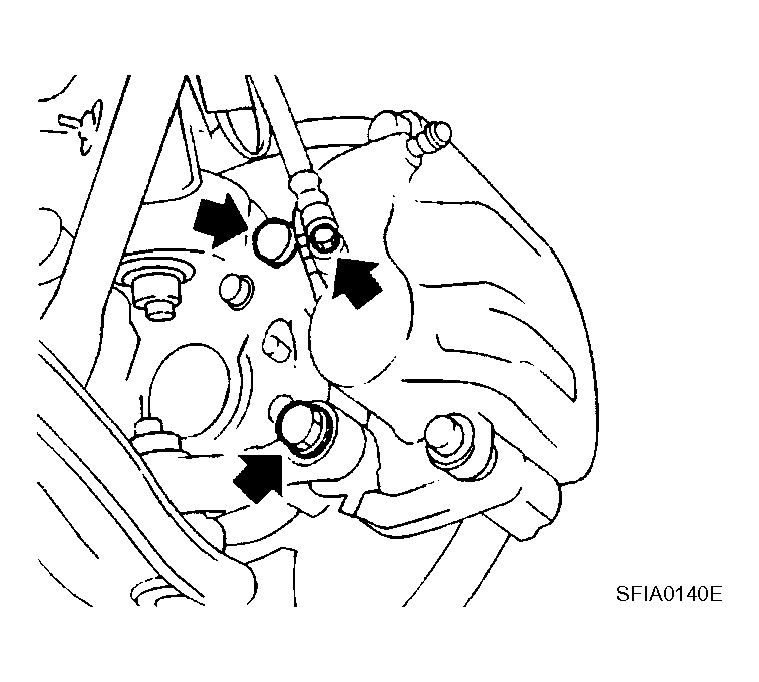

    Fig 1: Identifying Union Bolts And Torque Member Bolts
    G04076644Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Put matching marks on both disc rotor and wheel hub when removing disc rotor.
