Pad Wear Inspection

Check the thickness from check hole on cylinder body. Use a scale for inspection if necessary.

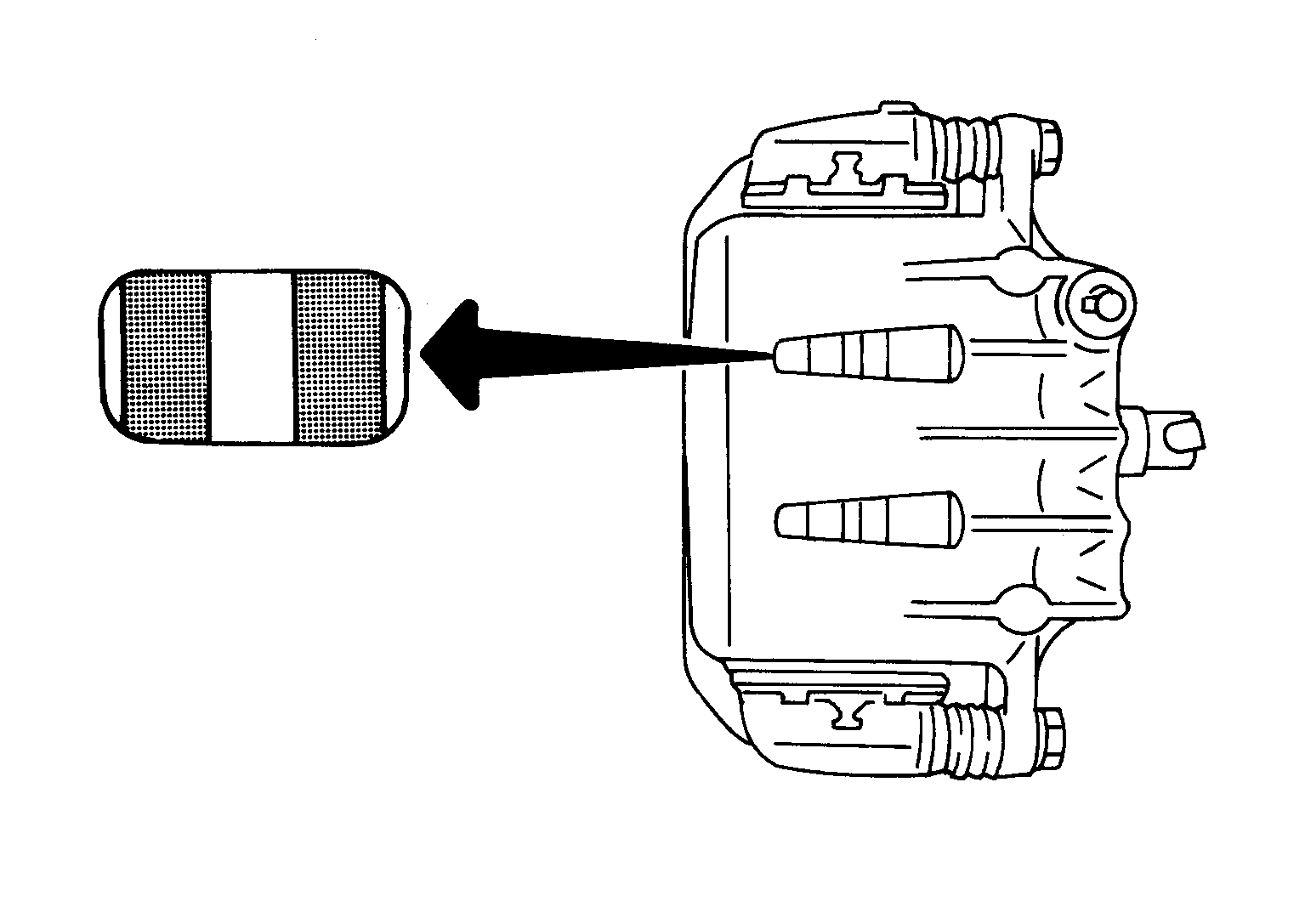

Fig 1: Identifying Thickness From Check Hole On Cylinder Body
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard thickness : 11.0 mm (0.433 in)

Repair limit thickness : 2.0 mm (0.079 in)
