Wiring Diagram - VDC -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

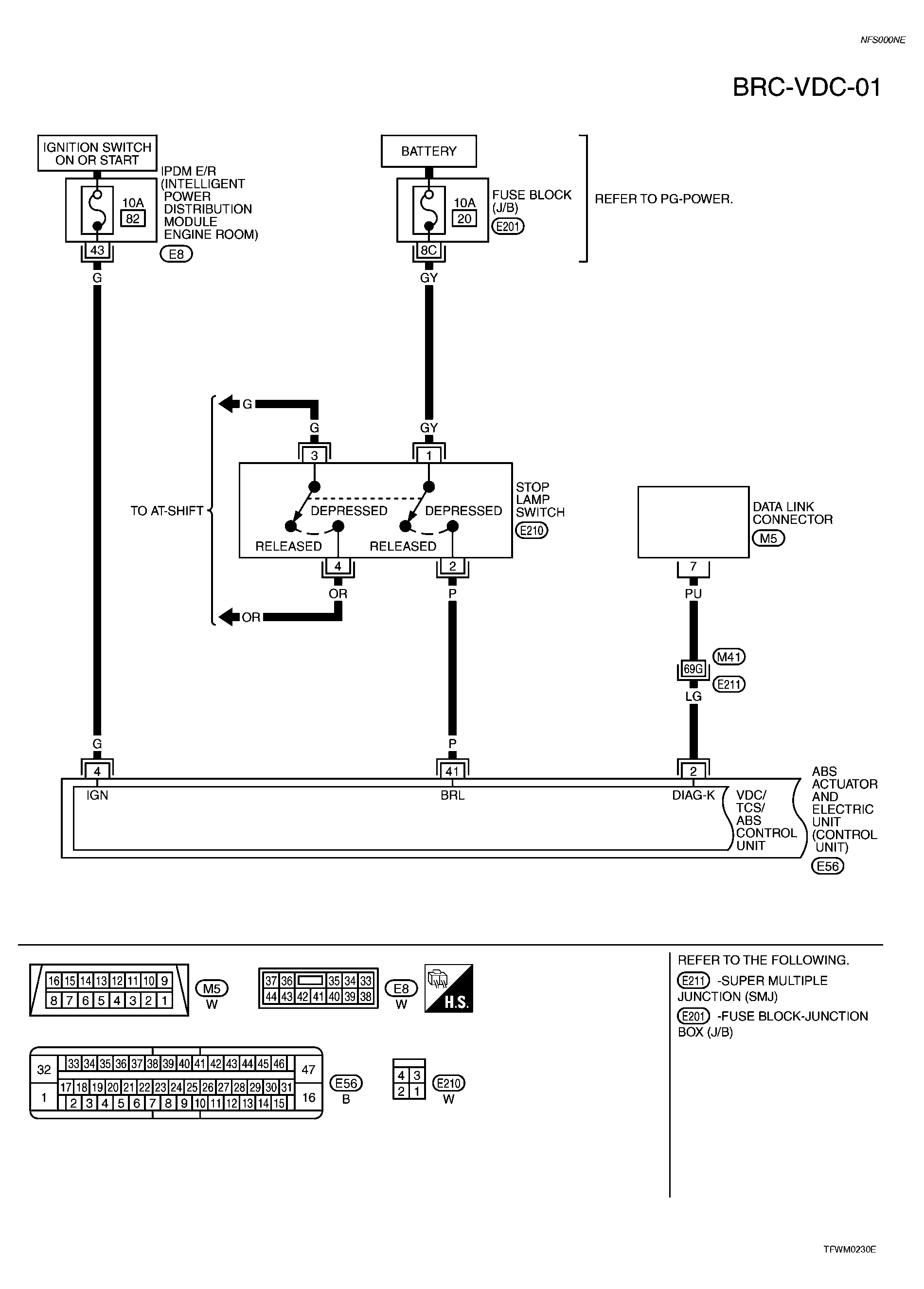

Fig 1: BRC-VDC-01 - Wiring Diagram

G04076692

Courtesy of NISSAN MOTOR CO., U.S.A.

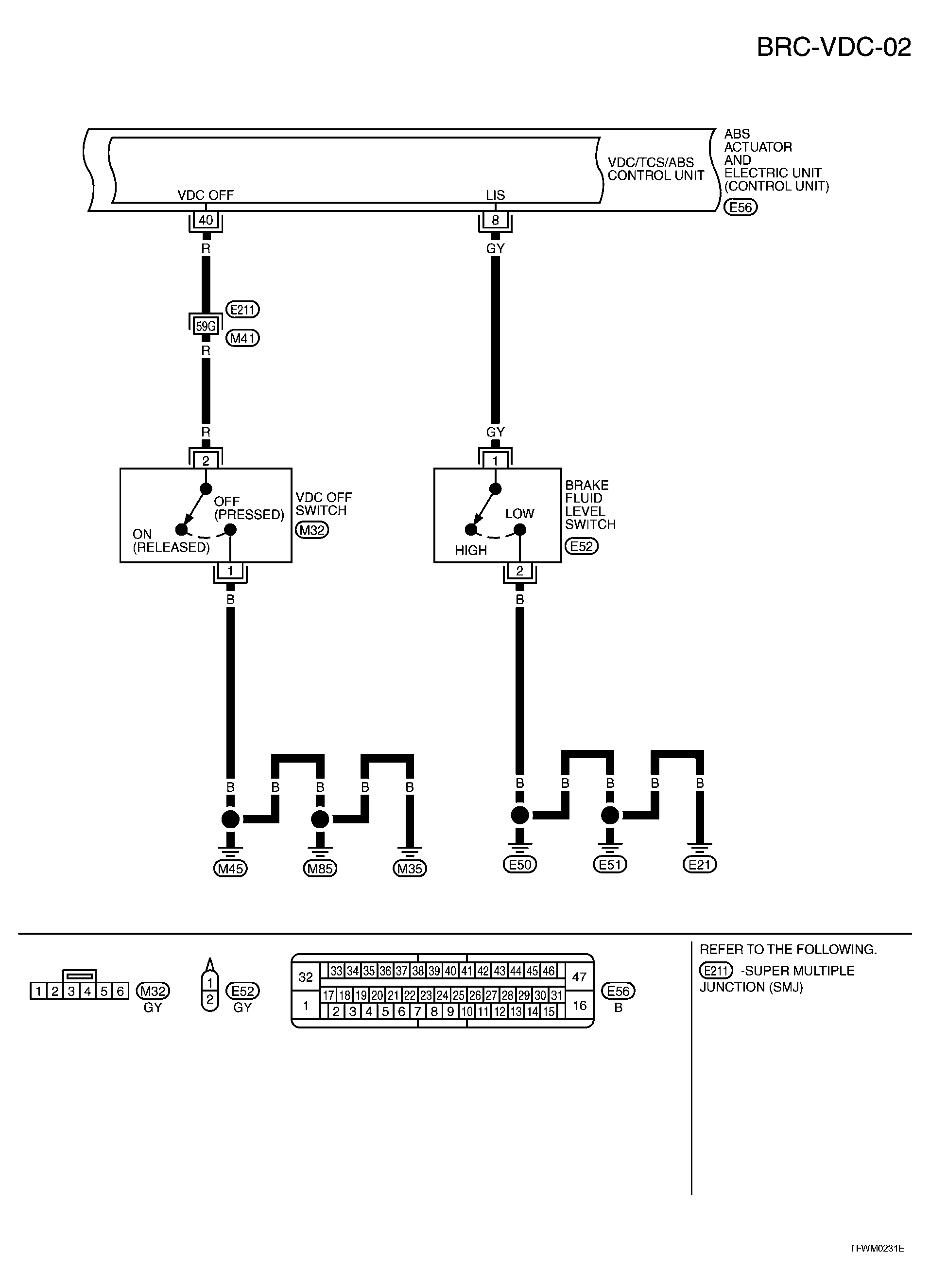

Fig 2: BRC-VDC-02 - Wiring Diagram

G04076693

Courtesy of NISSAN MOTOR CO., U.S.A.

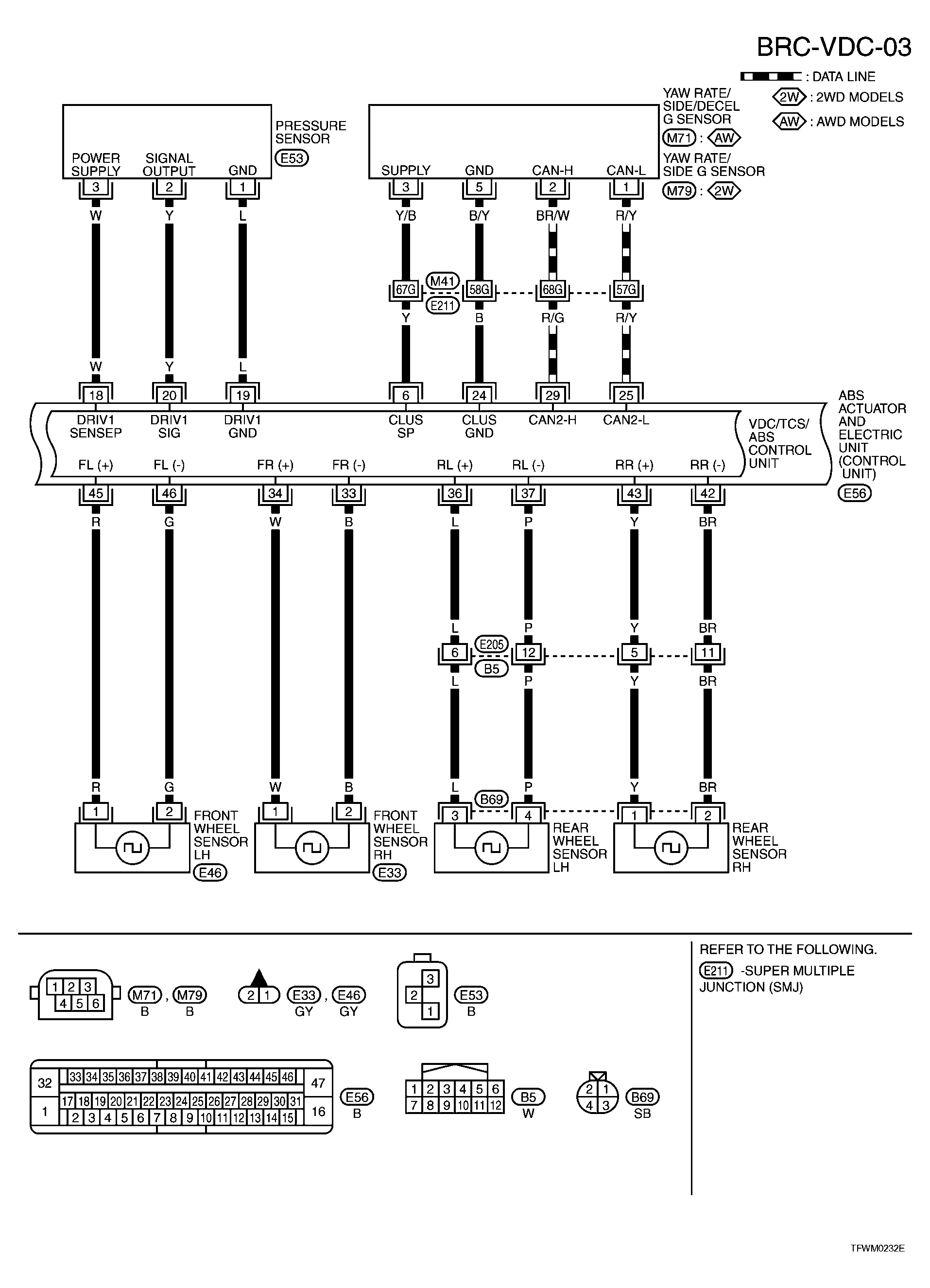

Fig 3: BRC-VDC-03 - Wiring Diagram

G04076694

Courtesy of NISSAN MOTOR CO., U.S.A.

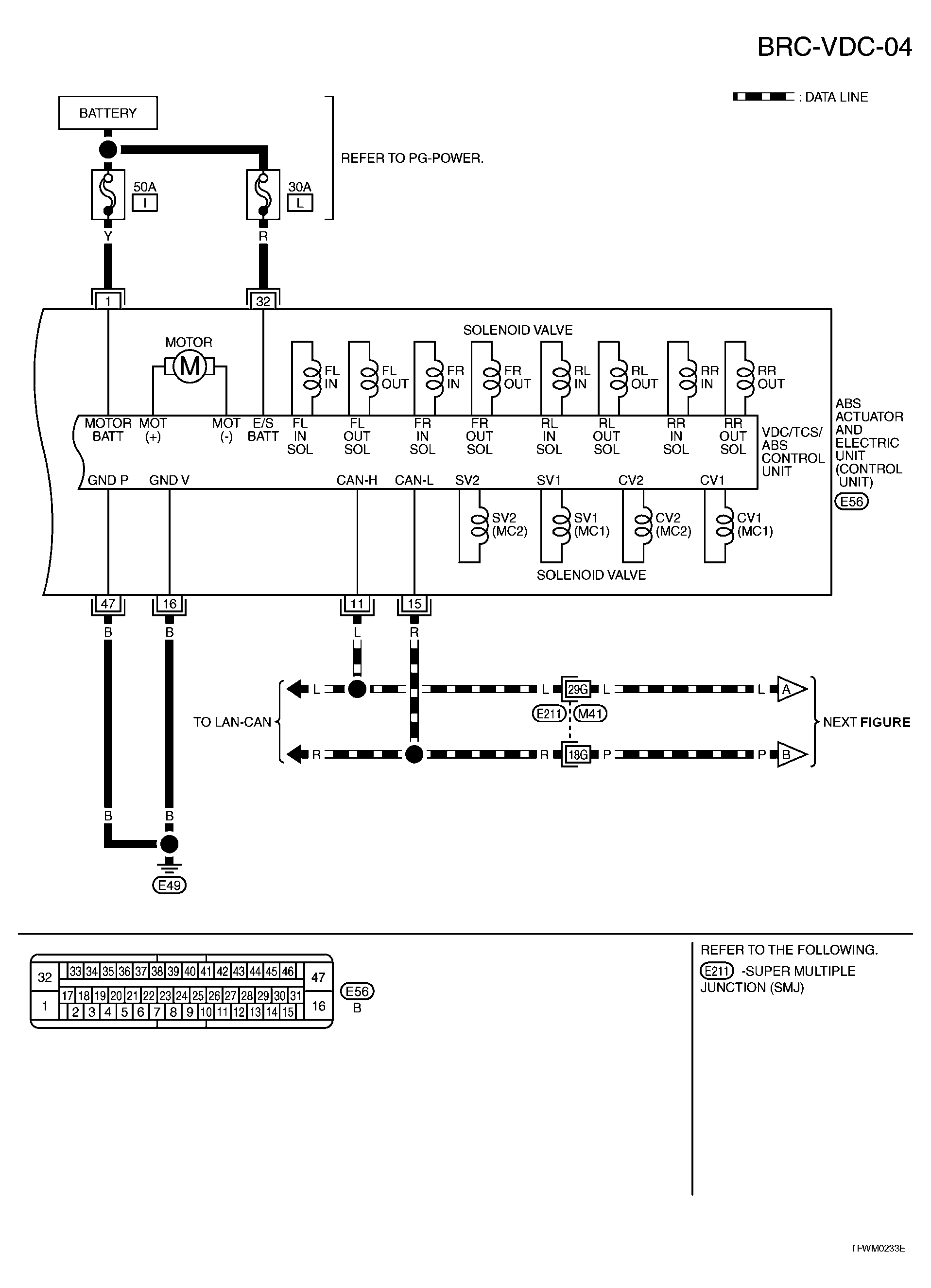

Fig 4: BRC-VDC-04 - Wiring Diagram

G04076695

Courtesy of NISSAN MOTOR CO., U.S.A.

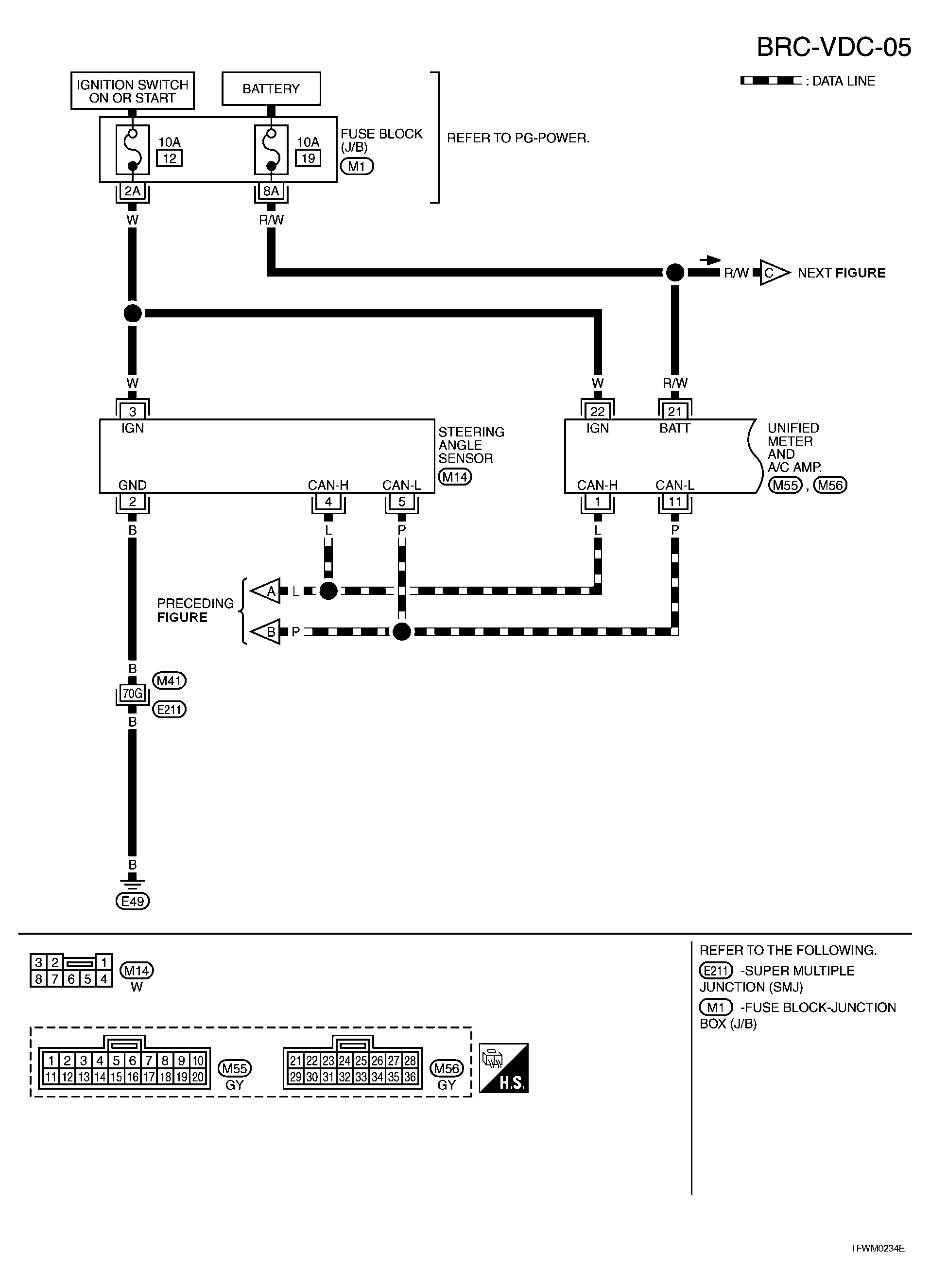

Fig 5: BRC-VDC-05 - Wiring Diagram

G04076696

Courtesy of NISSAN MOTOR CO., U.S.A.

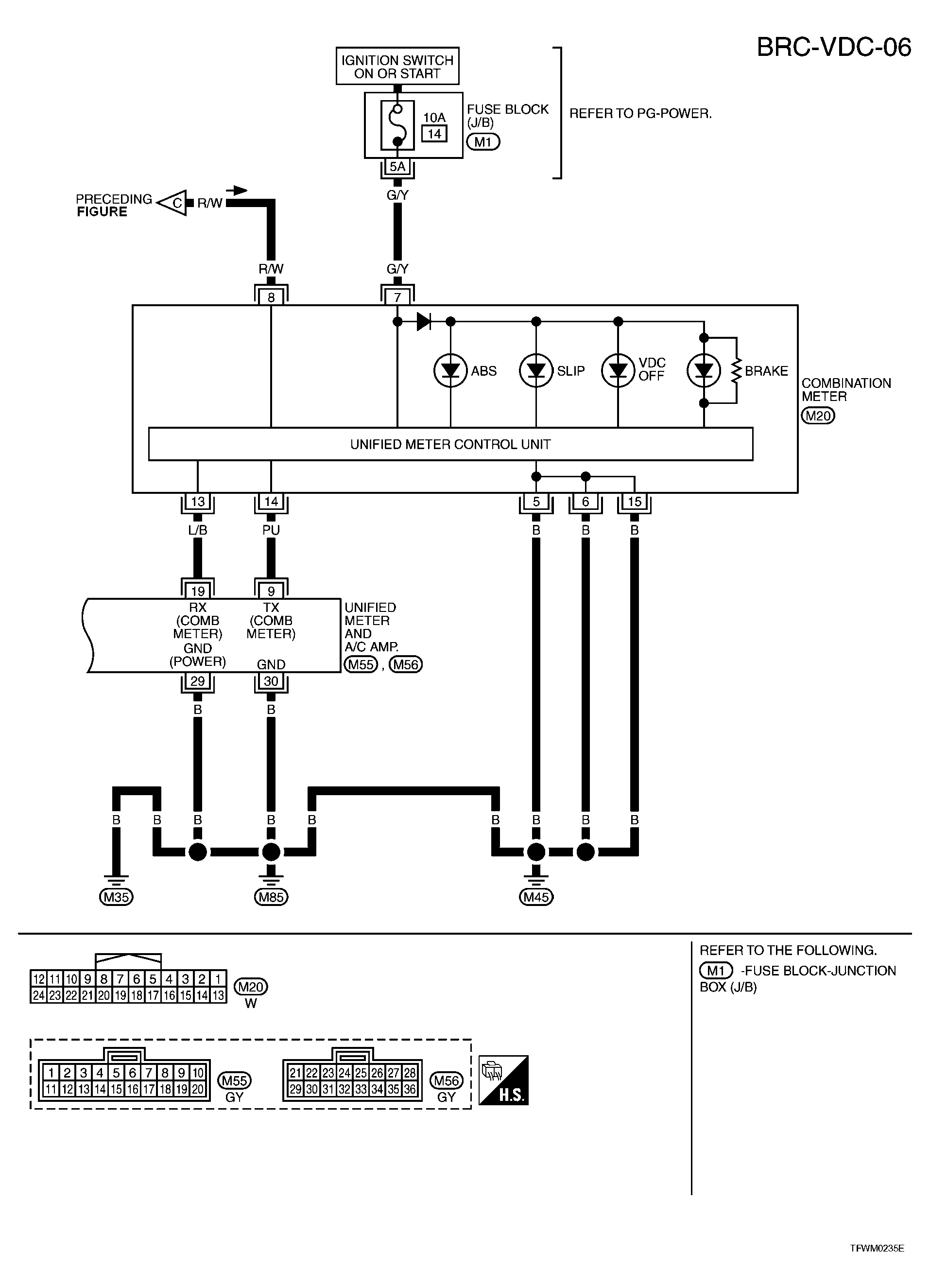

Fig 6: BRC-VDC-06 - Wiring Diagram

G04076697

Courtesy of NISSAN MOTOR CO., U.S.A.
