Wiring Diagram - MIRROR -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

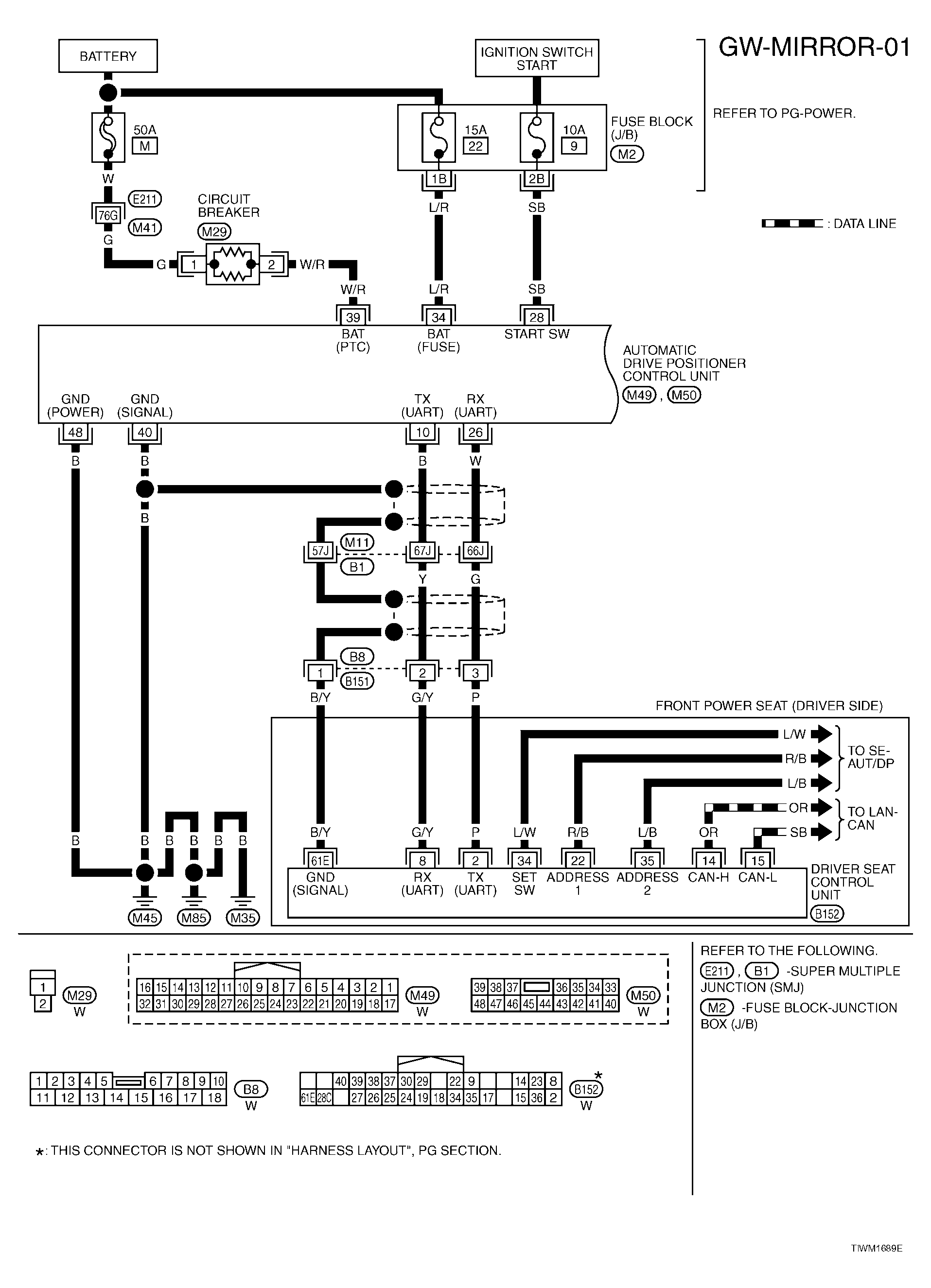

Fig 1: GW-MIRROR-01 - Wiring Diagram
G04077461Courtesy of NISSAN MOTOR CO., U.S.A.

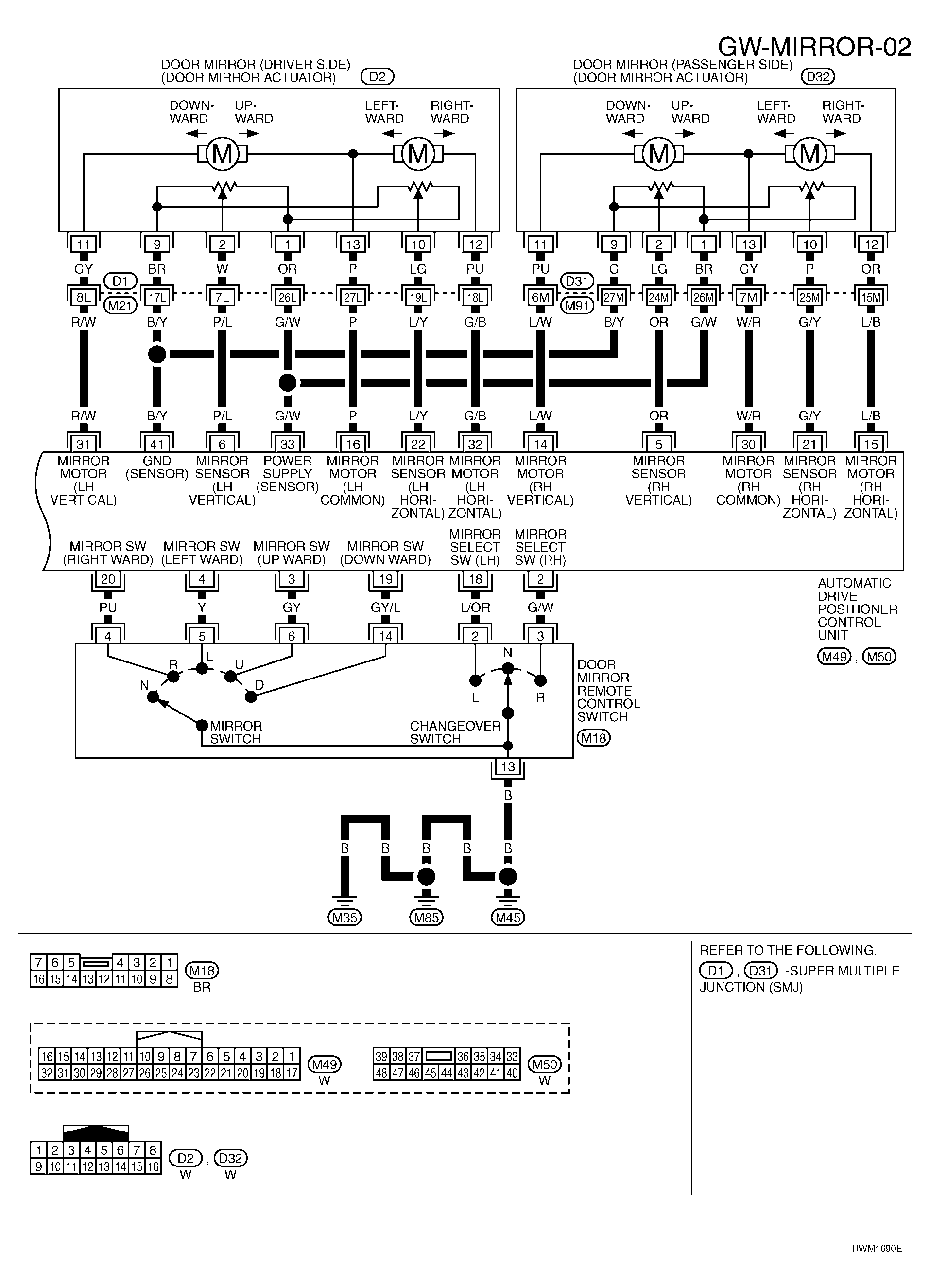

Fig 2: GW-MIRROR-02 - Wiring Diagram
G04077462Courtesy of NISSAN MOTOR CO., U.S.A.
