Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Sunroof
>>
Wiring Diagram - SROOF - NIS001T1
Wiring Diagram - SROOF - NIS001T1
For PG, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

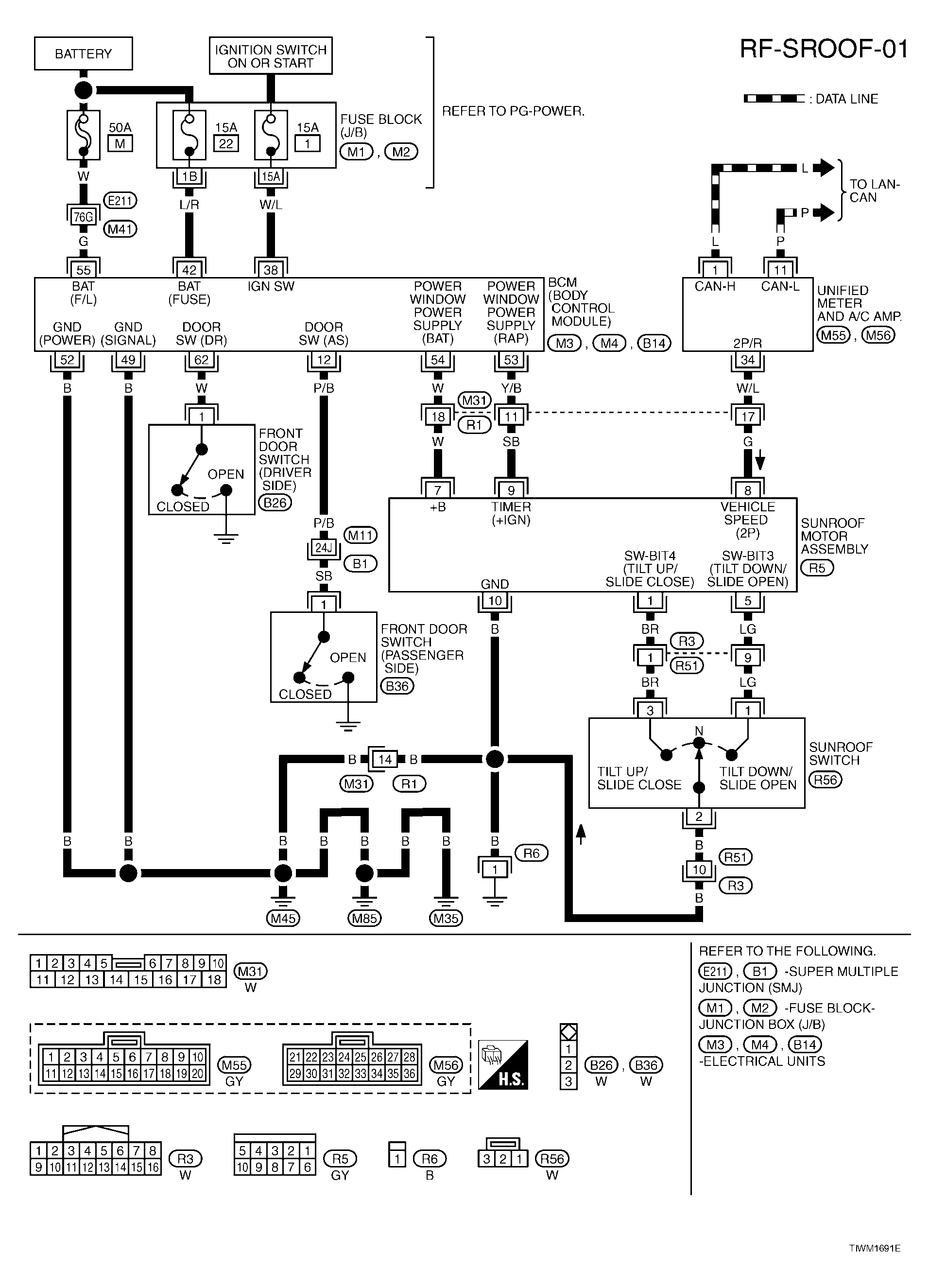

Fig 1: RF-SROOF-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
