Home >> Infiniti >> 2006 >> FX35 RWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sunroof >> Removal and Installation >> Sunshade >> Removal

Removal and Installation: Sunshade: Removal

NOTE: Detaching is possible even with the sunshade attached on the vehicle.
  1. Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove sunshade stopper.
  3. The protection tape is pasted to the sunshade knob.
  4. Pull sunshade out of the rear end of the sunroof frame, and remove it from the frame.
    CAUTION: Do not damage the sunshade and sunshade knob while lifting up a little.

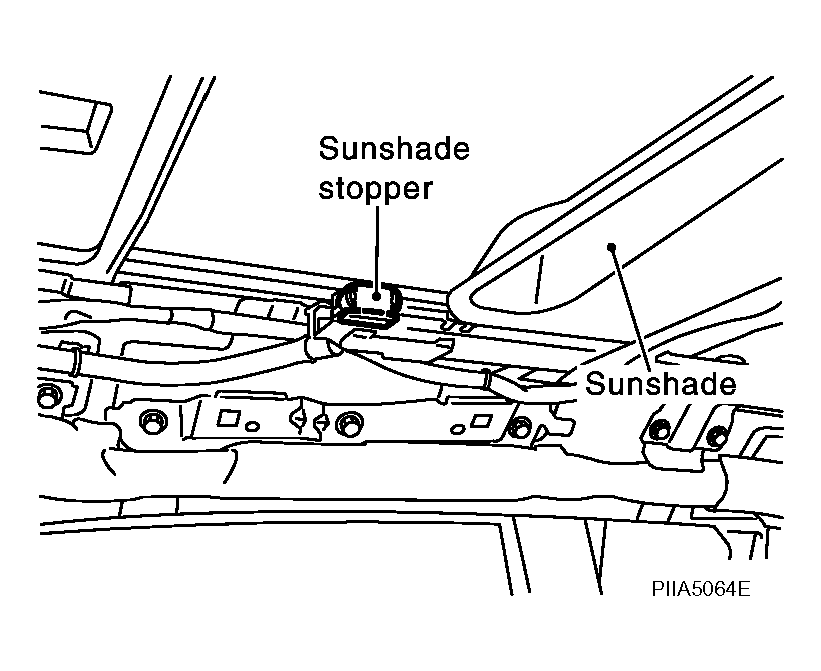

    Fig 1: Identifying Sunshade Stopper
    G04077501Courtesy of NISSAN MOTOR CO., U.S.A.
