Sunroof Motor Assembly: Removal

  1. Remove headlining. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove motor mounting screw.
  3. Disconnect harness connector from sunroof motor assembly, then remove sunroof motor assembly.

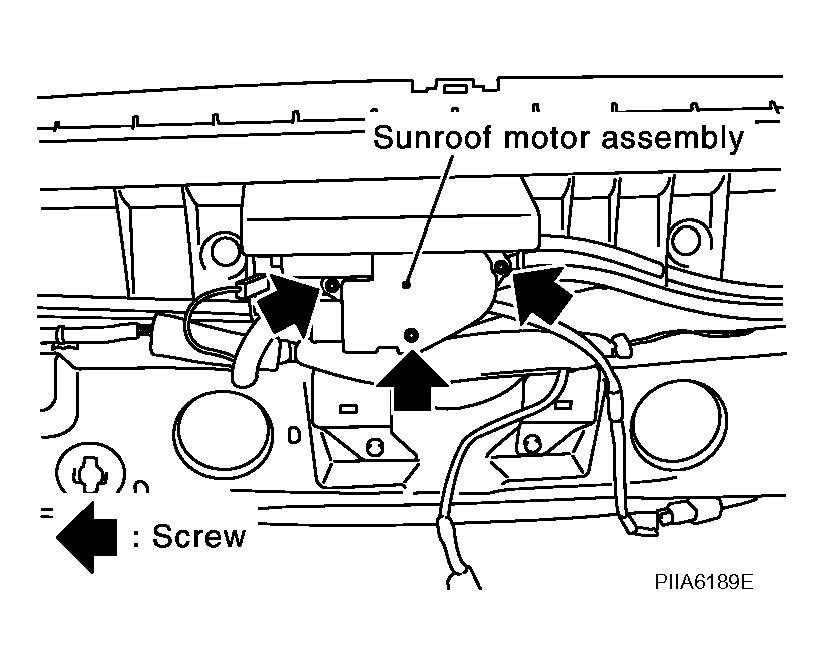

    Fig 1: Identifying Sunroof Motor Assembly
    G04077503Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • When removing the sunroof motor assembly, be sure that the sunroof is in the fully closed position.
    • Do not run the removed sunroof motor assembly as a single unit.
