Wiring Diagram - HSEAT -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

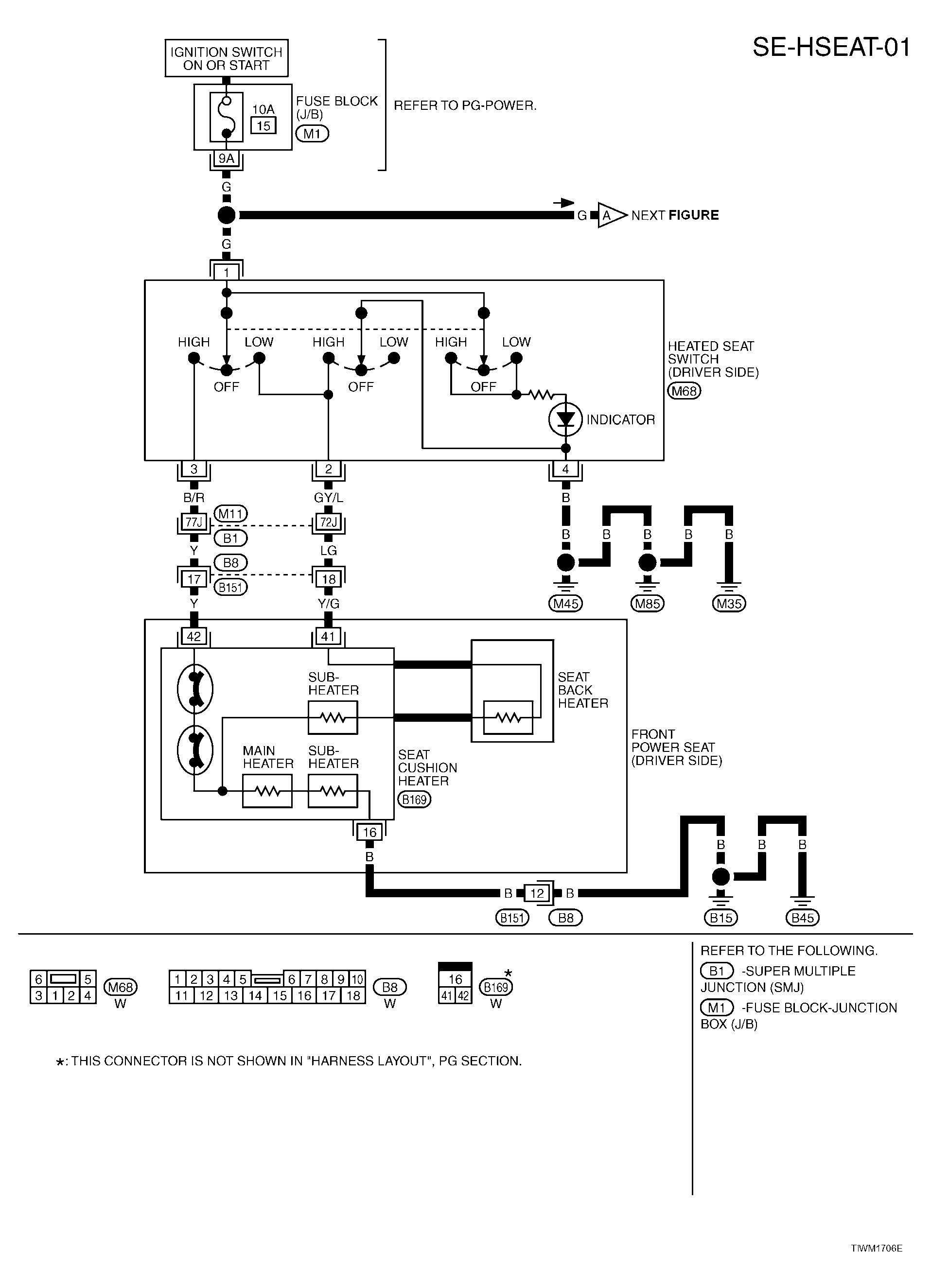

Fig 1: SE-HSEAT-01 - Wiring Diagram
G04077765Courtesy of NISSAN MOTOR CO., U.S.A.

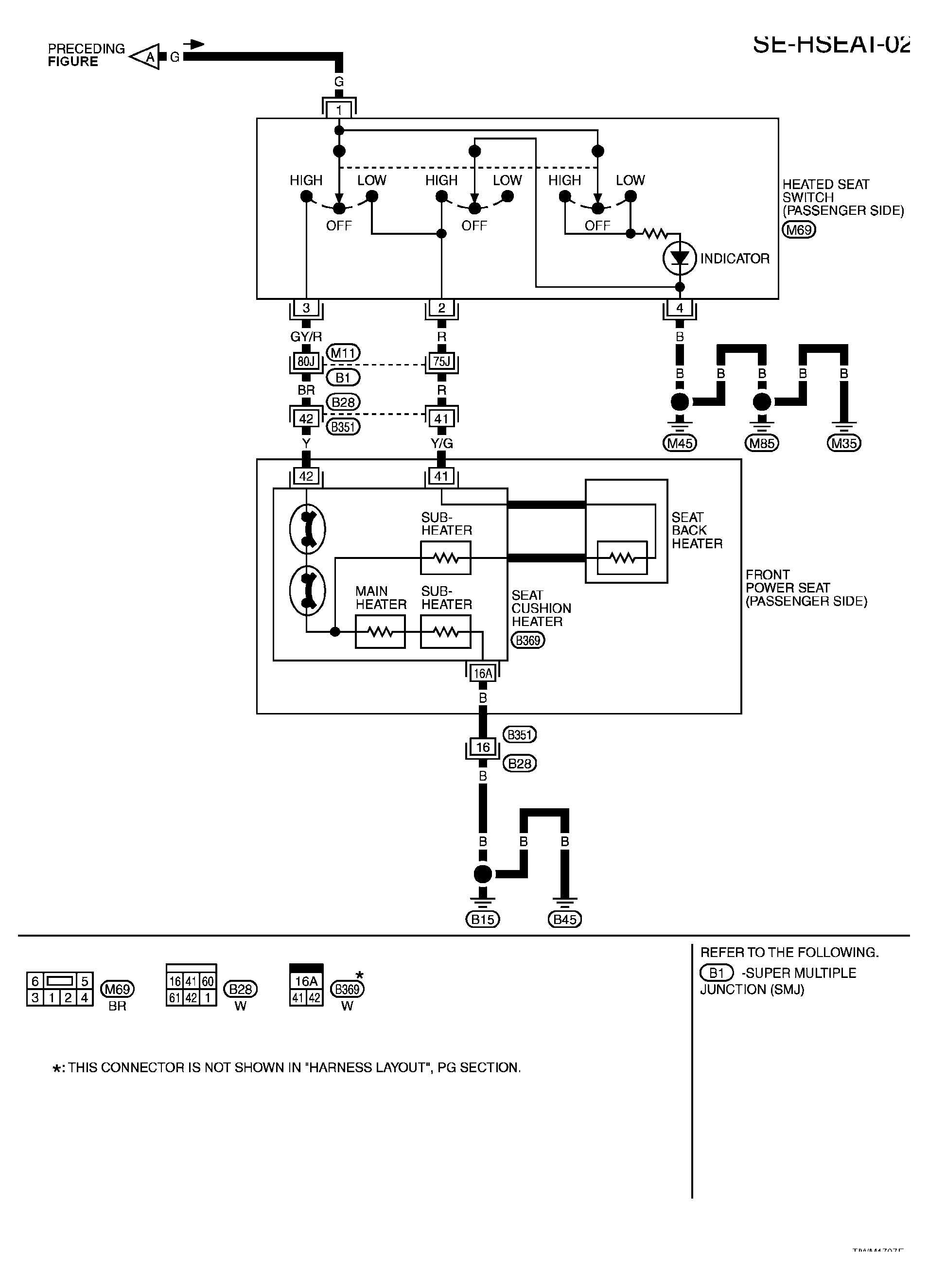

Fig 2: SE-HSEAT-02 - Wiring Diagram
G04077766Courtesy of NISSAN MOTOR CO., U.S.A.
