Removal Of Seat Cushion Trim And Pad

CAUTION: Do not disassemble the component parts of only front passenger seat in the dotted lines shown in the figure. Refer to FRONT SEAT .

Remove the seat cushion inner finisher.

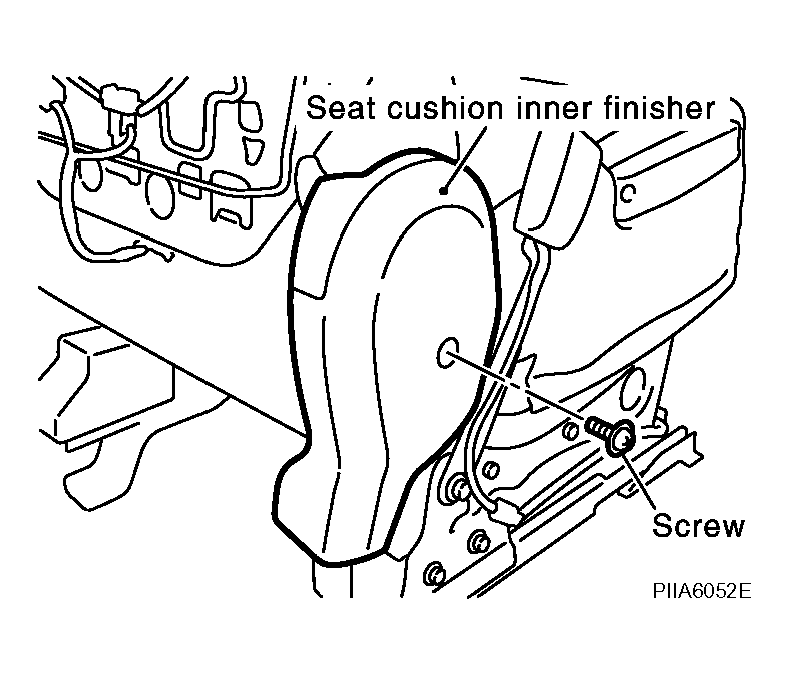

Fig 1: Identifying Seat Cushion Inner Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the Velcro and retainer.

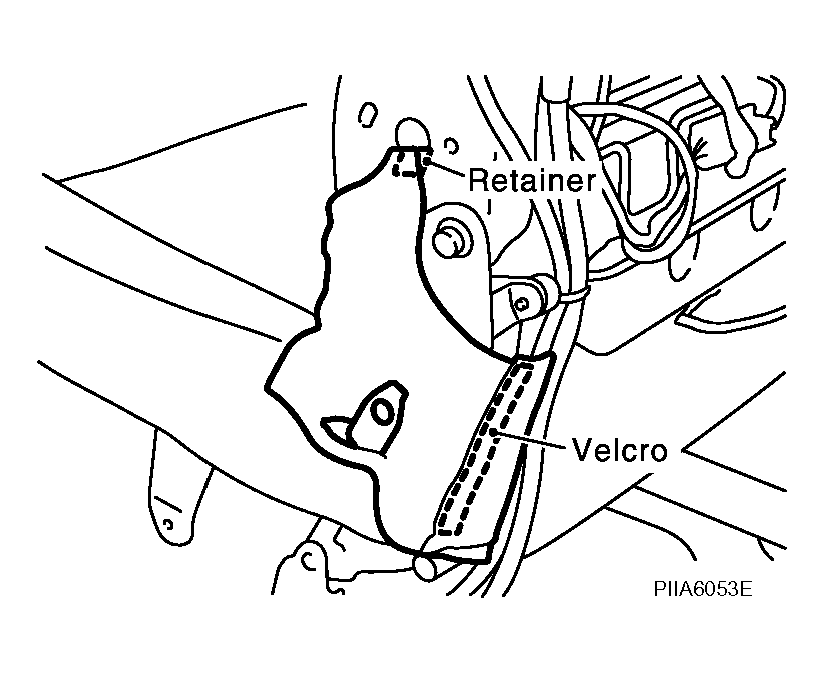

Fig 2: Identifying Velcro And Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the seat harness connector.
Remove the seatback frame.
Remove the reclining device assembly.

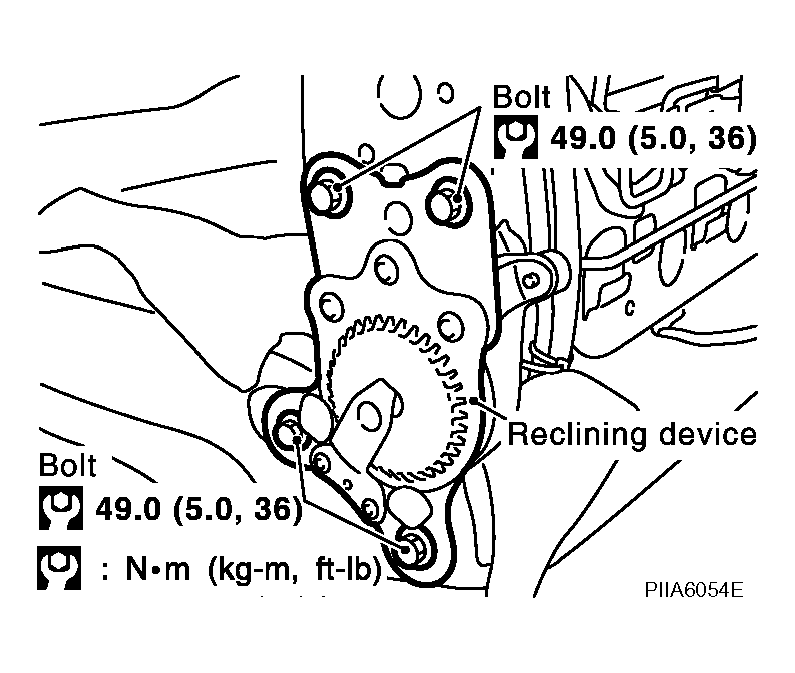

Fig 3: Reclining Device Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retainer and clip.

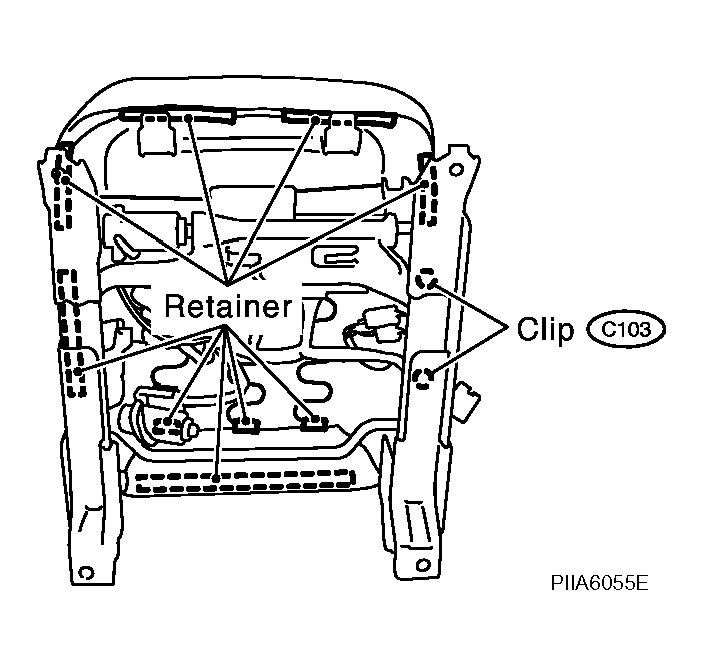

Fig 4: Identifying Retainer And Clip
Courtesy of NISSAN MOTOR CO., U.S.A.
After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and the seat cushion heater unit.
