Removal and Installation NATS Antenna Amp.: Removal

CAUTION: Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
  1. Remove the steering column cover. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the NATS antenna amp. connect, remove the screw and NATS antenna amp.

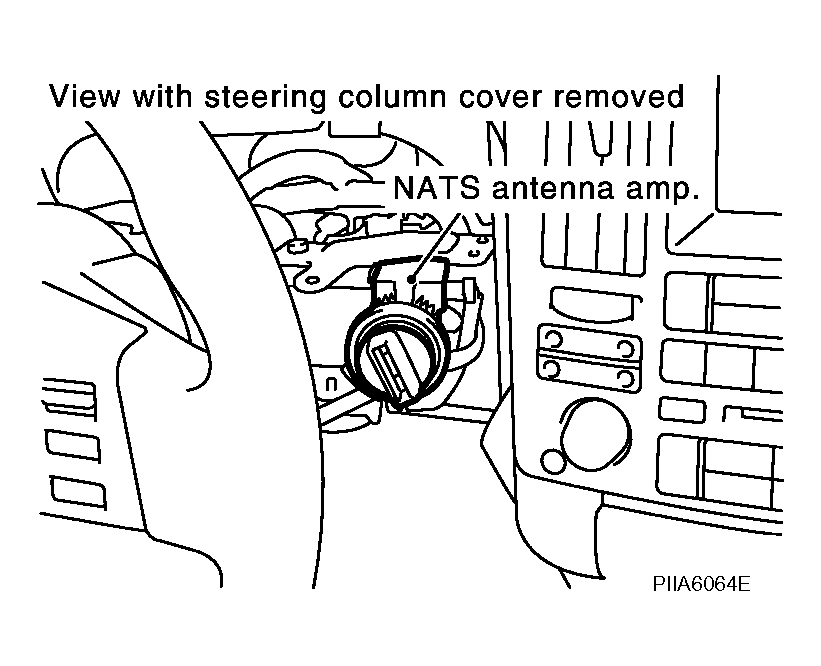

    Fig 1: Identifying Screw And Nats Antenna Amp
    G04077251Courtesy of NISSAN MOTOR CO., U.S.A.
