Component Parts and Harness Connector Location

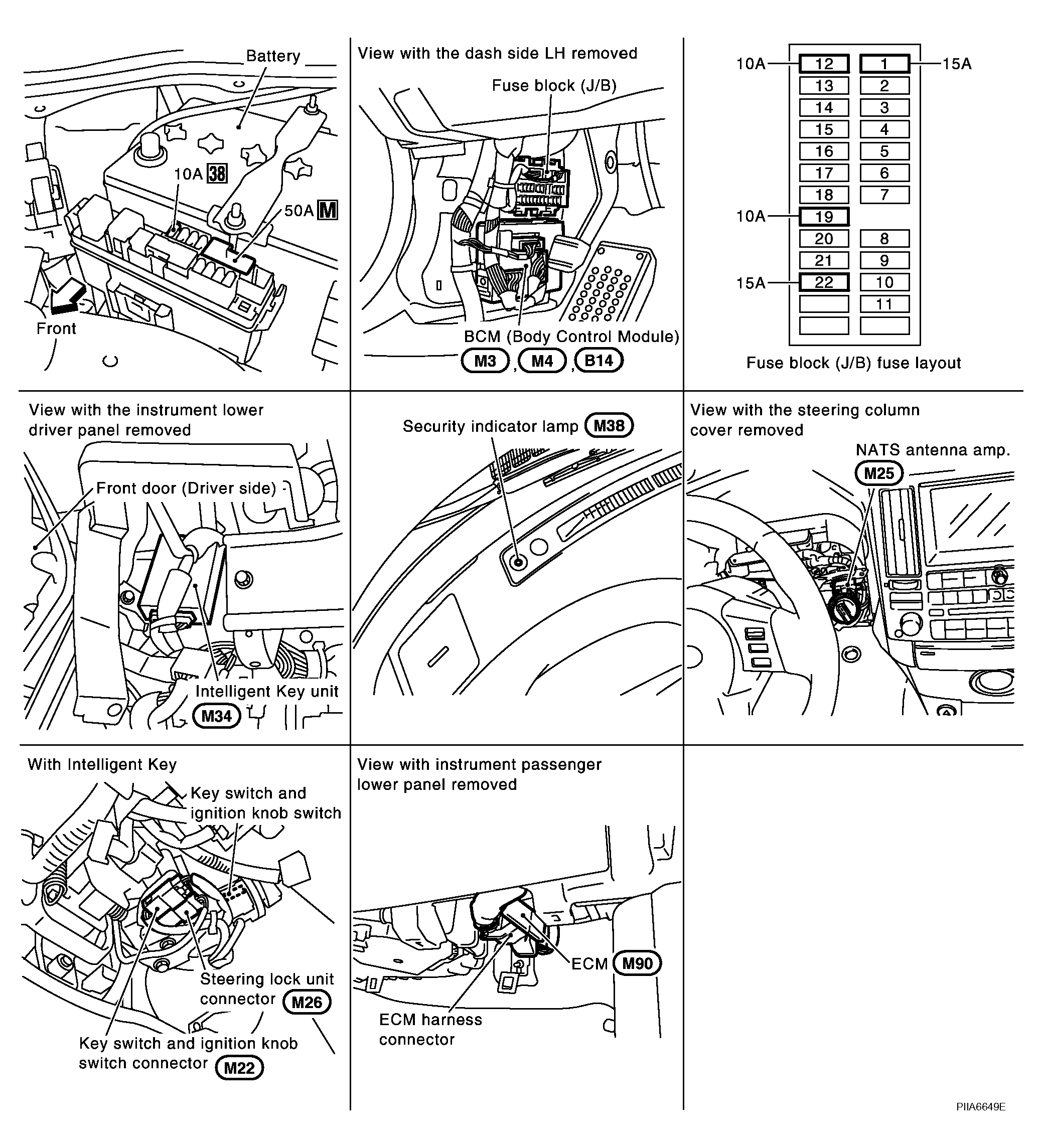

Fig 1: Identifying Component And Harness Connector Location

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If customer reports a "NO START" condition, request ALL ignition key (without intelligent key system) or mechanical key (with intelligent key system) to be brought to the dealer to check for a NATS malfunction.
