Removal and Installation of Rear Wiper Arm, Adjustment of Wiper Arms Stop Location: Installation
- Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (auto stop).

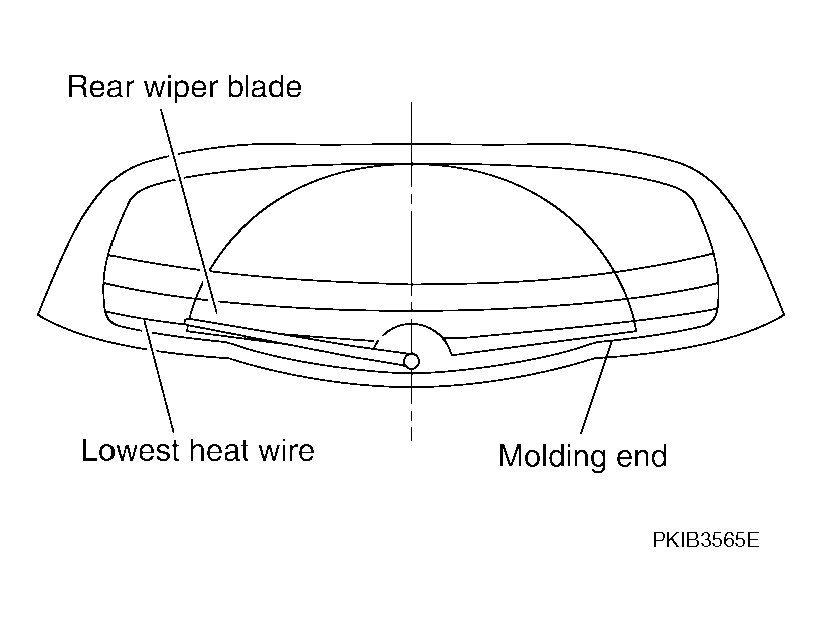

- Lift the blade up and then set it down onto glass surface to set the blade center to clearance "L" immediately before tightening nut.
- Eject washer fluid. Turn on wiper switch to operate wiper motor and then turn it "OFF".
- Ensure that wiper blades stop within clearance "L".
Clearance "L" : 45 - 60 mm (1.77 - 2.36 in)
- Tighten wiper arm nuts to specified torque.
Rear wiper arm nut : 5.0 N.m (0.51 kg-m, 44 in-lb)
- Installation is the reverse order of removal.
