Wiring Diagram - WIPER -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

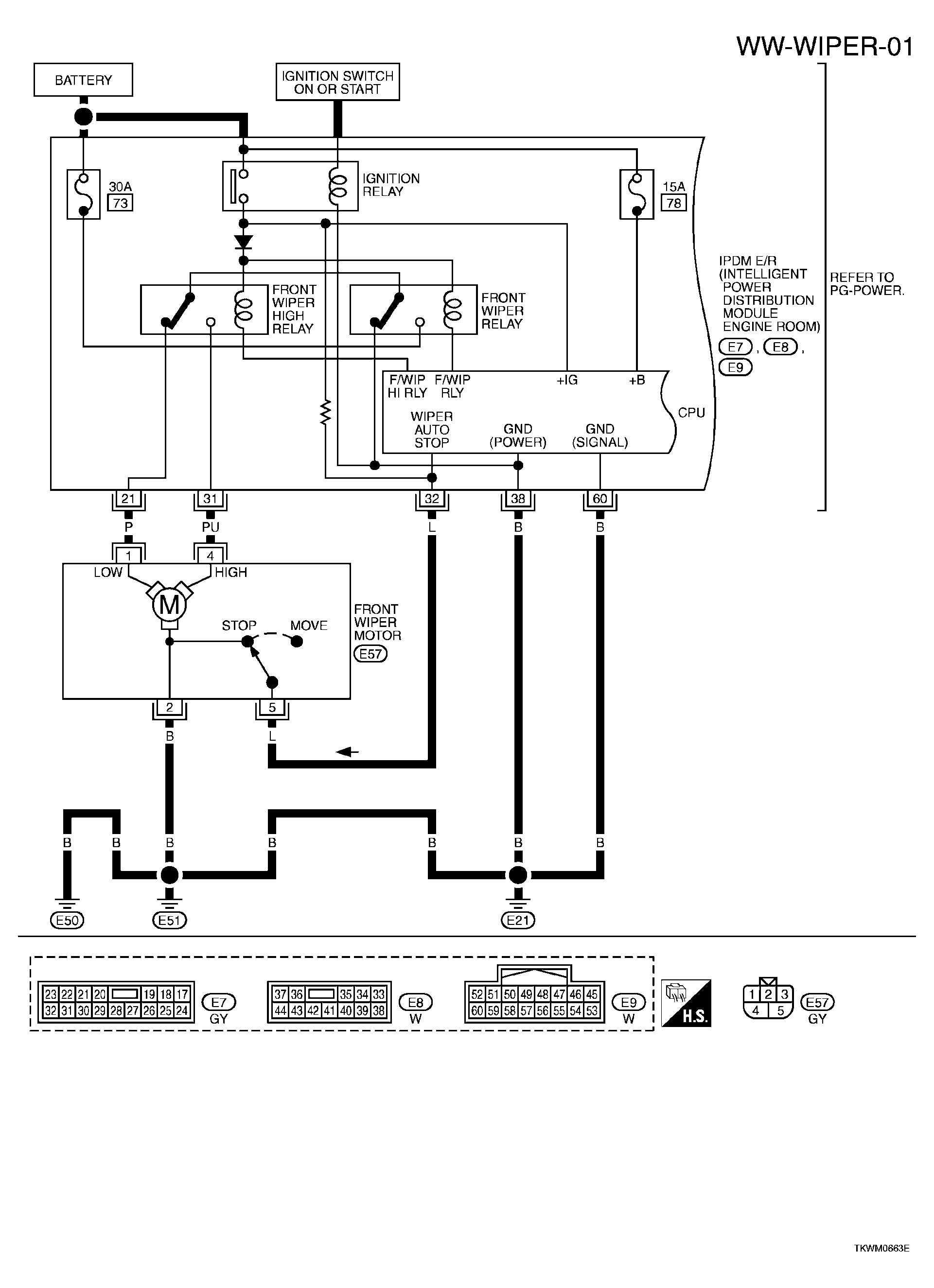

Fig 1: WW-WIPER-01 - Wiring Diagram
G04078664Courtesy of NISSAN MOTOR CO., U.S.A.

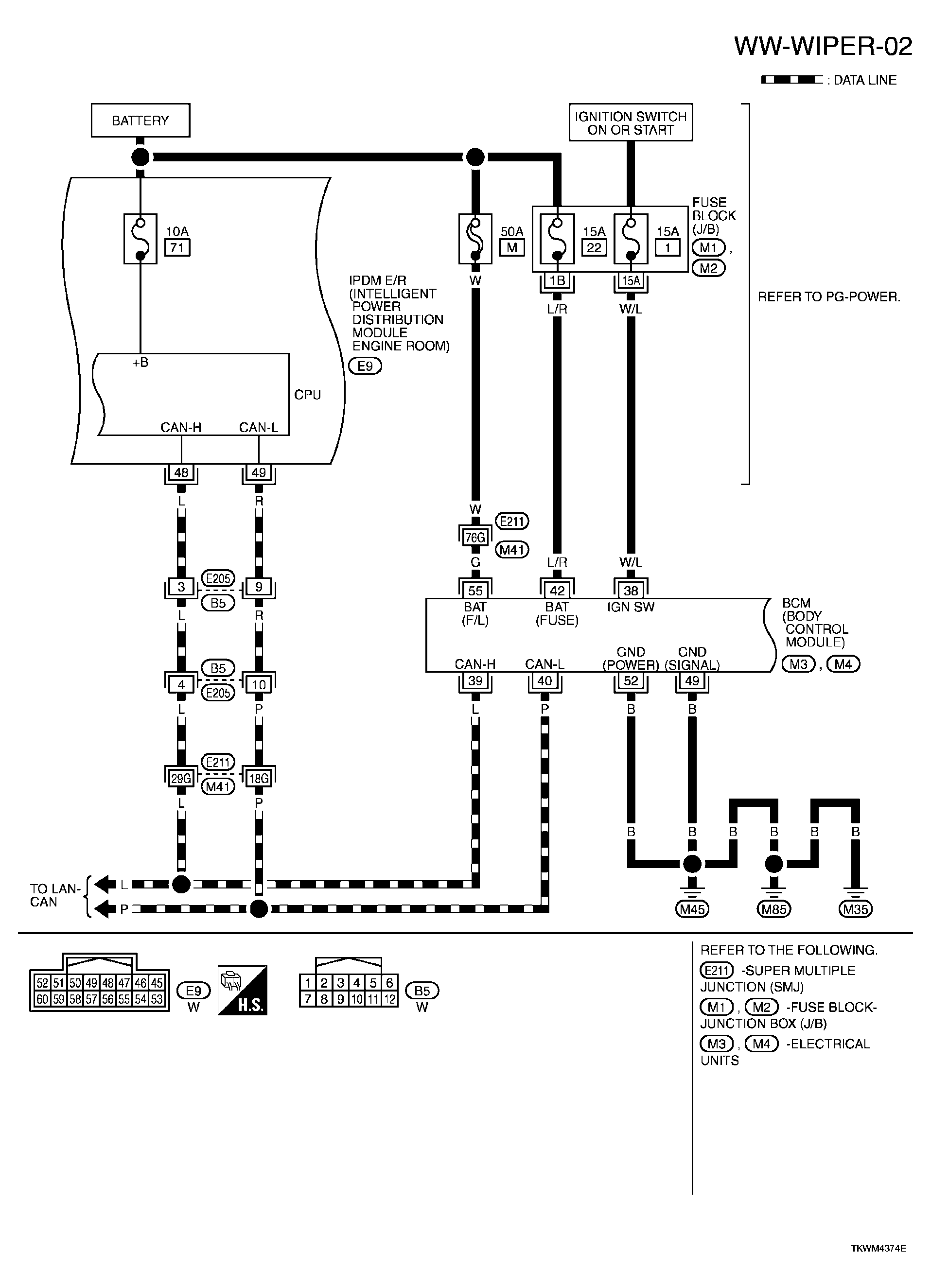

Fig 2: WW-WIPER-02 - Wiring Diagram
G04078665Courtesy of NISSAN MOTOR CO., U.S.A.

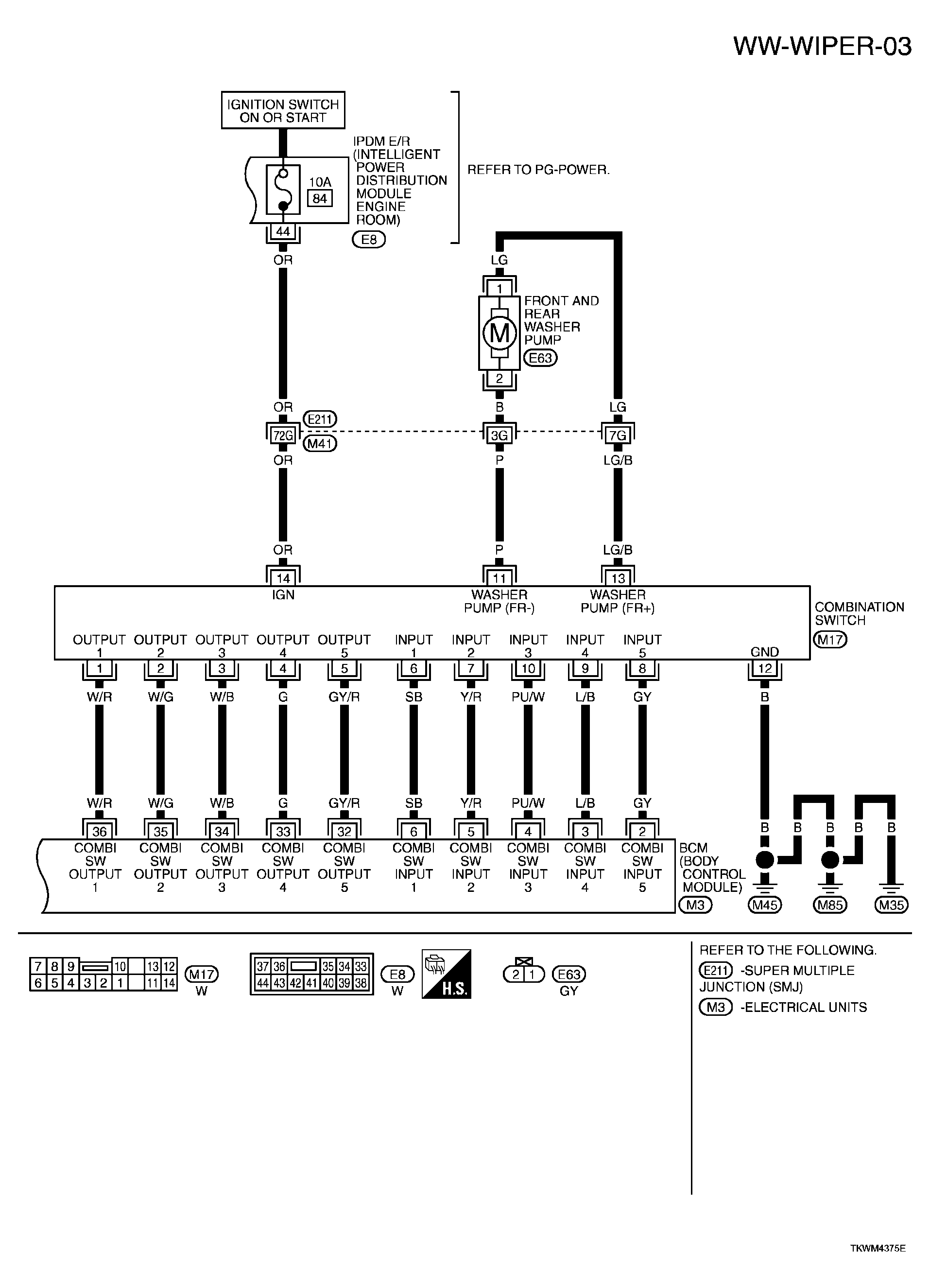

Fig 3: WW-WIPER-03 - Wiring Diagram
G04078666Courtesy of NISSAN MOTOR CO., U.S.A.
