Wiring Diagram - SEAT -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

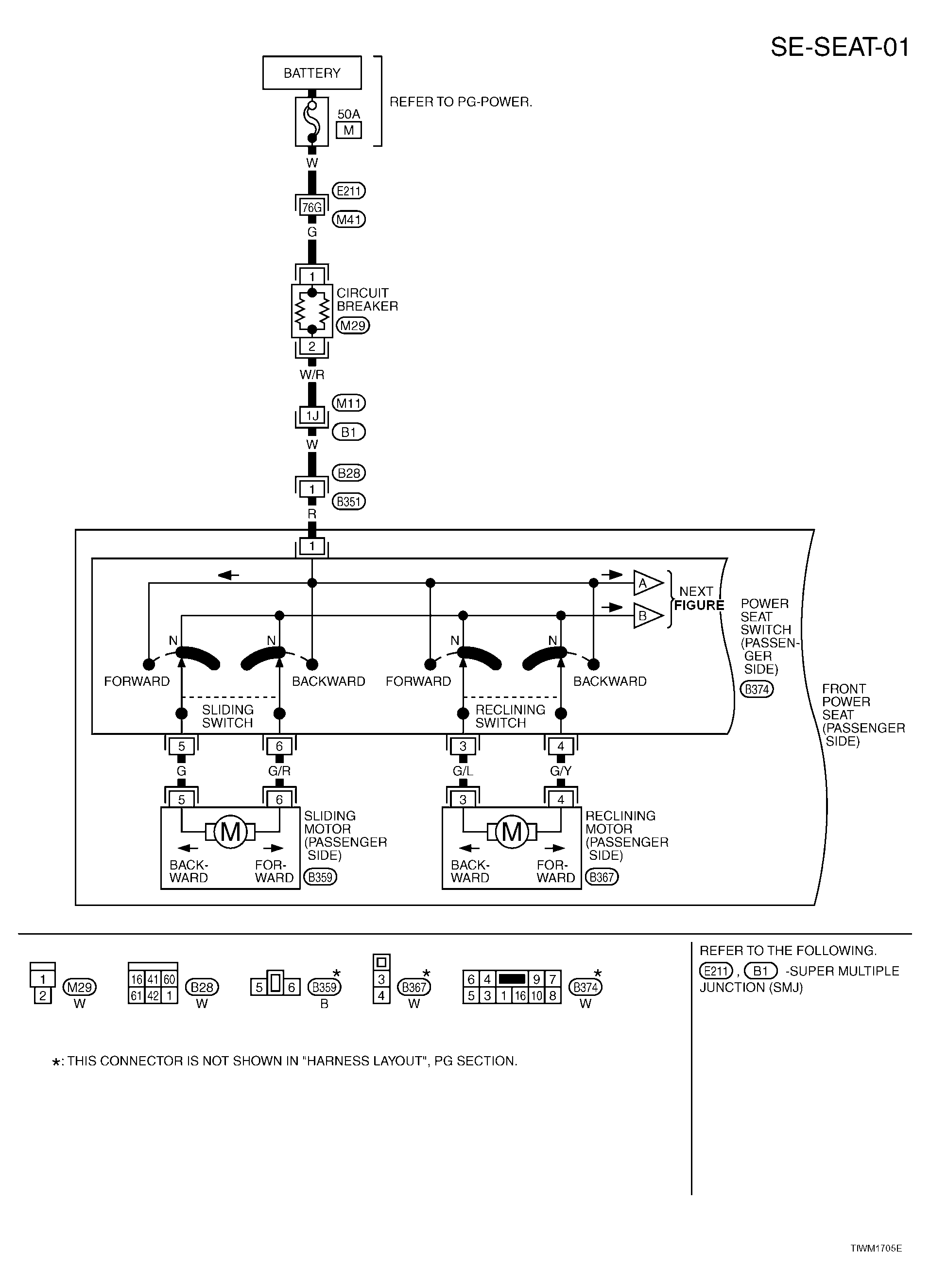

Fig 1: SE-SEAT-01 - Wiring Diagram
G04077762Courtesy of NISSAN MOTOR CO., U.S.A.

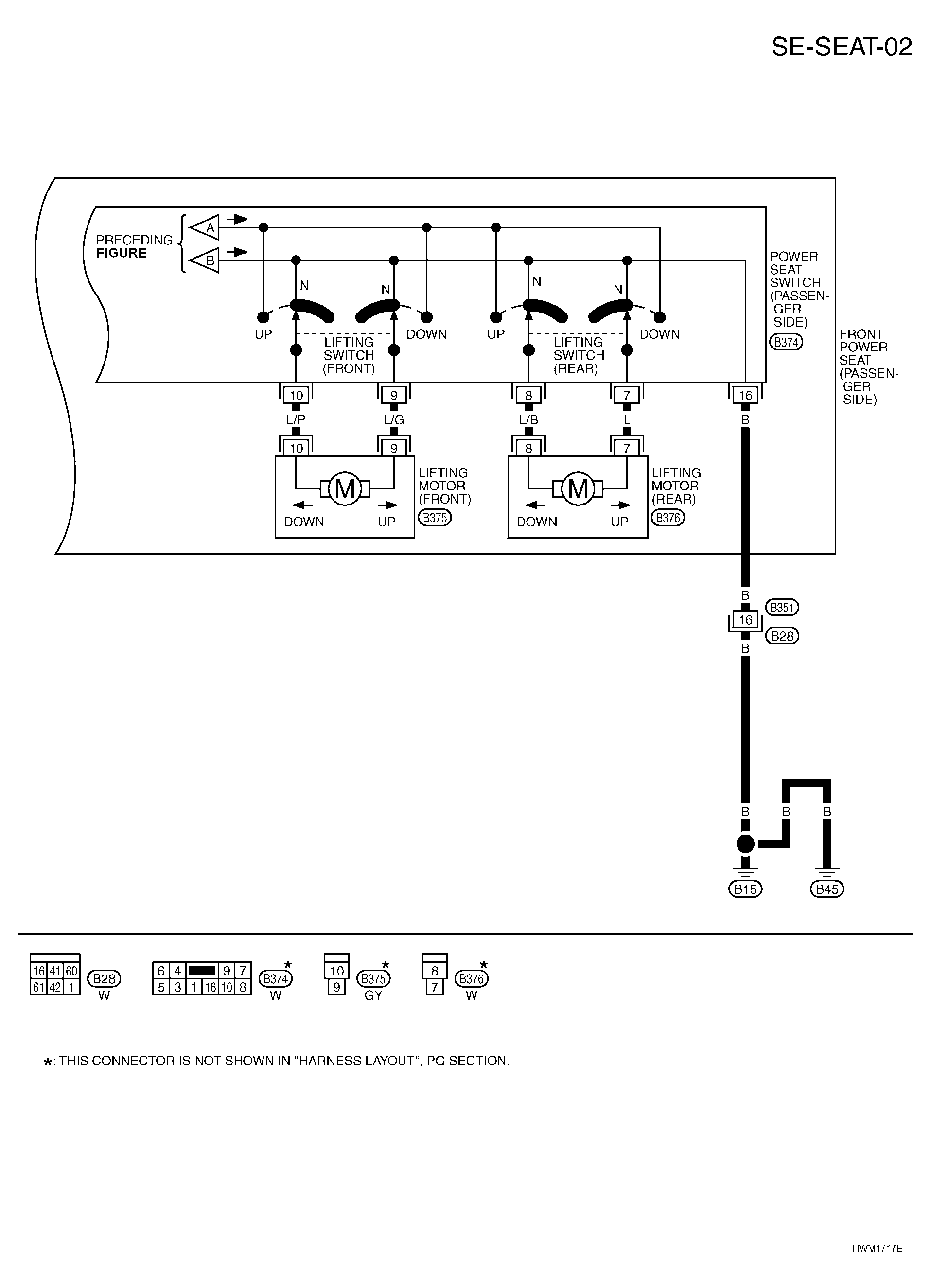

Fig 2: SE-SEAT-02 - Wiring Diagram
G04077763Courtesy of NISSAN MOTOR CO., U.S.A.
