Heated Seat: Description

When handling seat, be extremely careful not to scratch heating unit.
To replace heating unit, seat trim and pad should be separated.
Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.

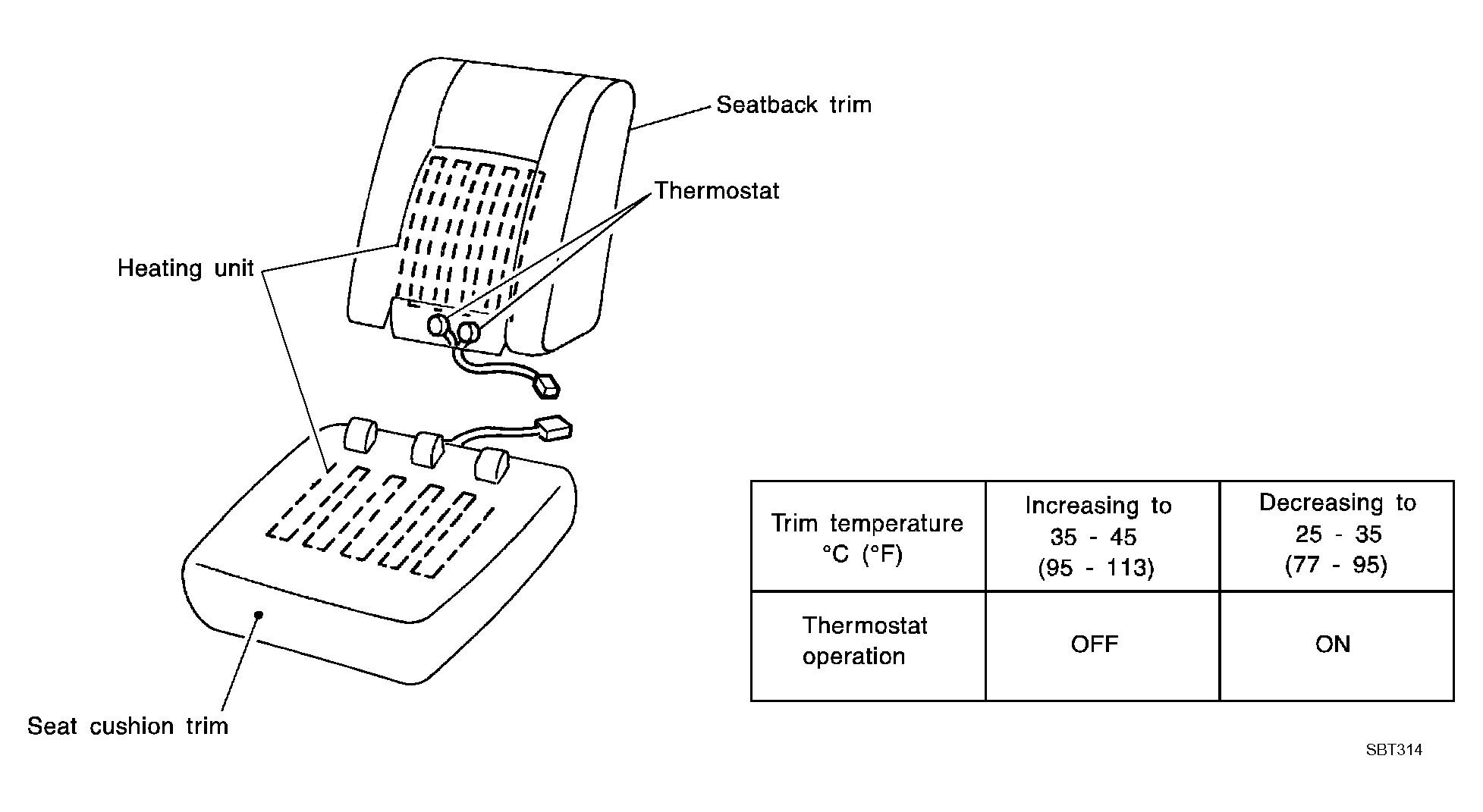

Fig 1: Identifying Heated Seat
Courtesy of NISSAN MOTOR CO., U.S.A.
