Removal Of Seatback Trim And Pad

Remove the seatback garnish.

Fig 1: Identifying Seatback Garnish
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retainer.

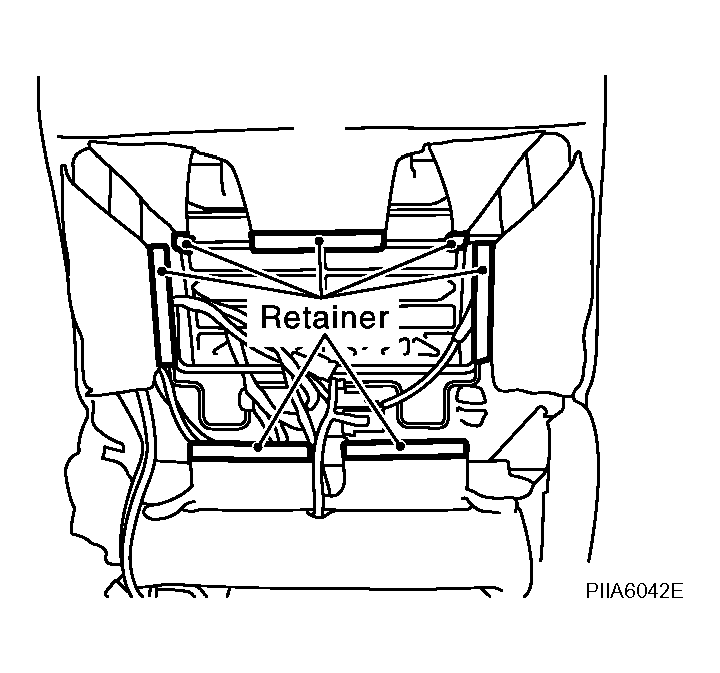

Fig 2: Identifying Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the stay securing the inner cloth.

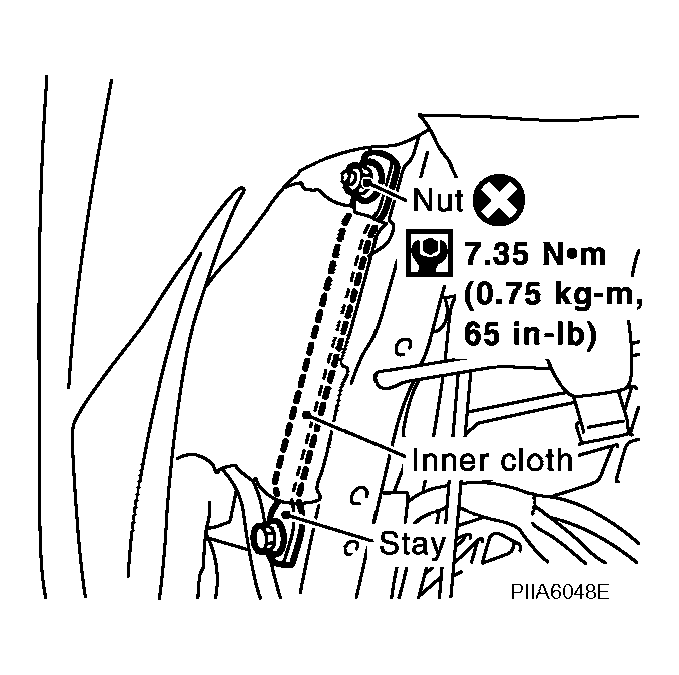

Fig 3: Stay Securing Inner Cloth With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the headrest.
Remove the headrest holder.
From the back of the seatback, press the headrest holder tab of the stay pipe hole to disengage. Then pull the headrest holder up to remove.

NOTE: Before installing the headrest holder, check its orientation (front, rear, left and right).

Fig 4: Identifying Headrest Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the heated seat connector.

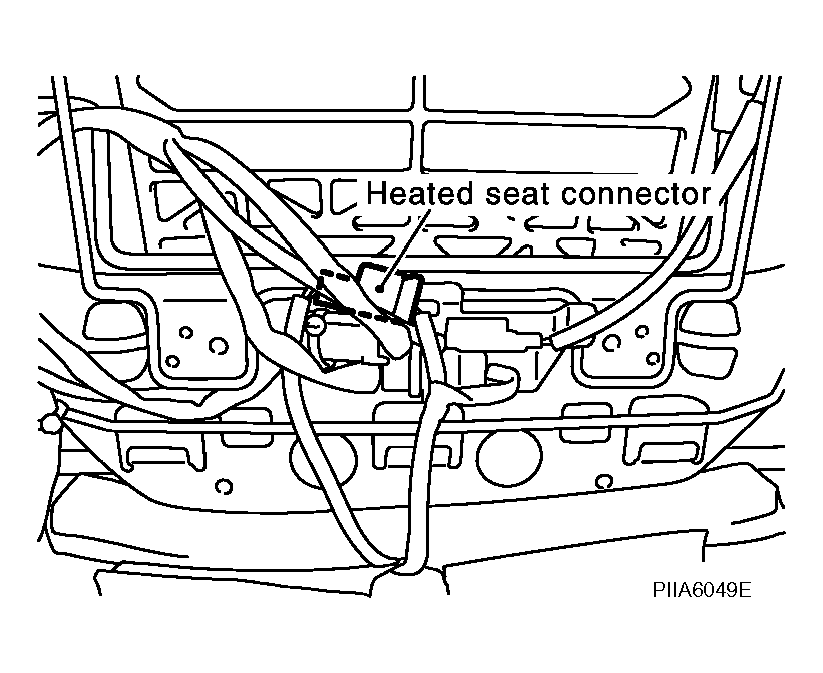

Fig 5: Identifying Heated Seat Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
After removing the seatback trim and pad, remove the hog rings to separate the trim, pad, and seatback heater unit.
