Wiring Diagram - AUT/DP -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: SE-AUT/DP-01 - Wiring Diagram

G04077605

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: SE-AUT/DP-02 - Wiring Diagram

G04077606

Courtesy of NISSAN MOTOR CO., U.S.A.

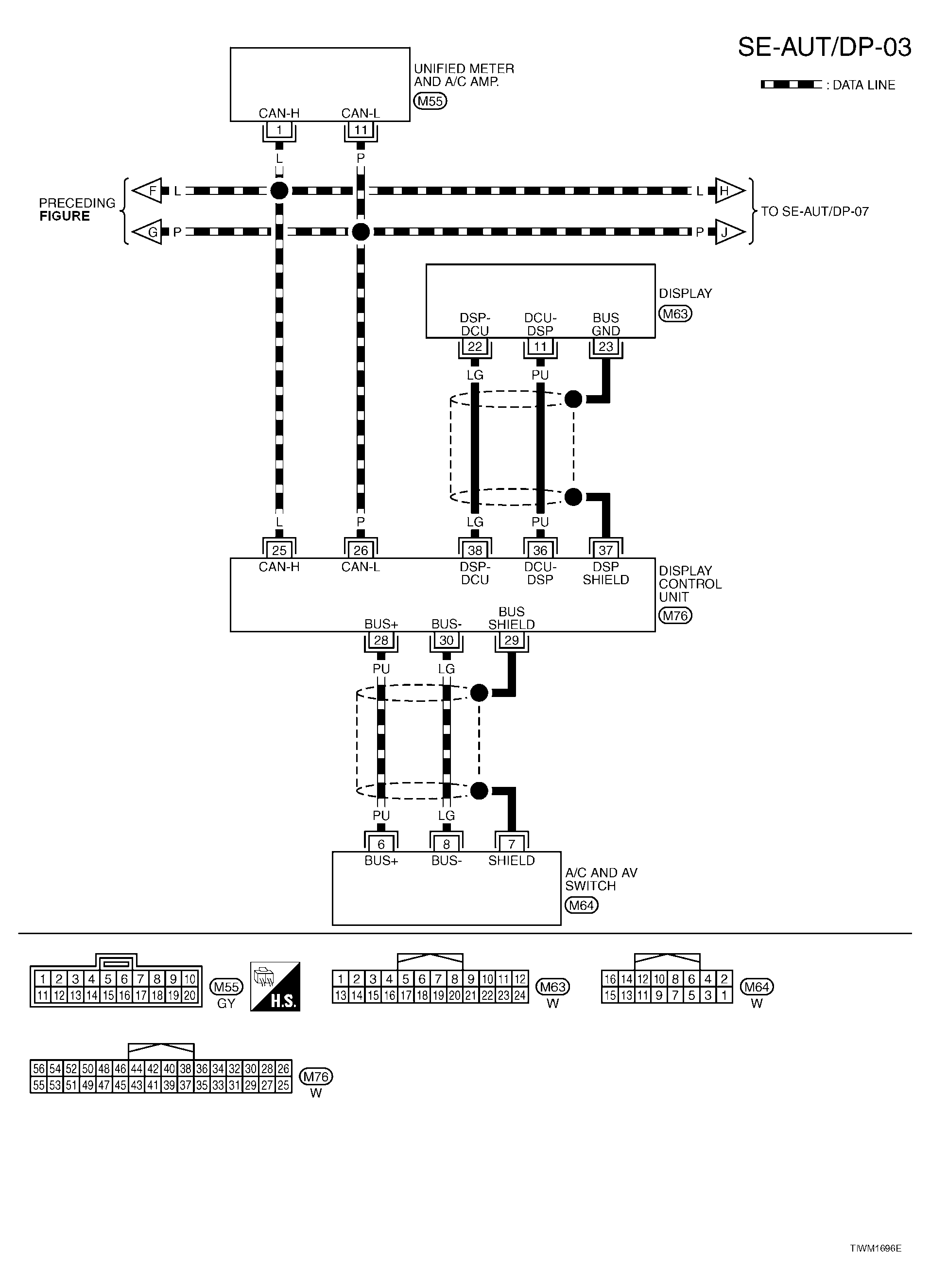

Fig 3: SE-AUT/DP-03 - Wiring Diagram

G04077607

Courtesy of NISSAN MOTOR CO., U.S.A.

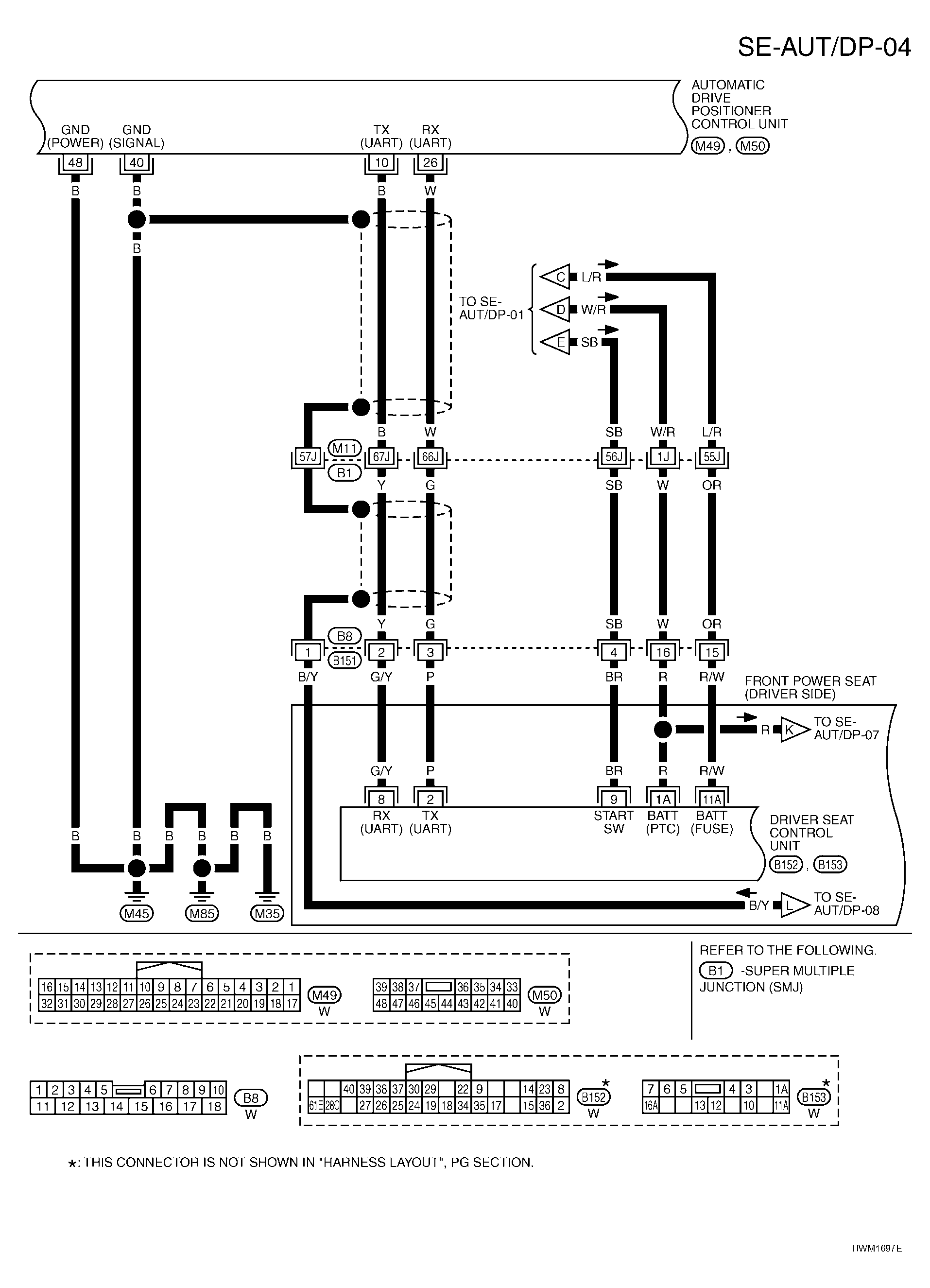

Fig 4: SE-AUT/DP-04 - Wiring Diagram

G04077608

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: SE-AUT/DP-05 - Wiring Diagram

G04077609

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: SE-AUT/DP-06 - Wiring Diagram

G04077610

Courtesy of NISSAN MOTOR CO., U.S.A.

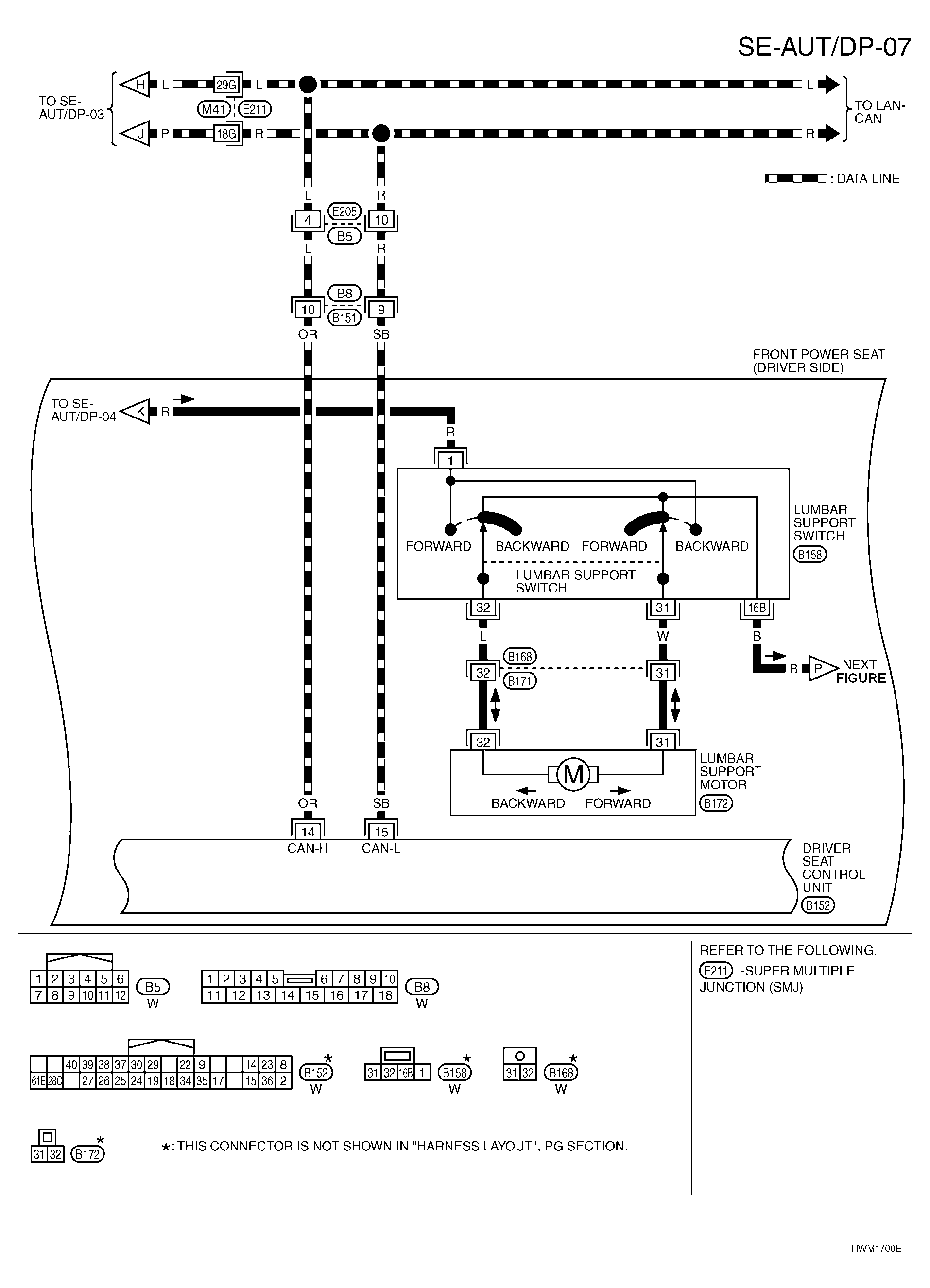

Fig 7: SE-AUT/DP-07 - Wiring Diagram

G04077611

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: SE-AUT/DP-08 - Wiring Diagram

G04077612

Courtesy of NISSAN MOTOR CO., U.S.A.

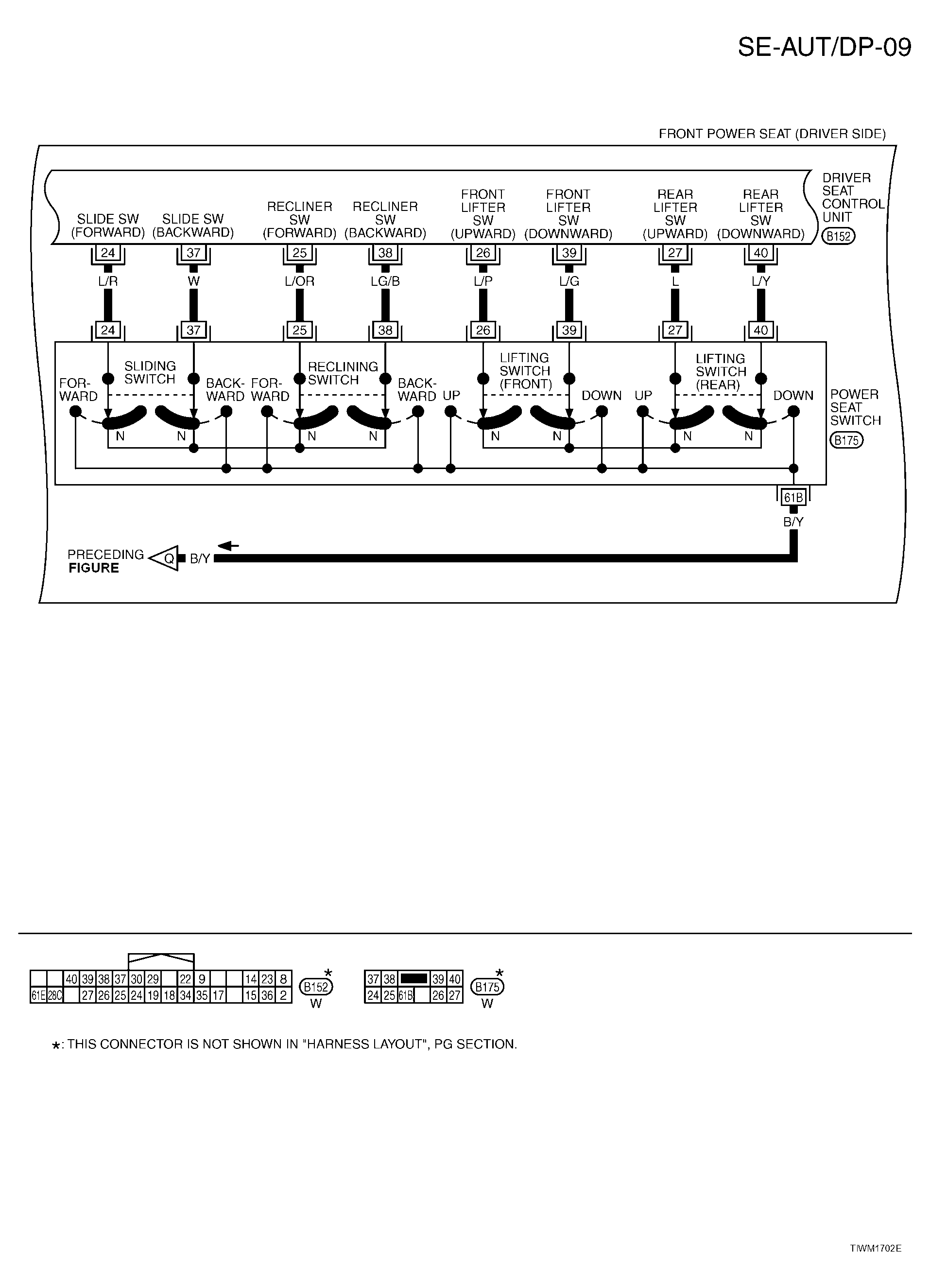

Fig 9: SE-AUT/DP-09 - Wiring Diagram

G04077613

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: SE-AUT/DP-10 - Wiring Diagram

G04077614

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: SE-AUT/DP-11 - Wiring Diagram

G04077615

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: SE-AUT/DP-12 - Wiring Diagram

G04077616

Courtesy of NISSAN MOTOR CO., U.S.A.
