Component Parts and Harness Connector Location
Component Parts and Harness Connector Location

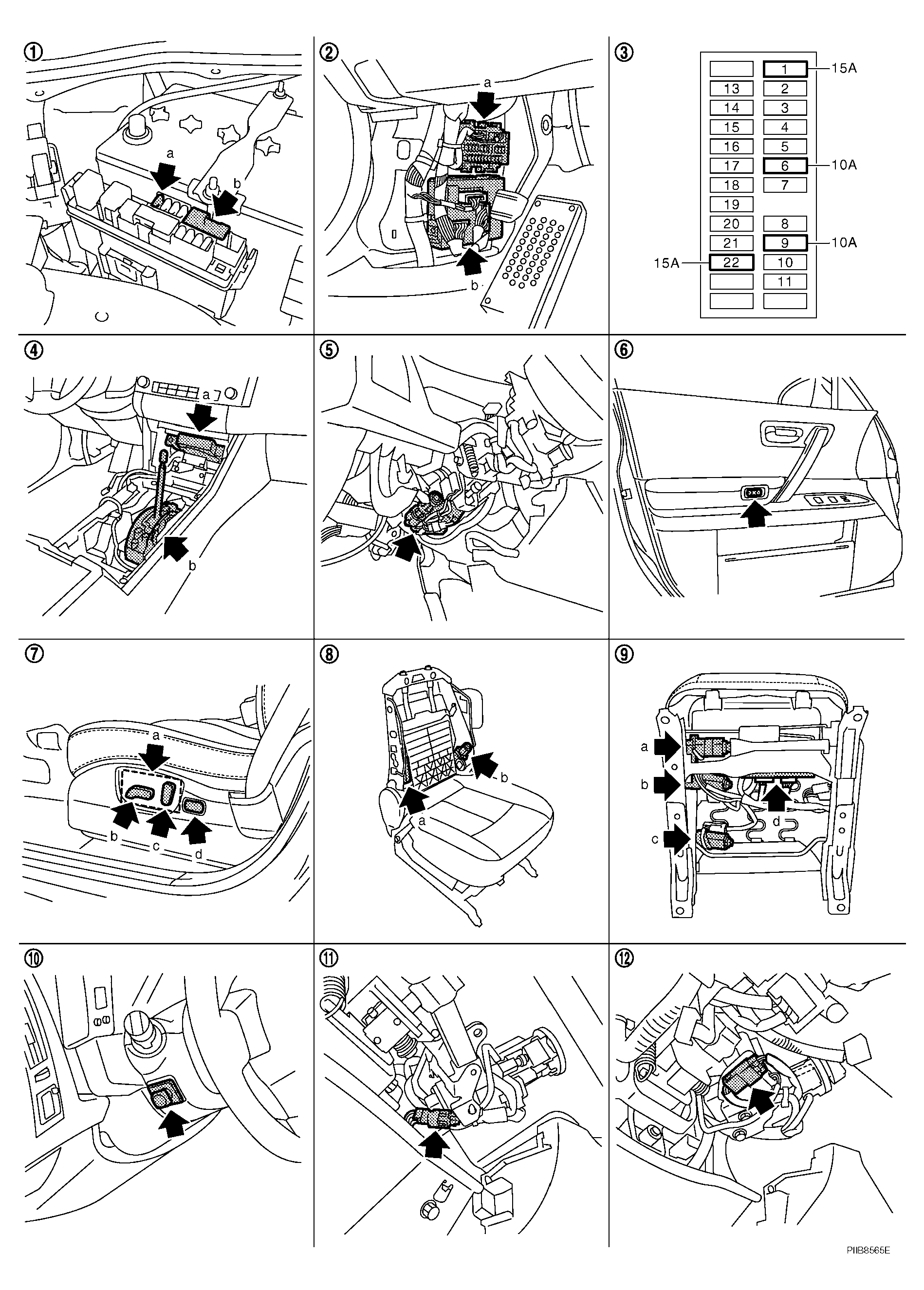

Fig 1: Identifying Component Parts And Harness Connector Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

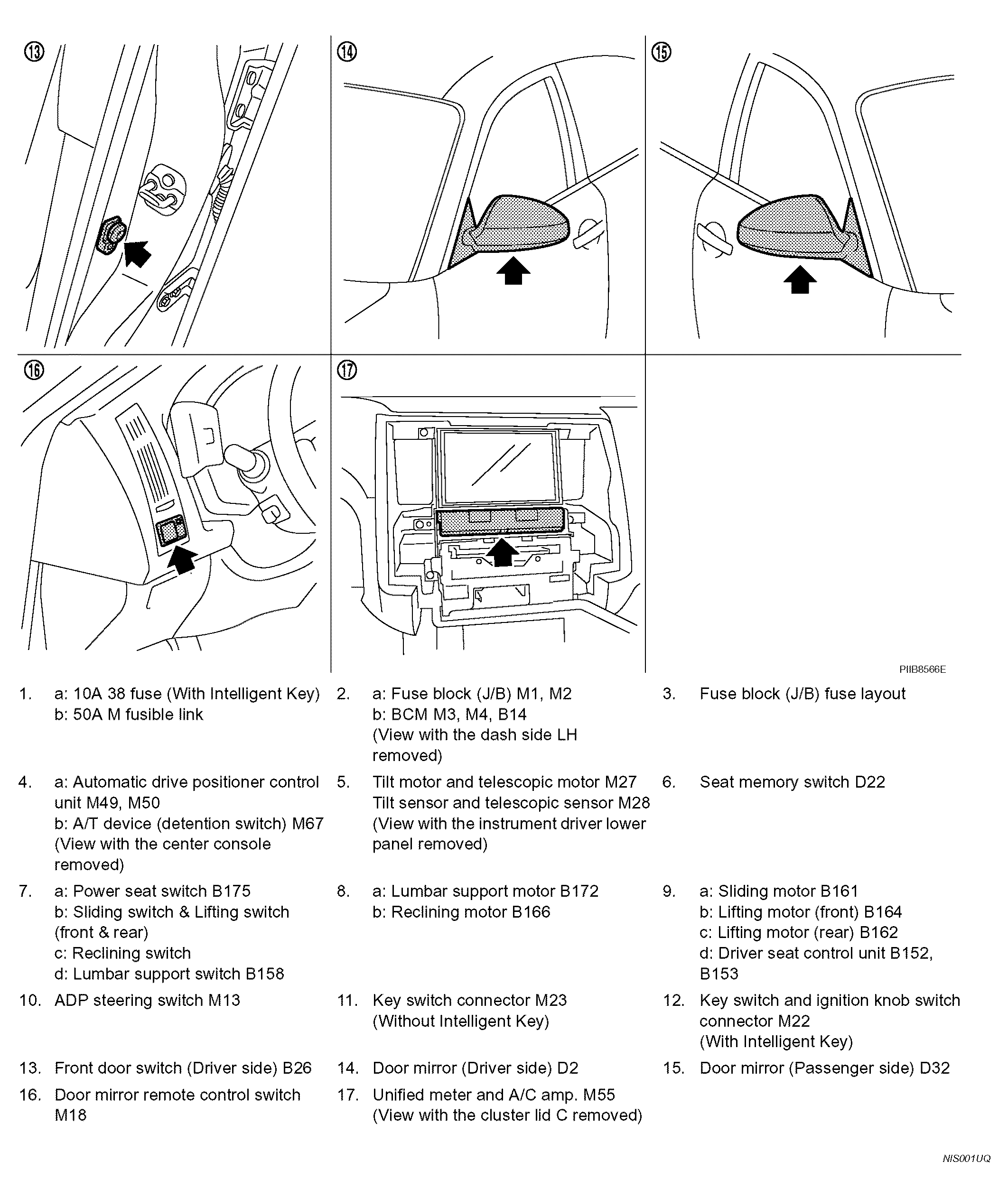

Fig 2: Identifying Component Parts And Harness Connector Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
