Wiring Diagram - STOP/L -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

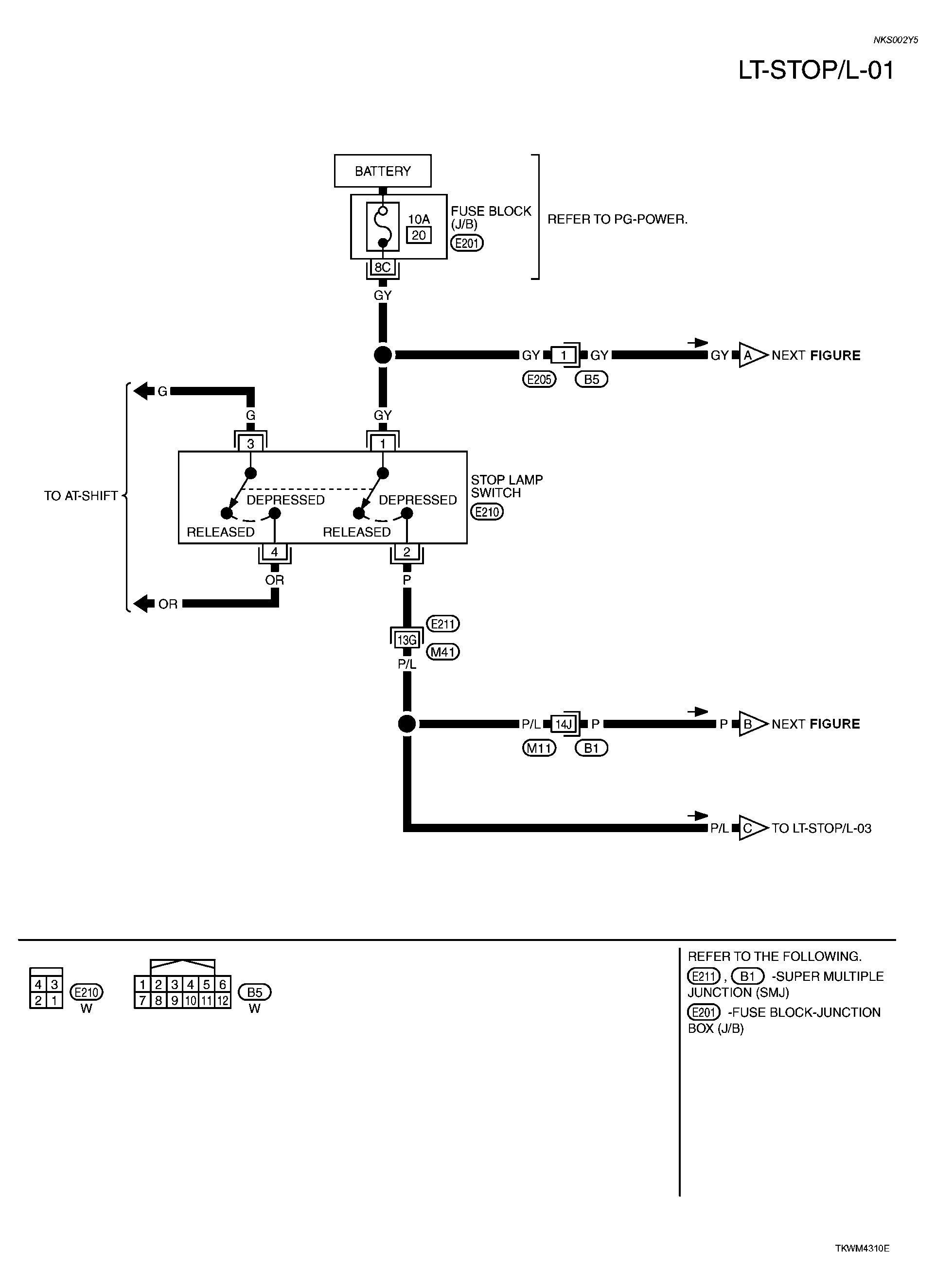

Fig 1: LT-STOP/L-01 - Wiring Diagram
G04078309Courtesy of NISSAN MOTOR CO., U.S.A.

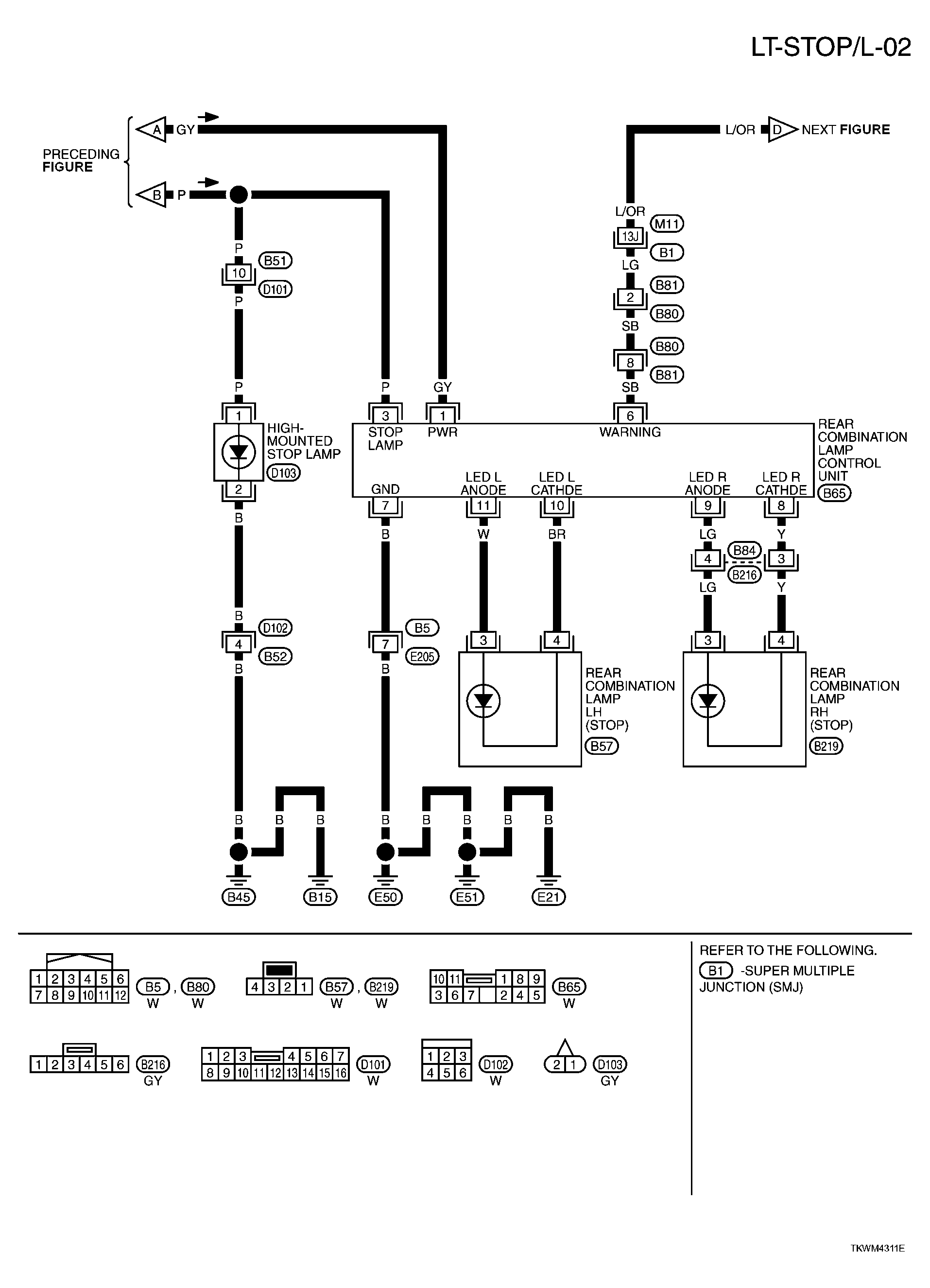

Fig 2: LT-STOP/L-02 - Wiring Diagram
G04078310Courtesy of NISSAN MOTOR CO., U.S.A.

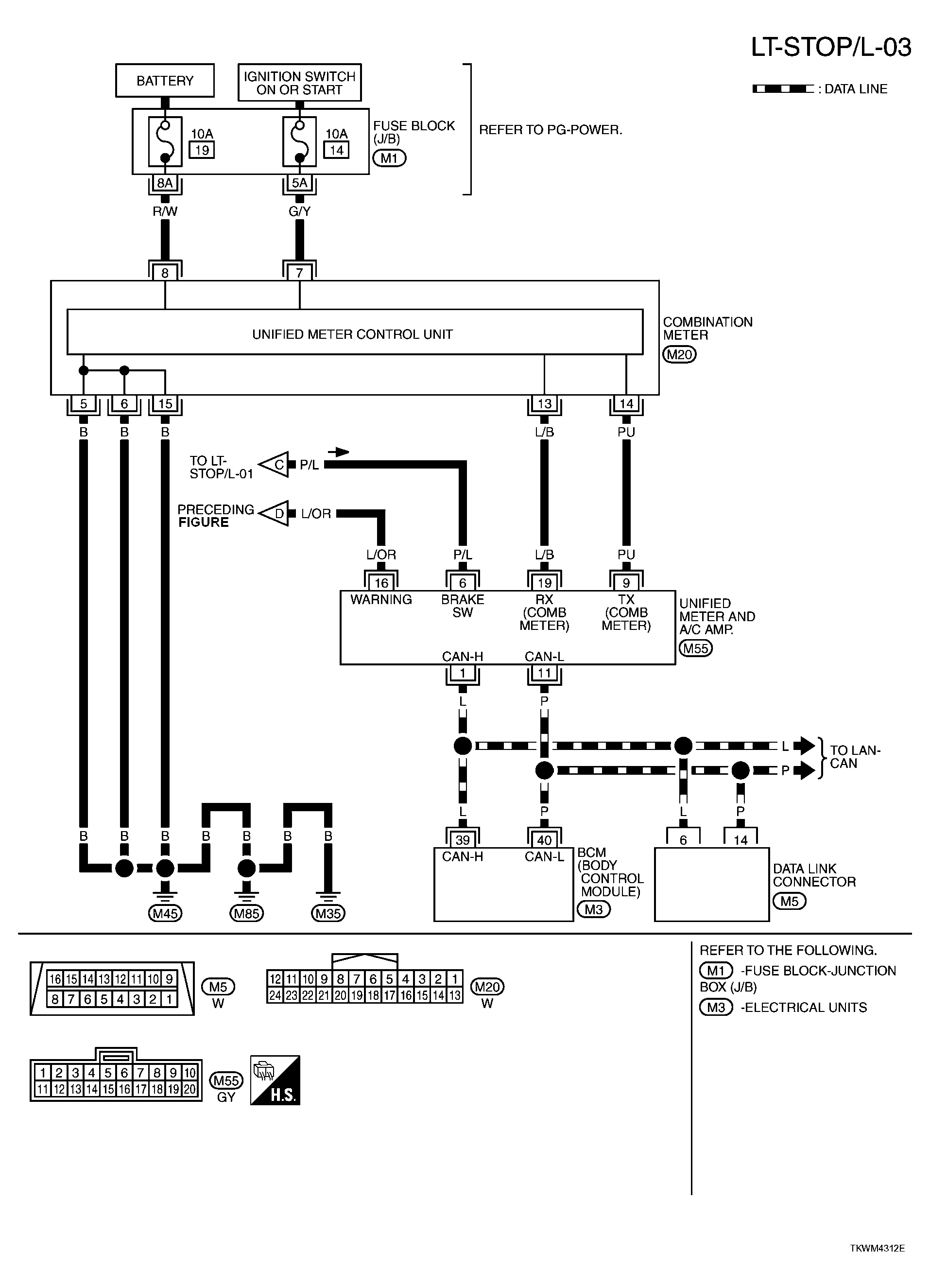

Fig 3: LT-STOP/L-03 - Wiring Diagram
G04078311Courtesy of NISSAN MOTOR CO., U.S.A.
